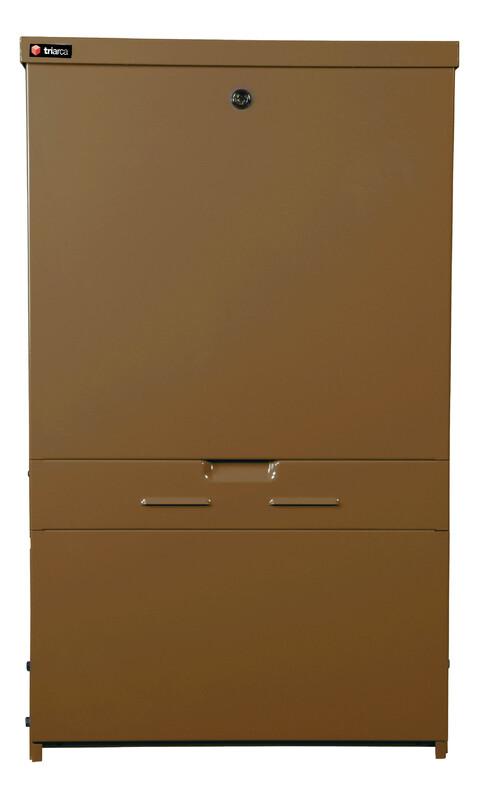

CABLE DISTRIBUTION CABINET KSE P6-607D315-M93 RAL7008
Product code
5404523
Cabinet on stand, width 607 mm and depth 315 mm, cable cabinet and stand with additional corrosion protection in green RAL7008. 630A touch-safe power rail system with 93 modules (1M = 6mm) This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Cable entry cabinet (EC000268)
Number of poles4
Max. cross section connection cable240 mm²
Max. cross section incoming cable240 mm²
Connection typeClamp/busbar
Degree of protection (IP)IP3X
Height850 mm
Width595 mm
Depth300 mm
Product codes
SAPDNE720
STK5404523
PLC5404523
GTIN/EAN5711255991054
Manufacturer part number599105
Vendor material number599105
Basic information
Package measurements (L x W x H)1000 x 315 x 607 mm
Package volume191.205 l
Package weight50 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121108
BrandTRIARCA
VendorTRIARCA A/S
