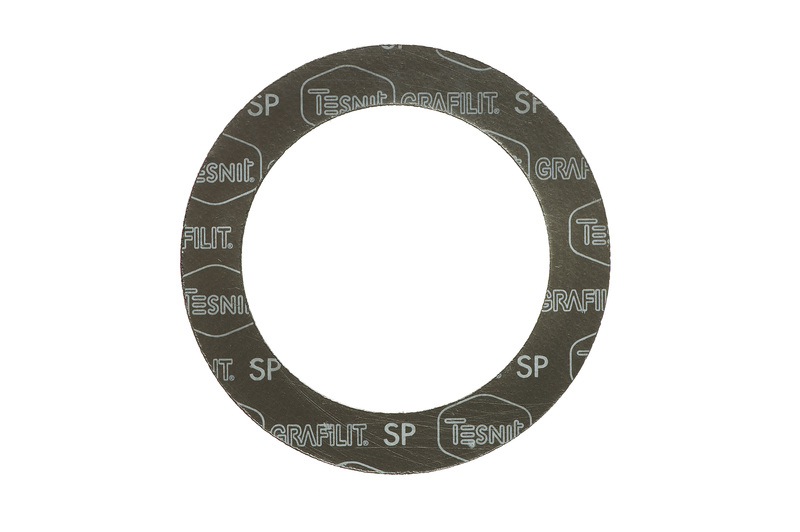

GRAPHITE GASKET GRAFILIT SP DN 400 PN 16 STEAM
Product code
3261390
DN 400 PN 16 Grafilit SP 1,5 mm EN1514-1 IBC, Graphite gasket for high temperature applications, up to 450°C and 40 bar
Graphite seal with AISI 316L reinforcement. The seal is intended for use at high temperatures up to 450 °C and up to 40 bar. Typical media to be sealed include steam, hot oil, hot air, hydrogen gas, and sodium hydroxide. Check chemical compatibility in the attached file below. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Graphite flange gasket (DIN) (EC010704)
Graphite purity99 %
Density1.5 g/cm³
Inlay typePerforated
Flange compression stage (PN)16 - 16
Nominal diameter of flangeDN 400
Thickness1.5 mm
Product codes
SAPCGV876
HPAC3261390
PLC3261390
GTIN/EAN6438056252915
Manufacturer part numberT0000255
Vendor material numberT0000255
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.074 l
Package weight0.032 kg
Base uniteach
Package units5
Package contents–
UNSPSC31201610
BrandTT GASKETS
VendorTAMPEREEN TIIVISTETEOLLISUUS
The country of origin stated by the supplierFinland
