DRAIN UNIT UNIDRAIN 1001 3 WALLFLANGES 800 mm

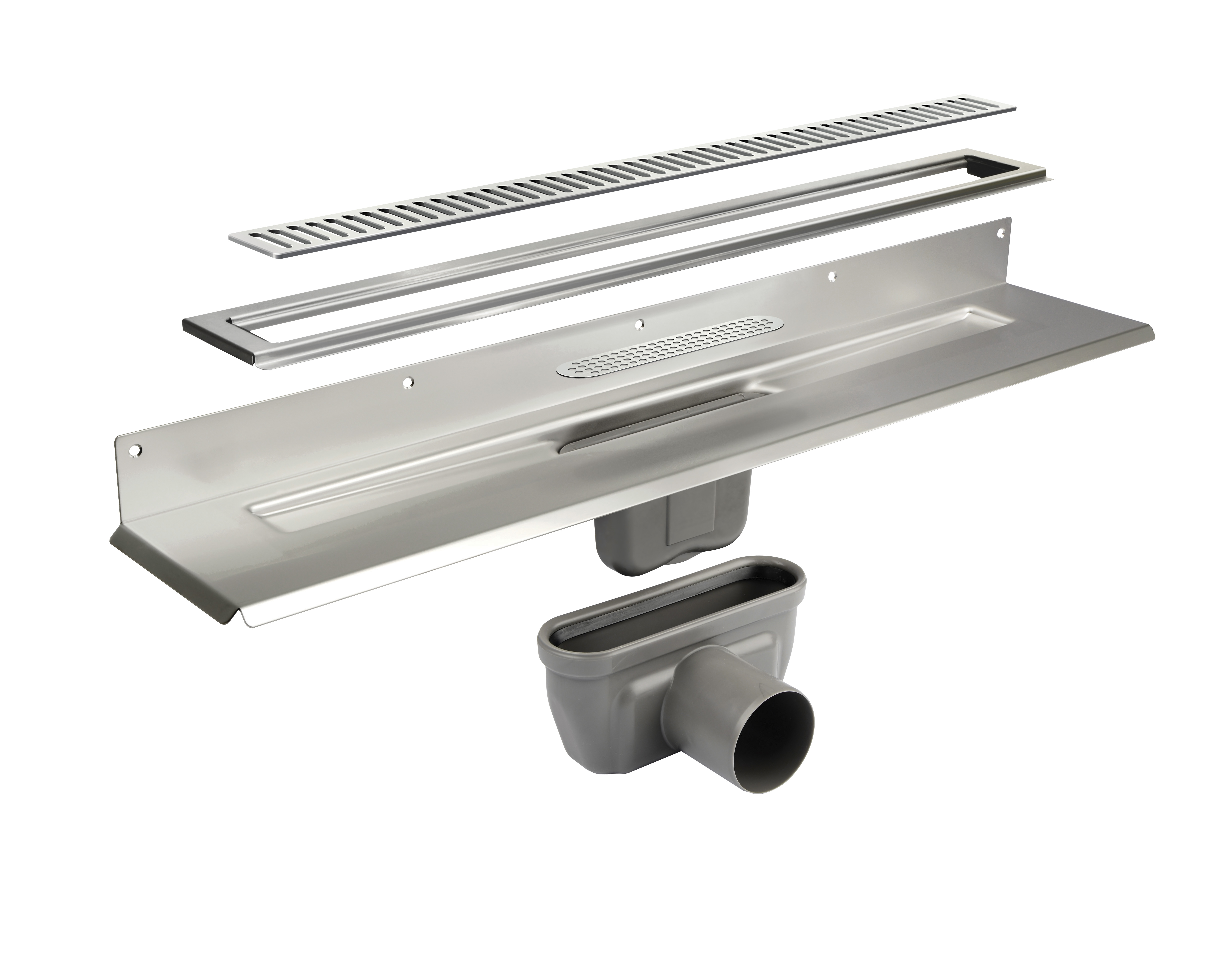

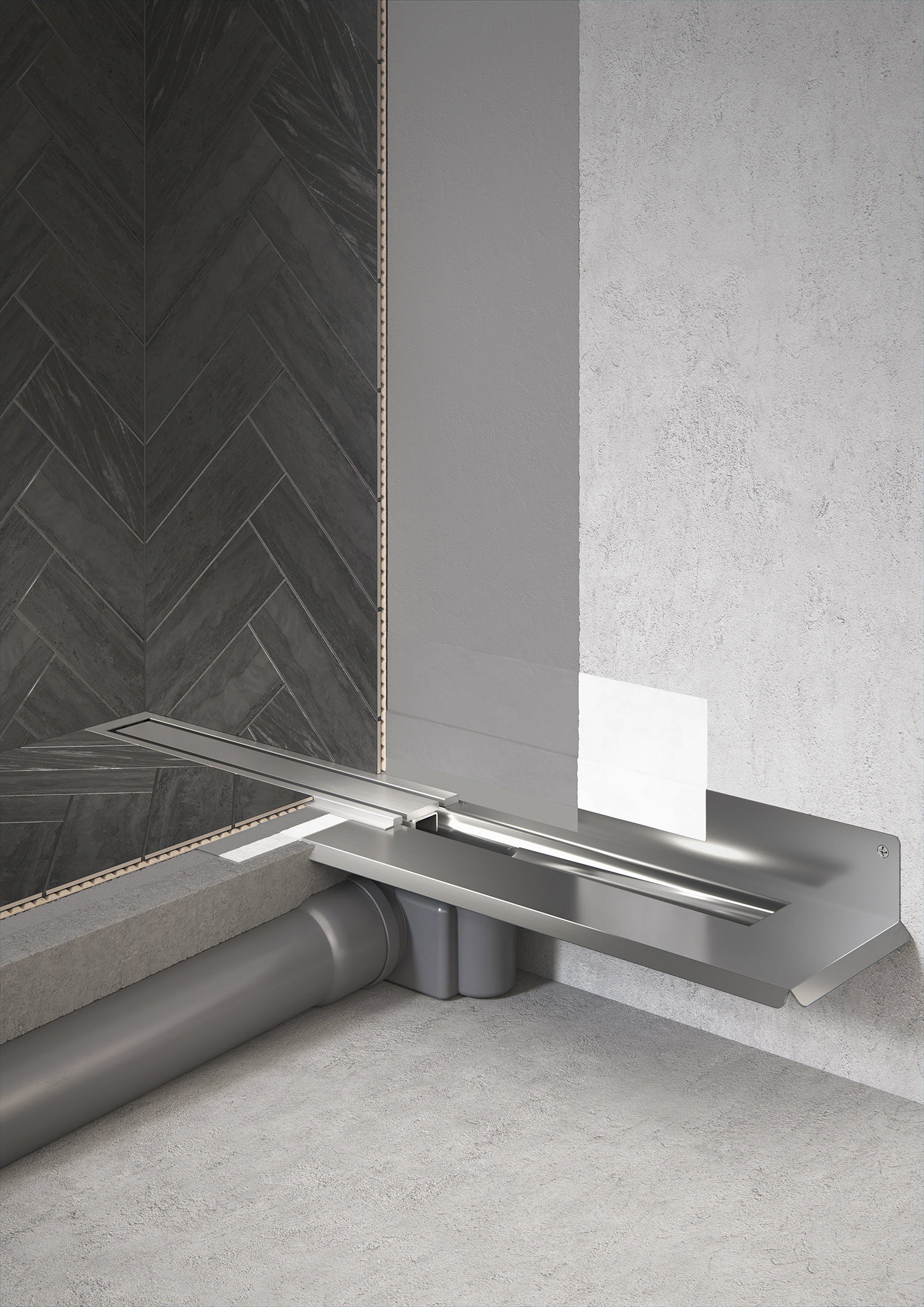

Unidrain is a narrow and stylish linear floor drain that, thanks to its patented steel frame structure, can be securely and moisture-safely mounted to the wall. The drain system consists of four components: the floor drain frame, the wastewater trap, the frame, and the grating/panel. The first two components are installed before pouring the floor, and the last two after waterproofing. The drain is extremely easy to clean thanks to its handle-equipped and removable water trap. The floor drain frame and body are made of stainless steel, and the wastewater trap is made of polypropylene. The Line 1001 floor drain frame has three wall flanges and one floor flange: at the back and on both sides. The frame is installed in a shower area with three fixed walls. The cover can be chosen from two different ranges: classic perforated steel gratings from the ClassicLine range or modern panels from the HighLine range. Features

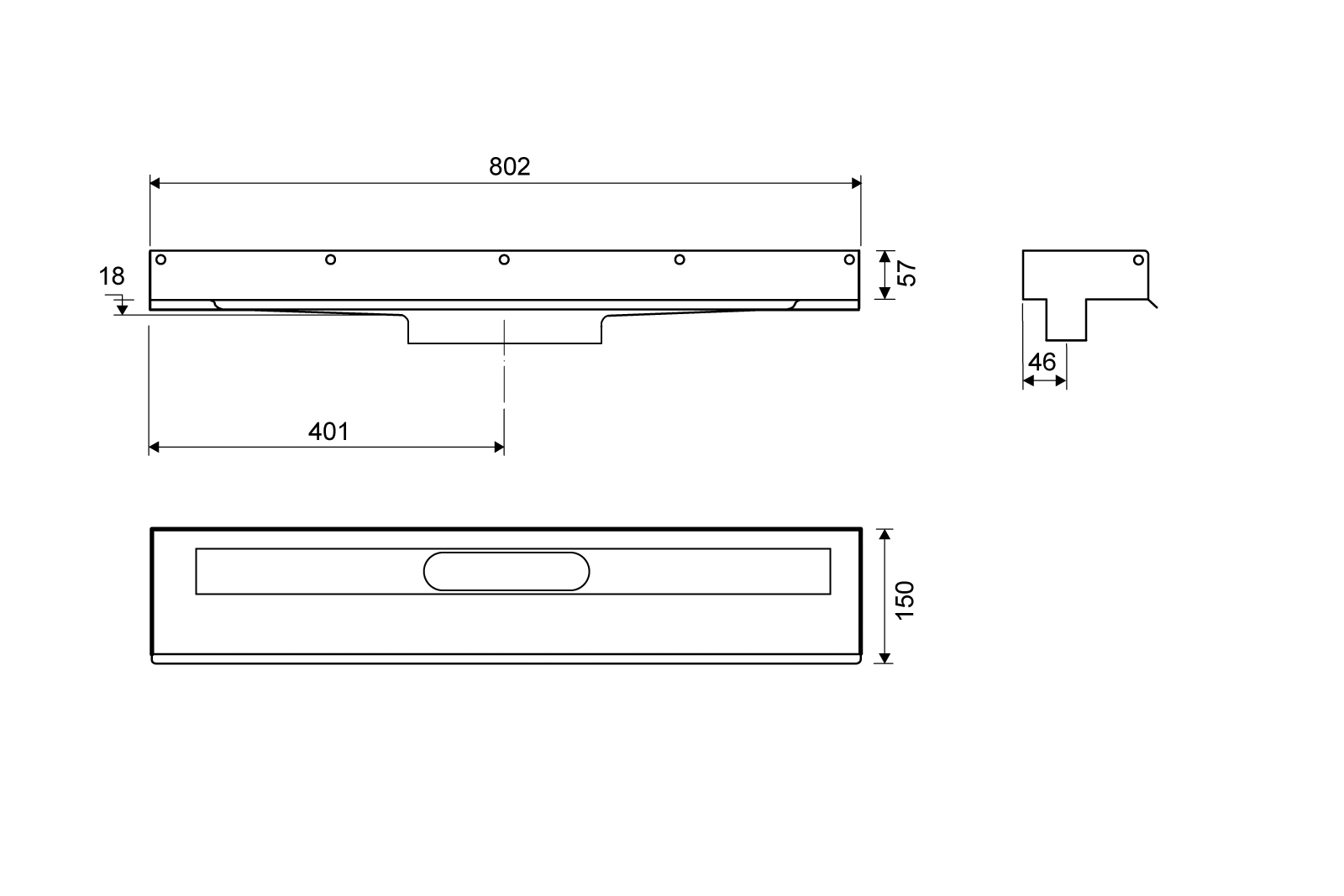

• installation length: 802 mm
• frame: 795 mm
• height: 17 mm
• length model: 800 mm
• model/type: rectangular
• color: gray
• wall flange: back wall/left/right
• material: stainless steel

This product description is an automated translation of the original Finnish description.
