DRAIN UNIT UNIDRAIN 1002 2 WALLFLANGES 1000mm

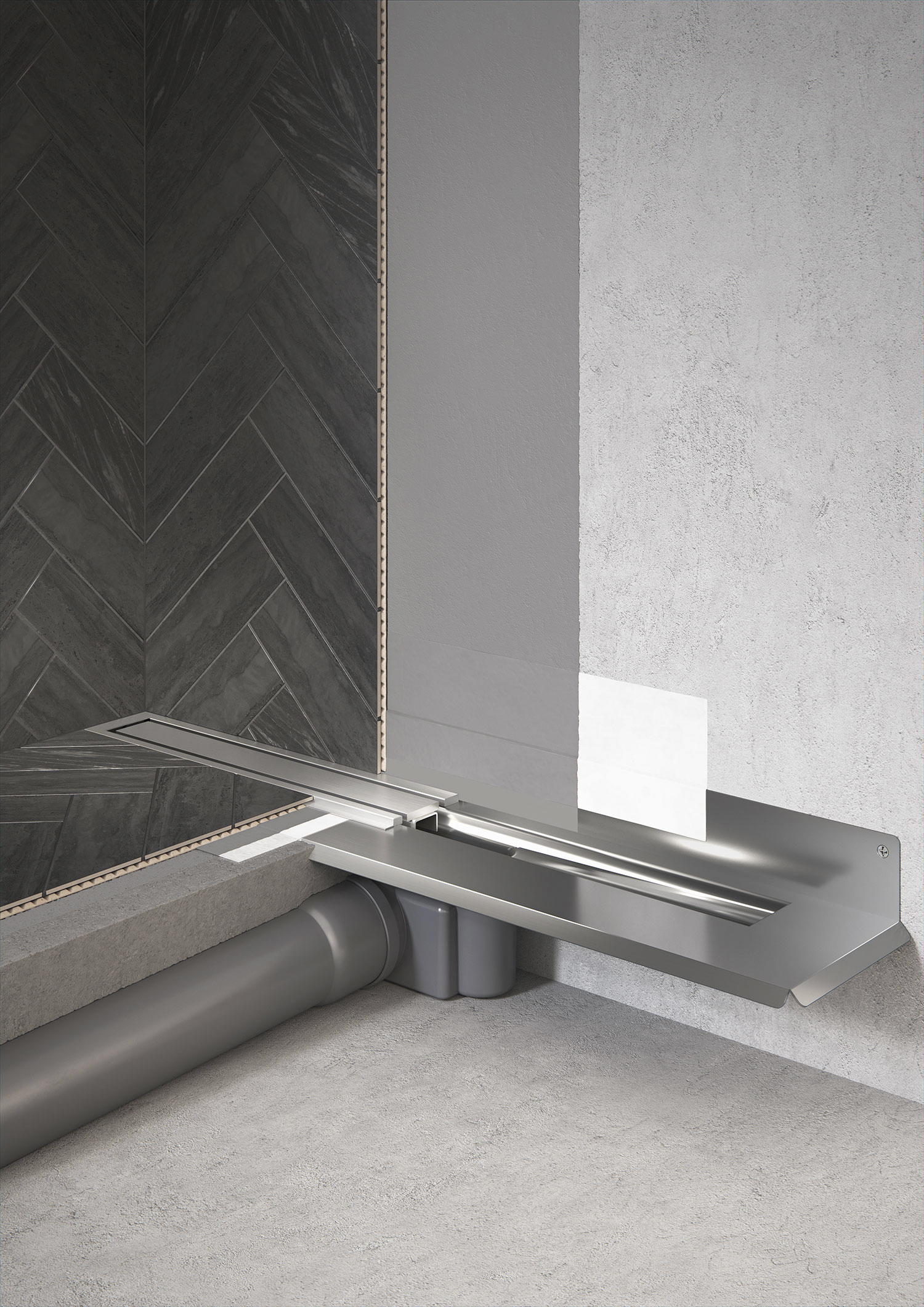

Unidrain is a narrow and stylish linear floor drain that can be securely and moisture-proof mounted to the wall thanks to its patented steel frame structure. The drain system consists of four components: the floor drain frame, the waste trap, the frame, and the grating/panel. The first two components are installed before pouring the floor, and the last two after waterproofing. The drain is extremely easy to clean thanks to its handle and removable water trap. The floor drain frame and body are made of stainless steel, and the waste trap is made of polypropylene. The Linja 1002 is suitable for shower corners with an open right side, glass wall, or similar. The floor drain frame has two wall flanges and two floor flanges. Total construction height (excluding frame/grating) = waste trap height + (H). (H) = distance from the top edge of the waste trap to the horizontal surface of the floor drain frame. The cover can be chosen from two different ranges: classic perforated steel gratings from the ClassicLine range or modern panels from the HighLine range. Features

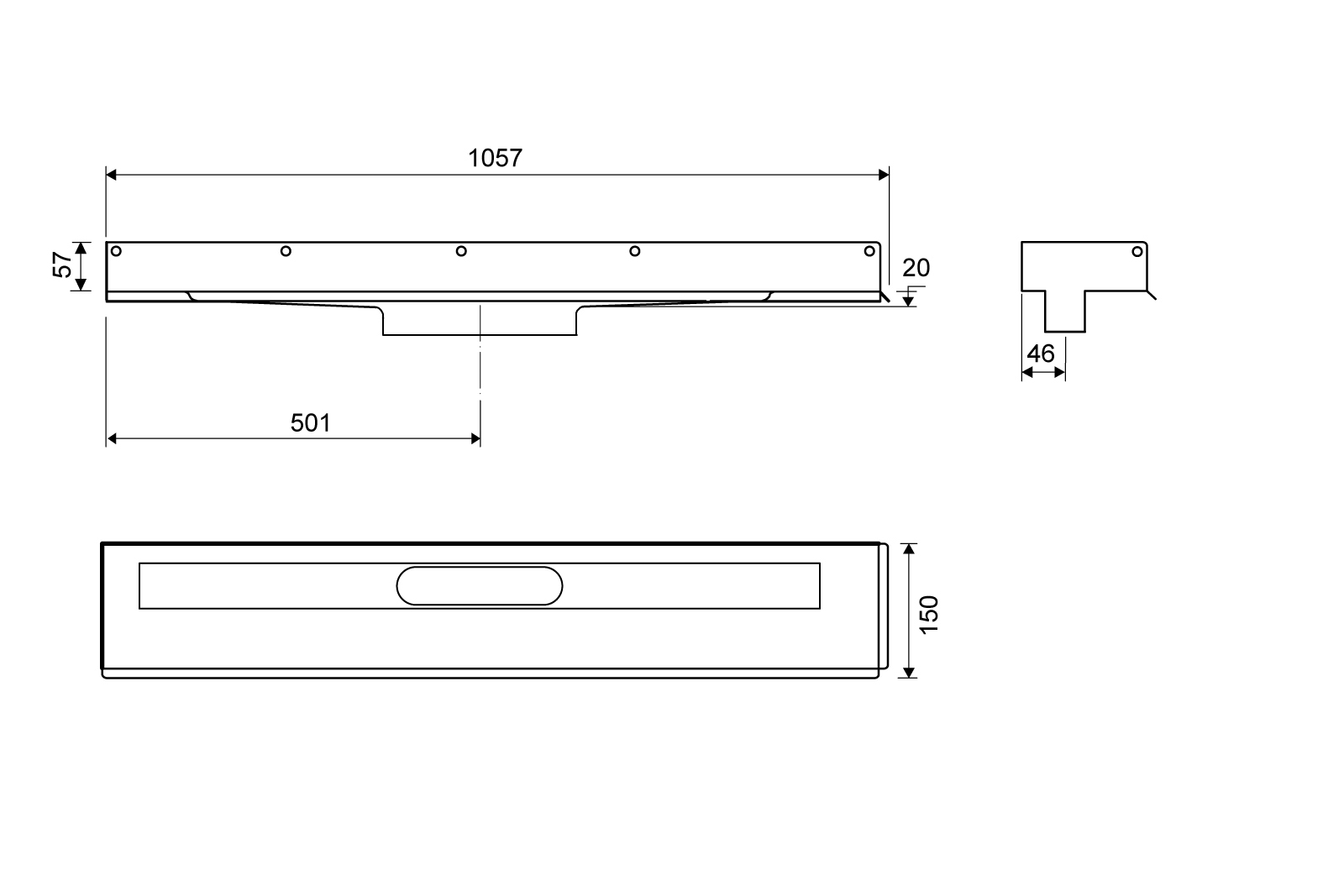

• installation length: 1,057 mm
• frame: 995 mm
• height: 20 mm
• length model: 1,000 mm
• connection type: pipe end
• model/type: rectangular
• wall flange: rear wall/left
• color: gray

This product description is an automated translation of the original Finnish description.
