DRAIN UNIT UNIDRAIN 1003 2 WALLFLANGES 1200mm

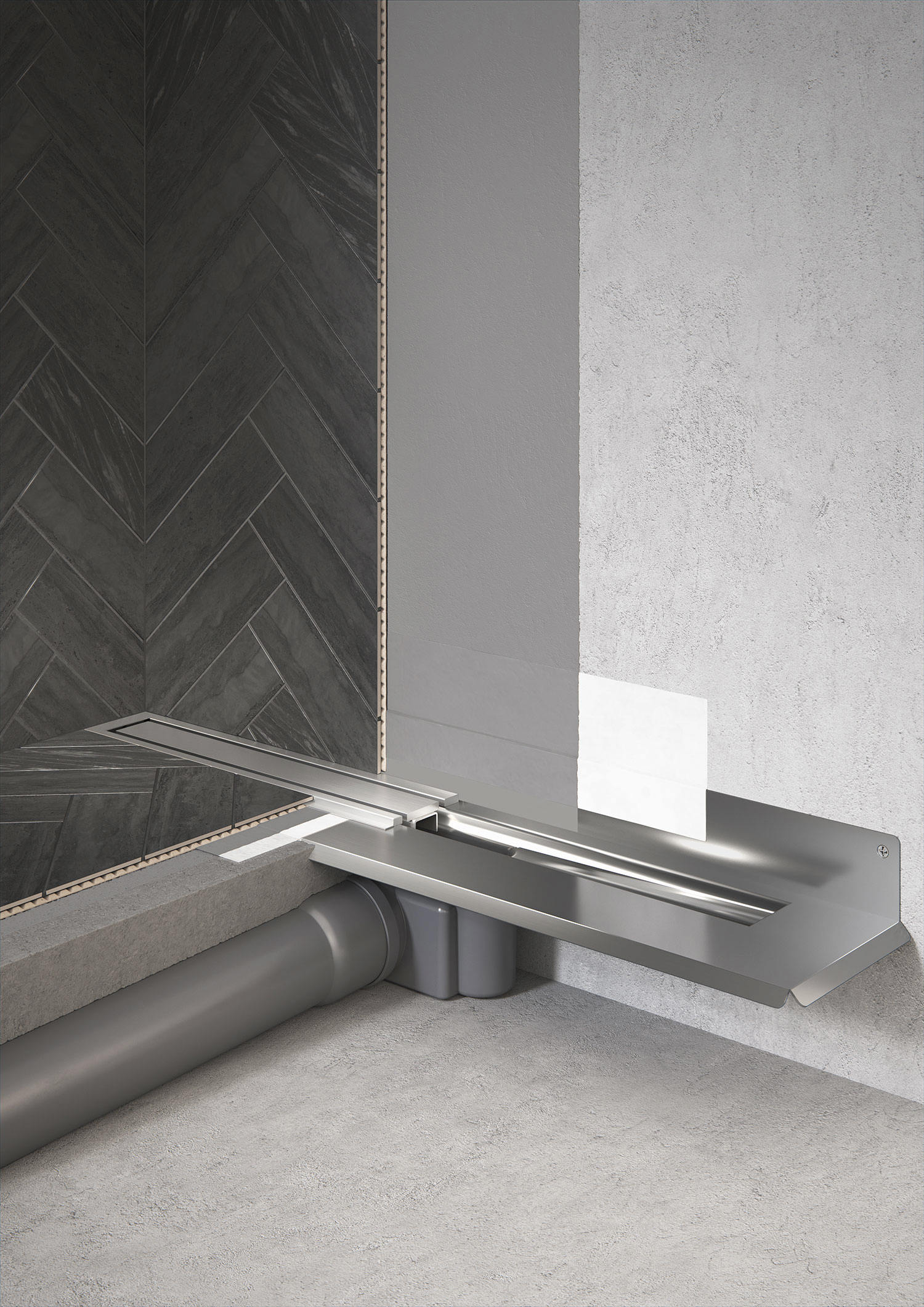

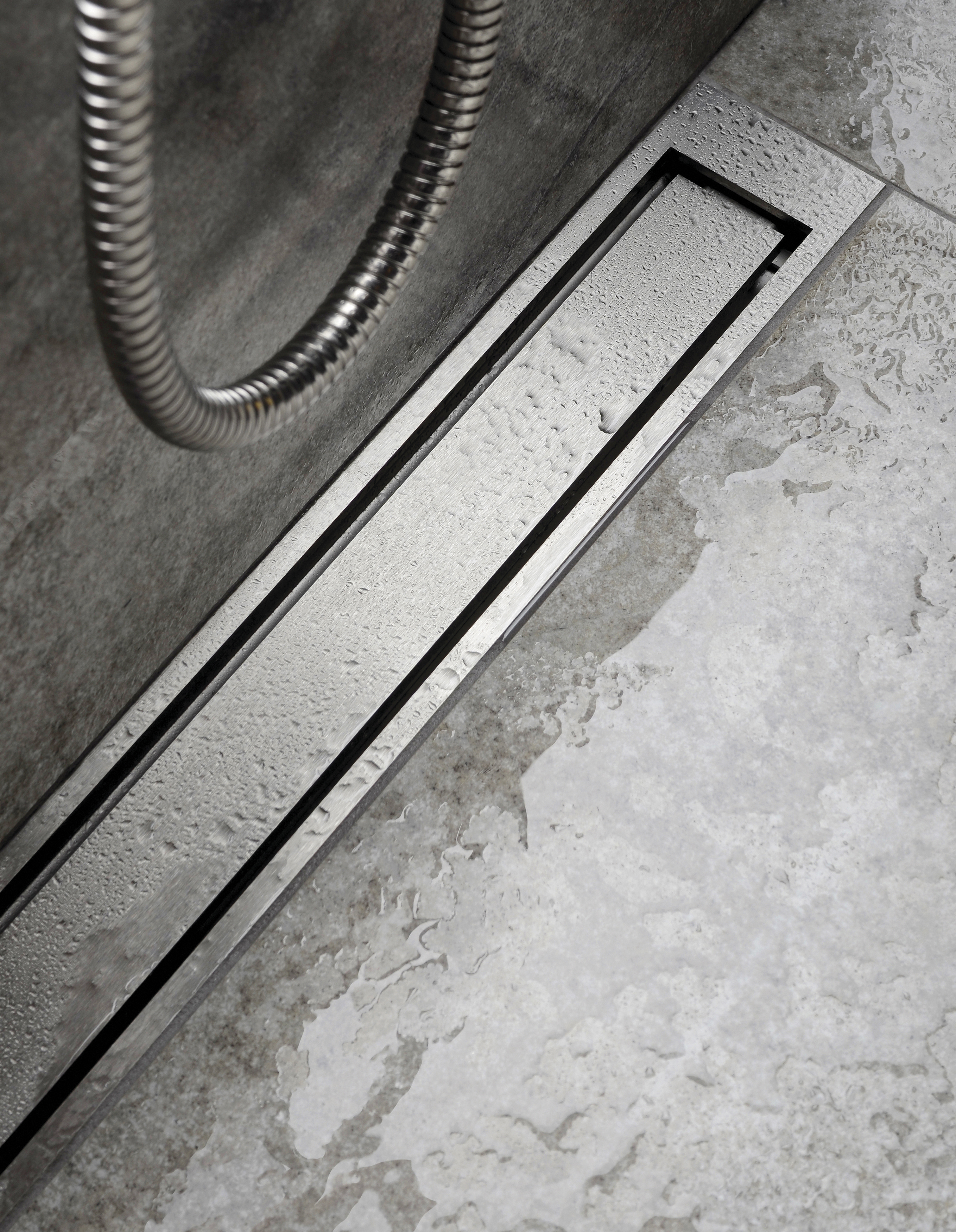

Unidrain is a narrow and stylish linear floor drain that can be securely mounted to the wall thanks to its patented steel frame structure. The drain system consists of four components: the floor drain frame, the waste pipe, the frame, and the grating/panel. The first two components are installed before pouring the floor, and the last two after waterproofing. The drain is extremely easy to clean thanks to its handle and removable water trap. The floor drain frame and body are made of stainless steel, and the waste pipe is made of polypropylene. The Line 1003 floor drain frame is suitable for shower corners with an open left side, glass wall, or similar. The floor drain frame has two wall flanges and two floor flanges. The cover can be chosen from two different ranges: classic perforated steel grates from the ClassicLine range or modern panels from the HighLine range. Features

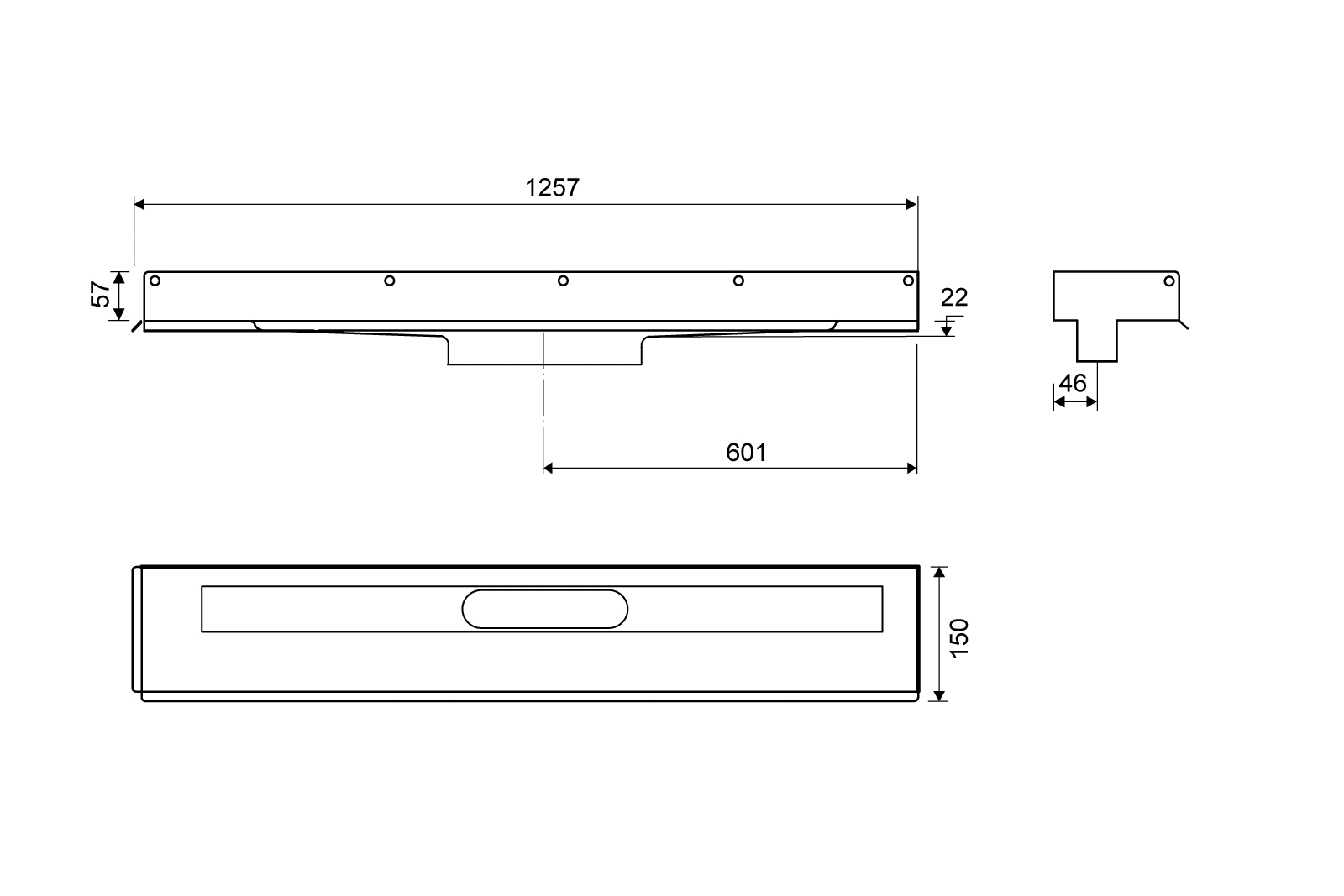

• installation length: 1,257 mm
• frame: 1,195 mm
• height: 22 mm
• length model: 1,200 mm
• connection type: pipe end
• model/type: rectangular
• color: gray
• material: 1.5 mm stainless steel (AISI 304)
• surface: coated
• waterproofing: flexible waterproofing strip and reinforcement tape
• floor construction: all
• wall flange: rear wall
• floor finish: tiles

This product description is an automated translation of the original Finnish description.
