DRAIN UNIT UNIDRAIN 1003 2 WALLFLANGES 700 mm

Unidrain is a narrow and stylish linear floor drain that can be securely and moisture-proof mounted to the wall thanks to its patented steel frame structure. The drain assembly consists of four components: the floor drain frame, the wastewater trap, the frame, and the grating/panel. The first two components are installed before pouring the floor, and the last two after waterproofing. The drain is extremely easy to clean thanks to its handle-equipped and removable water trap. The floor drain frame and body are manufactured from stainless steel, and the wastewater trap from polypropylene. The Line 1003 floor drain frame is suitable for shower corners with an open left side, glass wall, or similar. The floor drain frame has two wall flanges and two floor flanges. The cover can be chosen from two different ranges: classic perforated steel grates from the ClassicLine range or modern panels from the HighLine range. Features

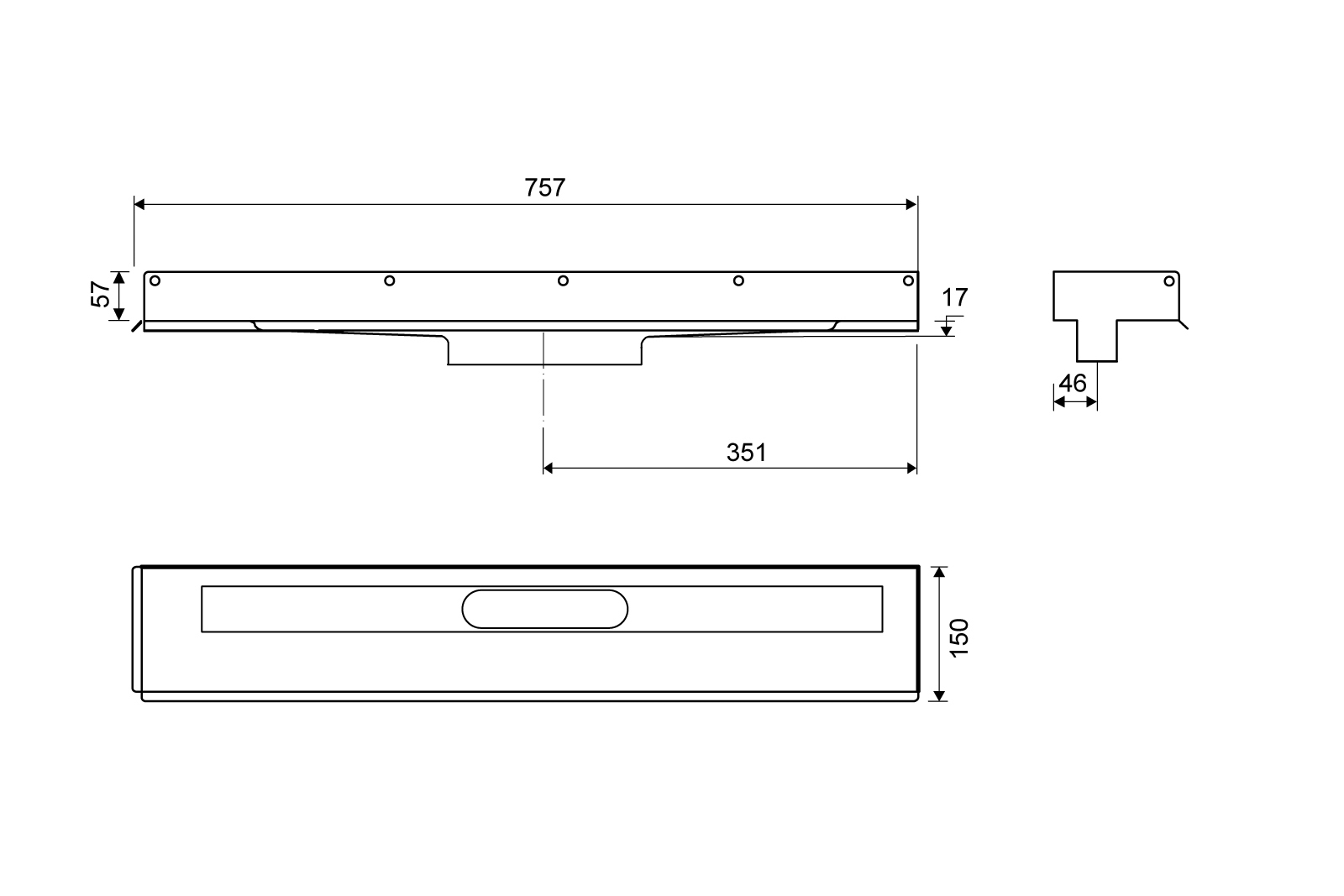

• installation length: 757 mm
• frame: 695 mm
• height: 17 mm
• length model: 700 mm
• connection type: pipe end
• model/type: rectangular
• color: gray
• material: 1.5 mm stainless steel (AISI 304)
• surface: coated
• waterproofing: sealing membrane and reinforcement tape
• floor construction: all
• wall flange: rear wall/right
• floor finish: tiles
