DRAIN UNIT UNIDRAIN 1003 2 WALLFLANGES 900 mm

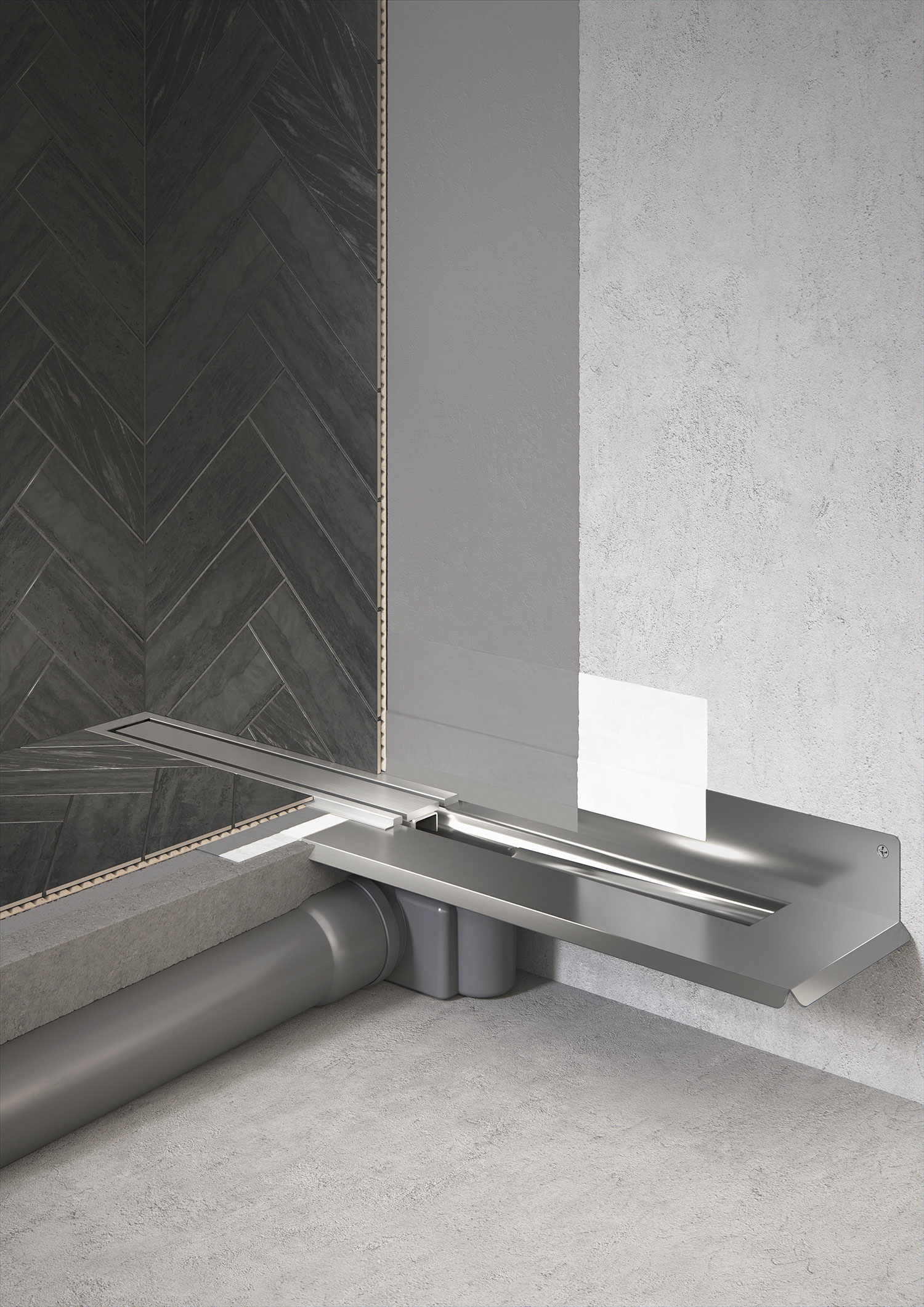

Unidrain is a narrow and stylish linear floor drain that can be securely and moisture-proof mounted to the wall thanks to its patented steel frame structure. The drain system consists of four components: the floor drain frame, the waste trap, the frame, and the grating/panel. The first two components are installed before pouring the floor, and the last two after waterproofing. The drain is extremely easy to clean thanks to its handle-equipped and removable water trap. The floor drain frame and body are manufactured from stainless steel, and the waste trap from polypropylene. The Line 1003 floor drain frame is suitable for shower corners with an open left side, glass wall, or similar. The floor drain frame has two wall flanges and two floor flanges. The cover can be selected from two different ranges: classic perforated steel grates from the ClassicLine range or modern panels from the HighLine range. Features

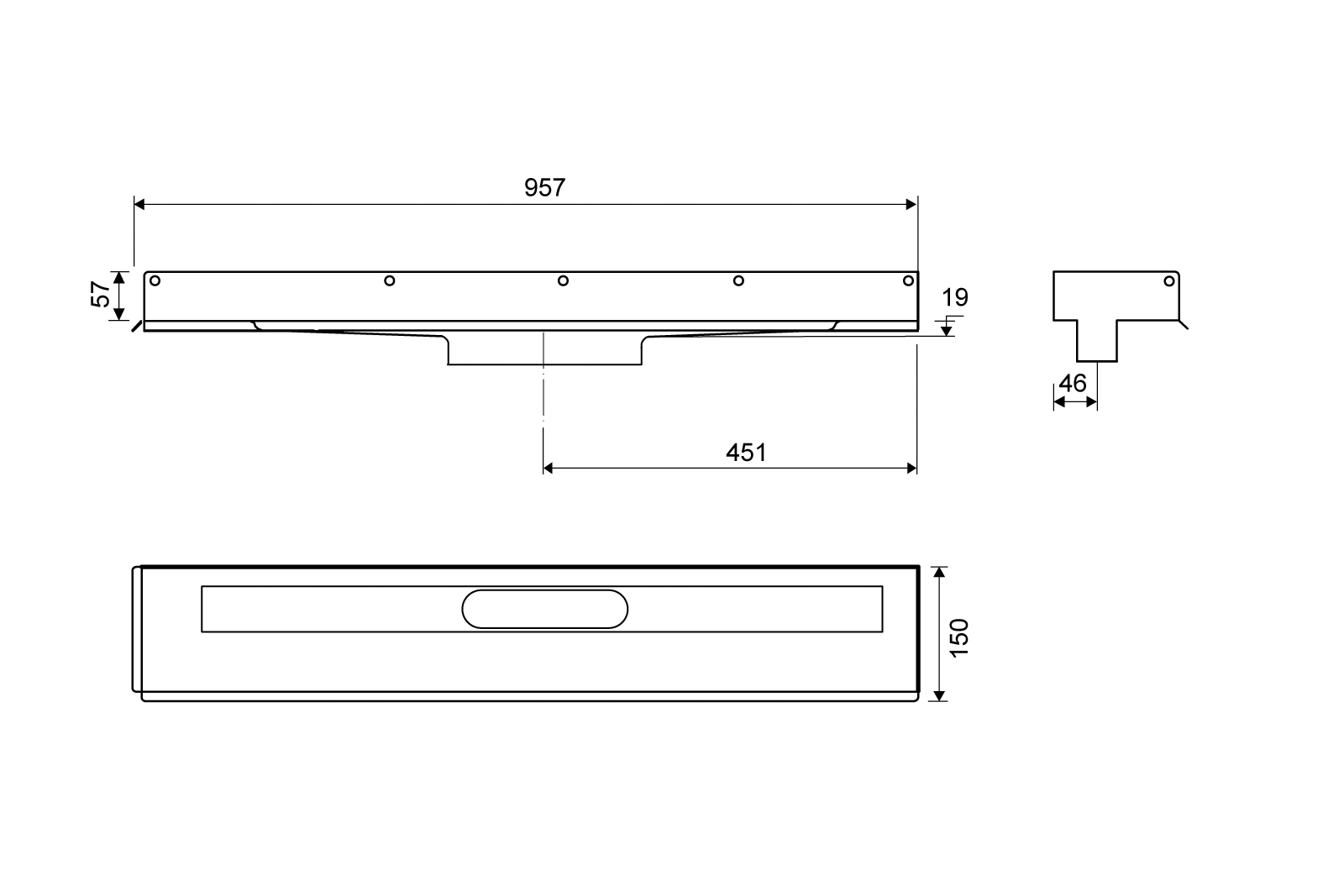

• installation length: 957 mm
• frame: 895 mm
• height: 19 mm
• length model: 900 mm
• connection type: pipe end
• model/type: rectangular
• color: gray
• material: 1.5 mm stainless steel (AISI 304)
• surface: coated
• waterproofing: bituminous waterproofing and reinforcement tape
• floor construction: all
• wall flange: rear wall/right
• floor finish: tiles

This product description is an automated translation of the original Finnish description.
