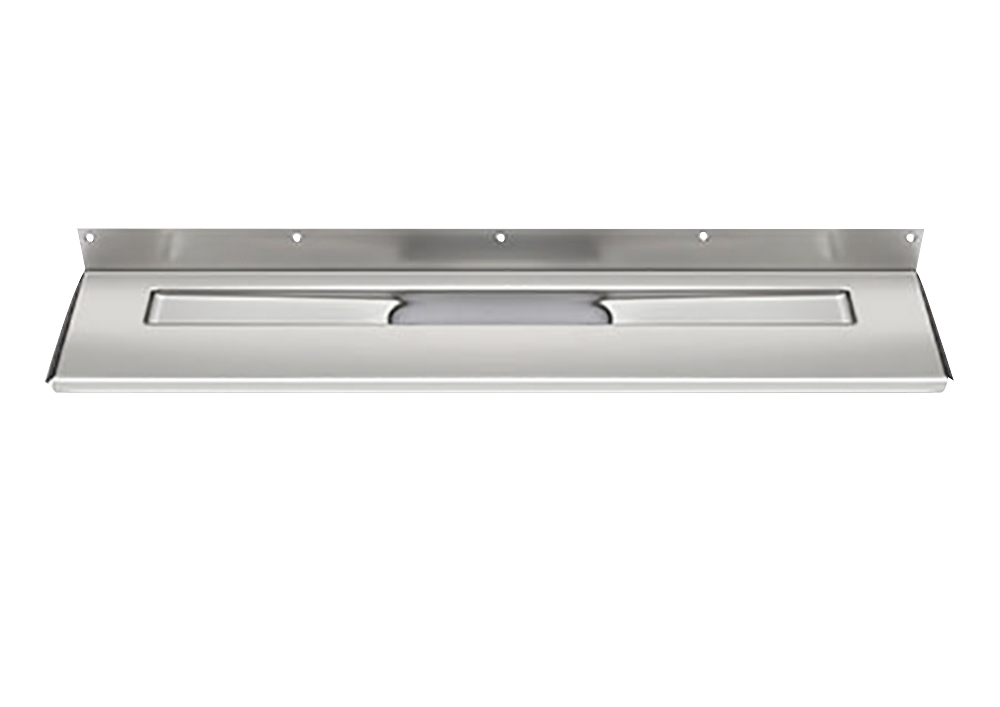

DRAIN UNIT UNIDRAIN 1004 1 WALLFLANGE 1200mm

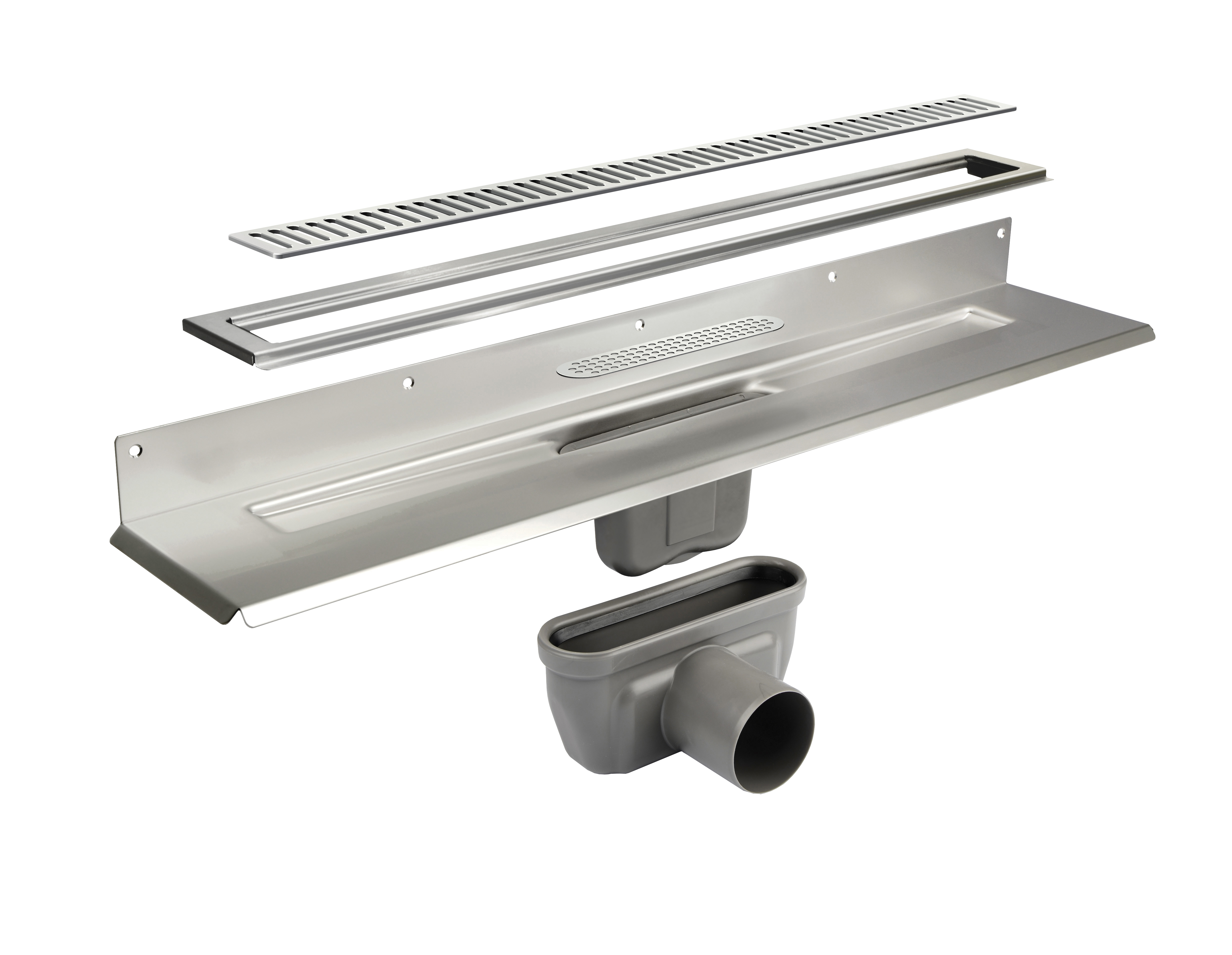

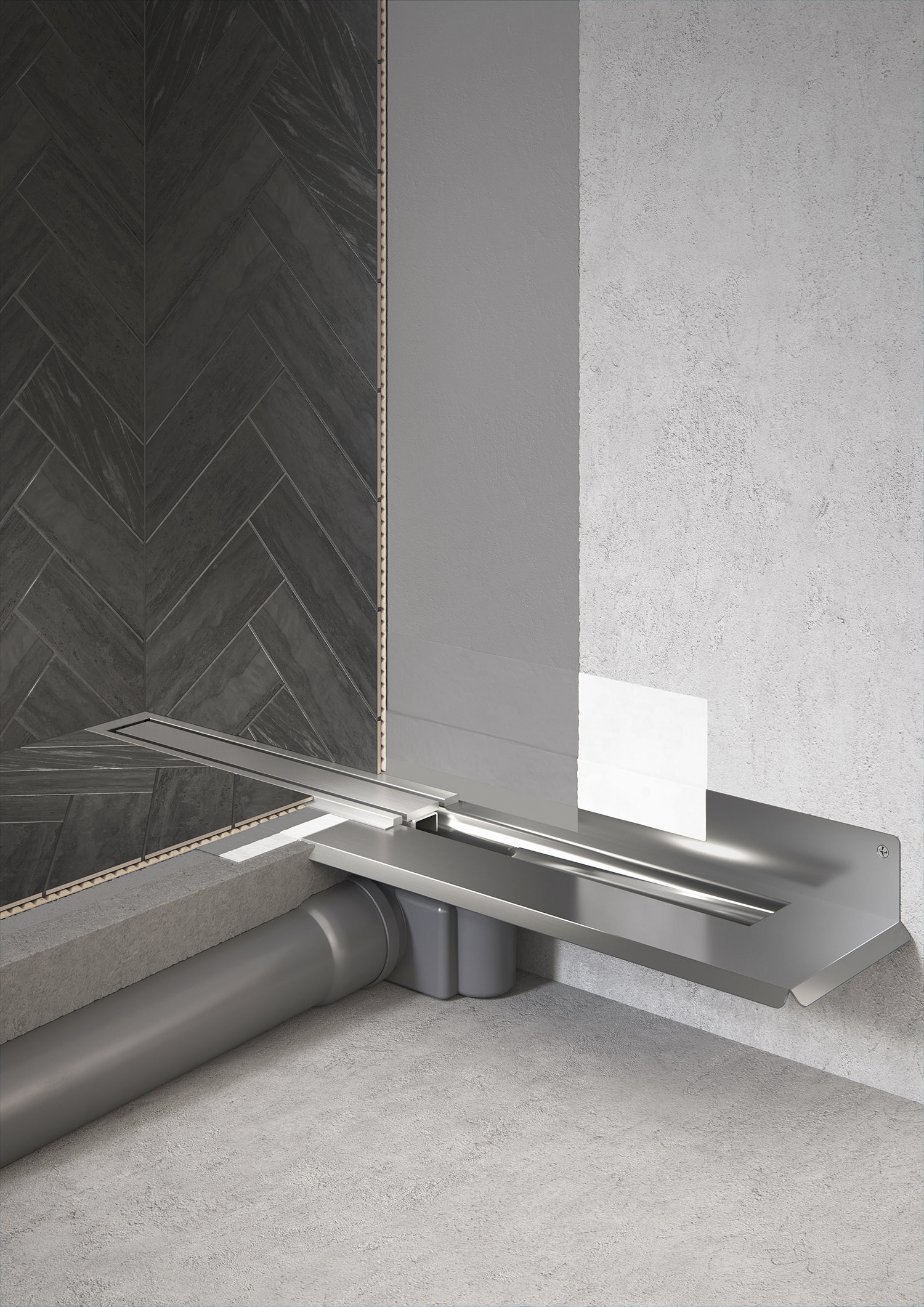

Unidrain is a narrow and stylish linear floor drain that can be securely and moisture-proof attached to the wall thanks to its patented steel frame structure. The drain assembly consists of four components: the floor drain frame, the waste trap, the frame, and the grating/panel. The first two components are installed before pouring the floor, and the last two after waterproofing. The drain is extremely easy to clean thanks to its handle-equipped and removable water trap. The floor drain frame and body are manufactured from stainless steel, and the waste trap from polypropylene. The Line 1004 can be installed in the center of the wall regardless of the position of the side walls. The floor drain frame has one wall connection and three floor flanges. The cover can be chosen from two different ranges: classic perforated steel gratings from the ClassicLine range or modern panels from the HighLine range. Features

• installation length: 1,312 mm
• frame: 1,195 mm
• height: 22 mm
• length model: 1,200 mm
• connection type: pipe end
• model/type: rectangular
• color: gray
• material: 1.5 mm stainless steel (AISI 304)
• surface: coated
• waterproofing: flexible waterproofing strip and reinforcement tape
• floor structure: all
• floor finish: tiles
