DRAIN UNIT UNIDRAIN 1004 1 WALLFLANGE 900 mm

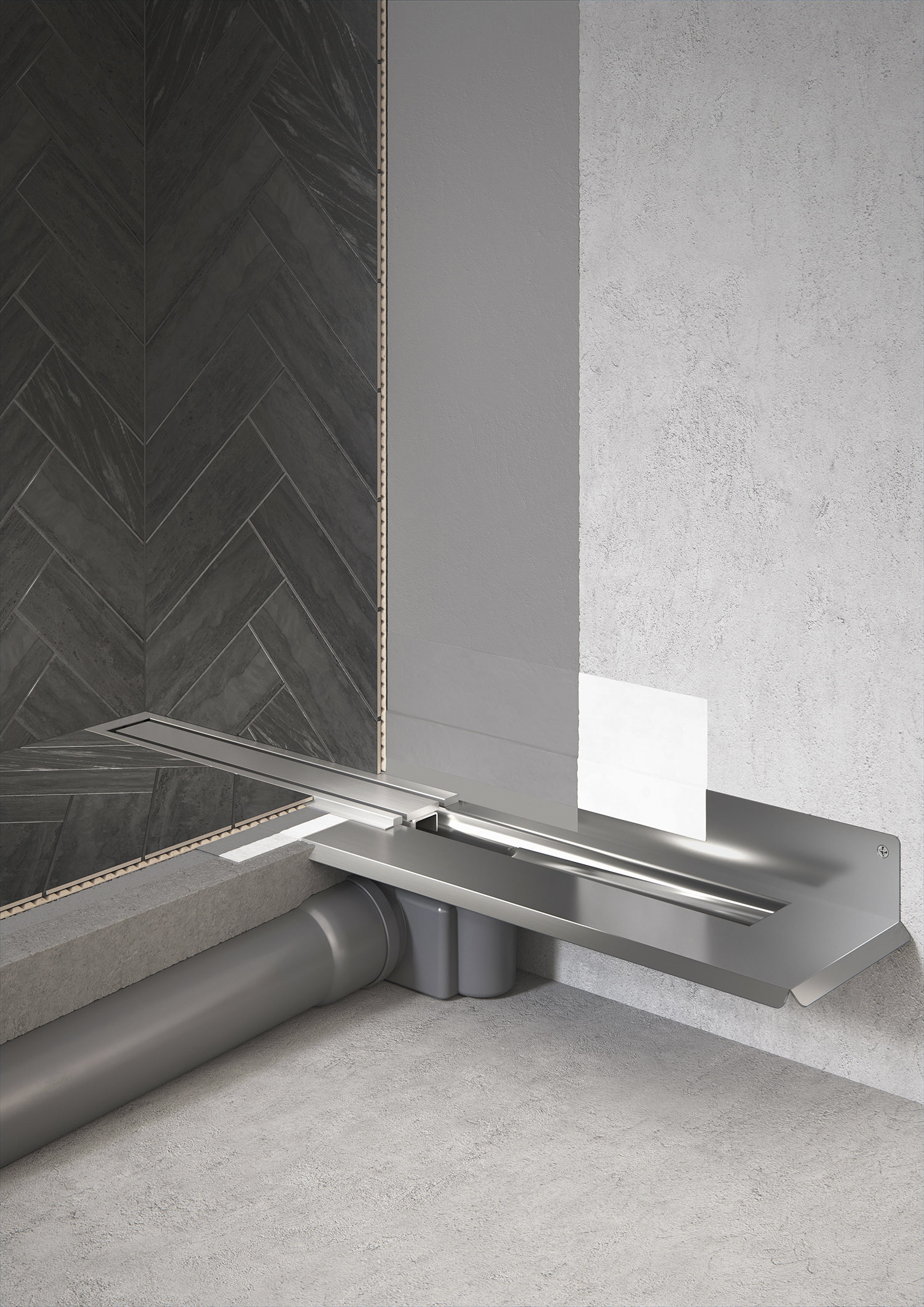

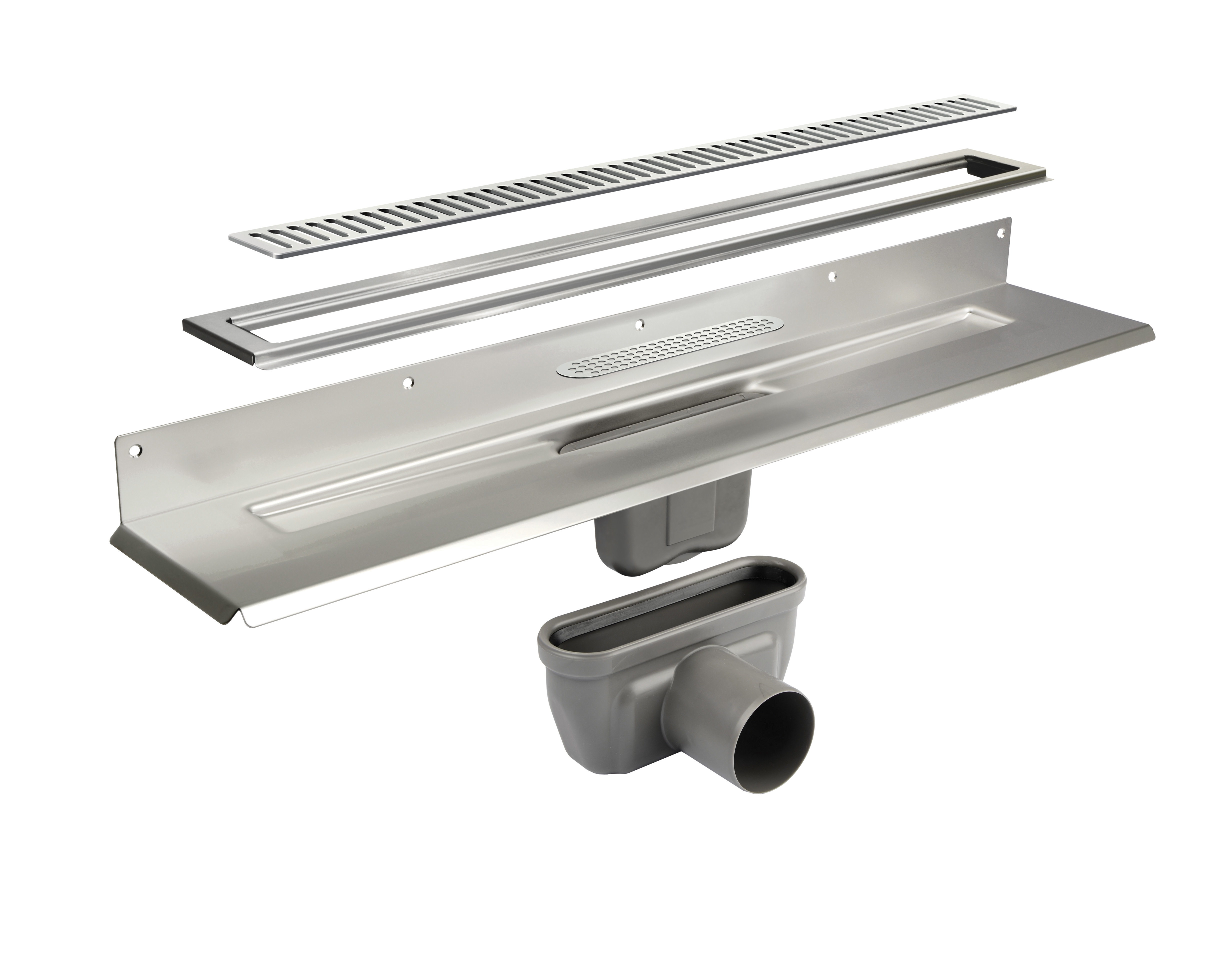

Unidrain is a narrow and stylish linear floor drain that can be securely and moisture-proof mounted to the wall thanks to its patented steel frame structure. The drain unit consists of four components: the floor drain frame, the waste trap, the frame, and the grating/panel. The first two components are installed before pouring the floor, and the last two after waterproofing. The drain is extremely easy to clean thanks to its handle-equipped and removable water trap. The floor drain frame and body are made of stainless steel, and the waste trap is made of polypropylene. The Line 1004 can be installed in the center of the wall regardless of the placement of side walls. The floor drain frame has one wall connection and three floor flanges. The cover can be chosen from two different ranges: classic perforated steel gratings from the ClassicLine range or modern panels from the HighLine range. Features

• installation length: 1,012 mm
• frame: 895 mm
• height: 19 mm
• length model: 900 mm
• connection type: pipe end
• model/type: rectangular
• color: gray
• material: 1.5 mm stainless steel (AISI 304)
• surface: coated
• waterproofing: membrane waterproofing and reinforcement tape
• floor construction: all
• wall flange: rear wall
• floor finish: tiles

This product description is an automated translation of the original Finnish description.
