FRAME UNIDRAIN 1500 800/8mm

Unidrain is a narrow and stylish linear floor drain that can be securely mounted to the wall thanks to its patented steel flange structure, ensuring moisture safety. The strong steel protects the junction between the floor and wall from leaks. Waterproofing is achieved using a flexible waterproofing membrane at the connection between the steel flanges and the wall/floor surface. The floor slope can be directed in one direction and compatible with any size of floor tiles. The drain assembly consists of four components: the floor drain body, the waste pipe, the frame, and the grating/panel. The first two components are installed before pouring the floor, and the last two after waterproofing. The drain is extremely easy to clean thanks to its handle and removable water trap. The rubber seal of the ClassicLine 1500 tile frame ensures precise fitting to the floor drain body. The grating is placed on top of the recessed edge. The frame is mandatory and has two functions: it holds the grating in place and facilitates a stylish finish of the tiling. Note that the frame height equals the tile thickness plus approximately 2 mm for the tile adhesive and waterproofing. The frame height (8, 10, or 12 mm) is determined by the tile thickness. Note that the frame width of 80 mm includes a 2 mm allowance for the wall flange. Features

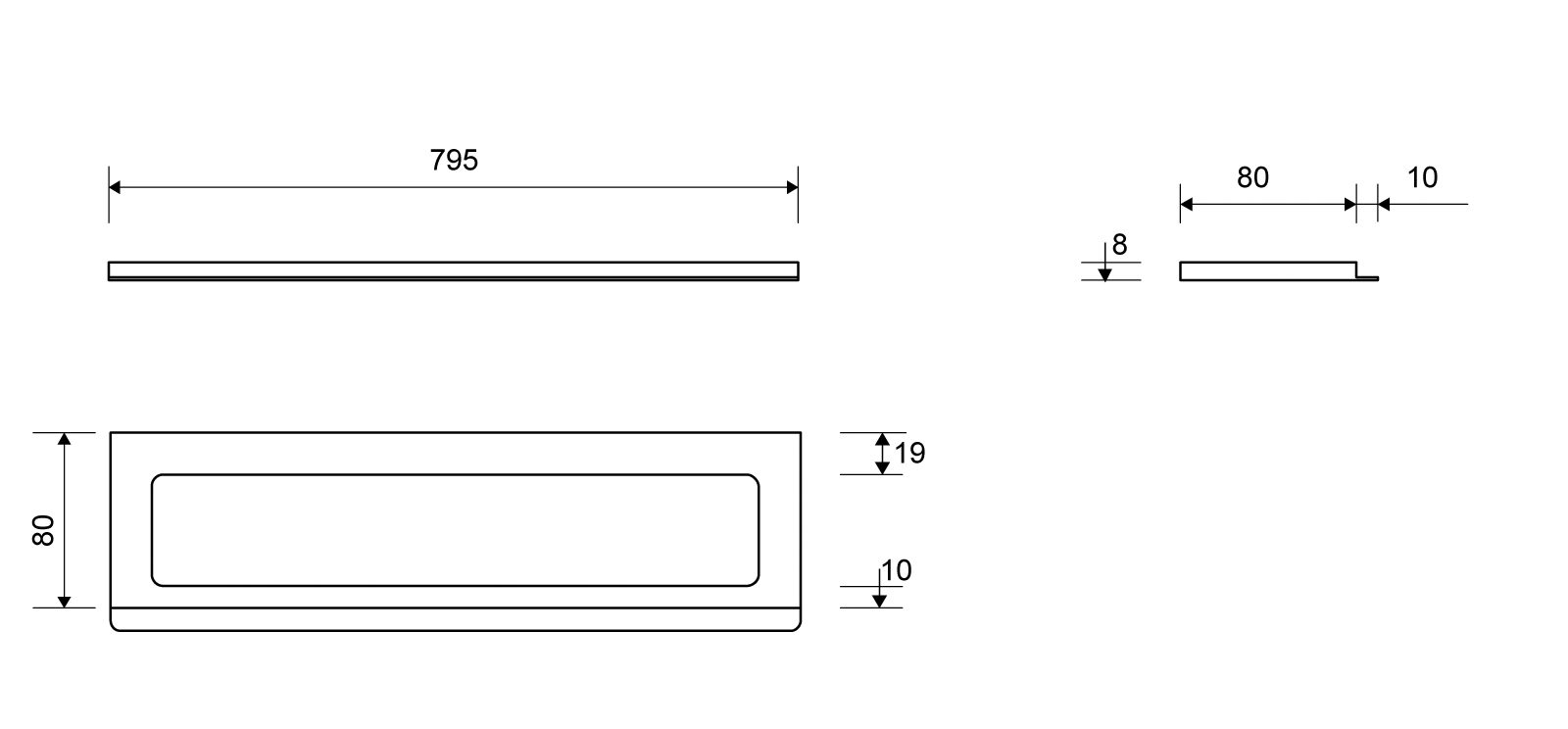

• length model: 800 mm
• length: 795 mm
• height: 8 mm
• width: 80 mm
• grating shape: rectangular
• grating material: stainless steel
• surface: brushed
