GALLER 1M COLUMN 16021000 UNIDRAIN RFR
Product code
3307586
Unidrain is a narrow and stylish linear floor drain that, thanks to its patented steel frame structure, can be securely and moisture-proof mounted to the wall. The drain system consists of four components: the floor drain base, the wastewater trap, the frame, and the grating/panel. The first two components are installed before pouring the floor, and the last two after waterproofing.

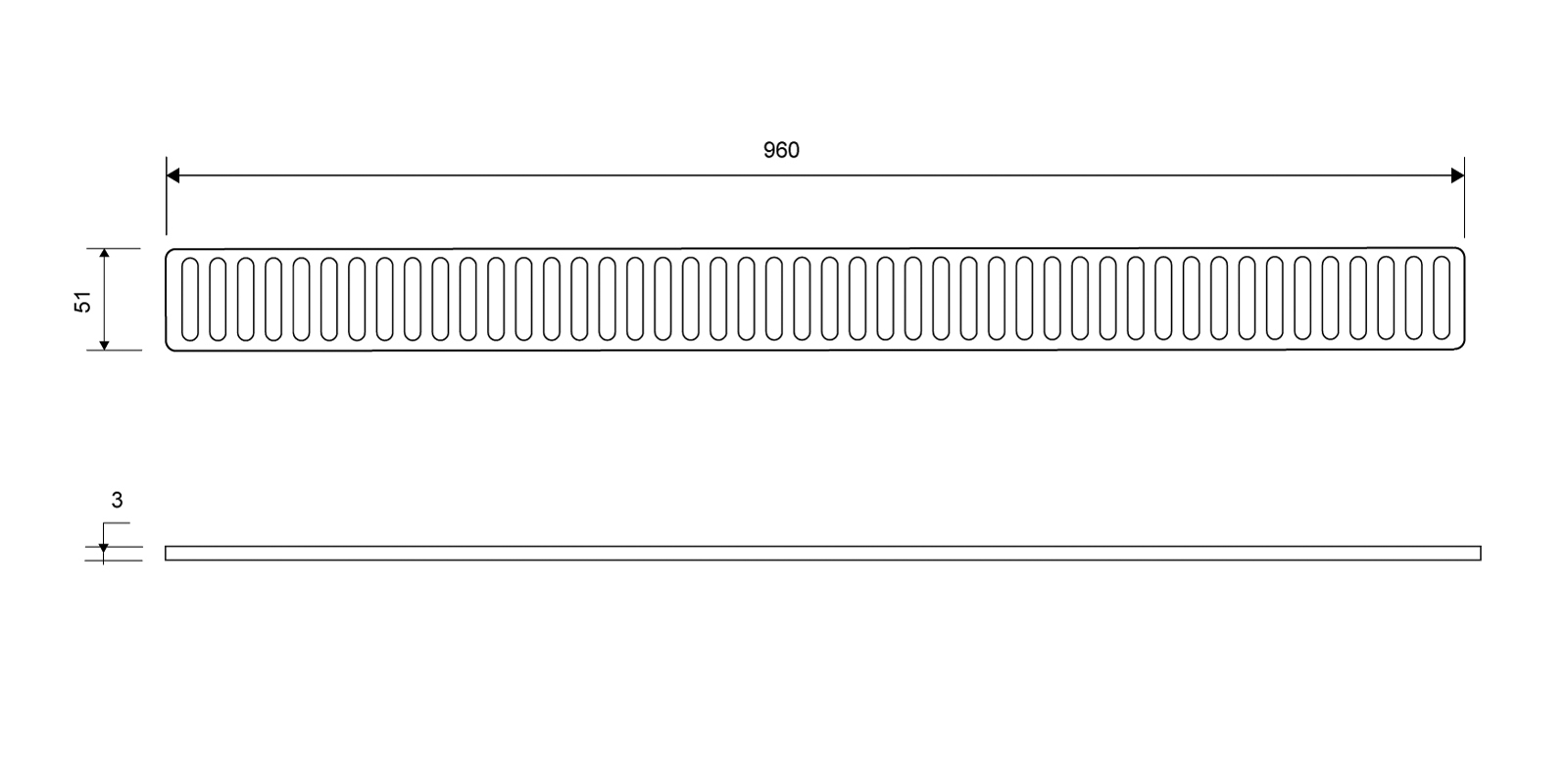

The Column 1602 grating from the ClassicLine range is used together with the ClassicLine tiling frame. The grating features a classic vertical line pattern. The grating is placed on top of the frame’s recessed edge, ensuring precise fit.
Features
- grating is placed on top of the recessed inner edge of the ClassicLine frame
- can only be used with the ClassicLine frame
- width: 51 mm
- length: 960 mm
- length model: 1 000 mm
- grating shape: rectangular
- grating material: stainless steel
Product details
Technical specifications
Product class (ETIM)Shower drain grid (EC011726)
Shape of gridRectangular
Material gridStainless steel
Length960 mm
Width51 mm
Product codes
SAPAEH872
HPAC3307586
PLC3307586
GTIN/EAN5707692002309
Manufacturer part number1602.1000
Vendor material number3307586
Basic information
Package measurements (L x W x H)980 x 65 x 25 mm
Package volume1.593 l
Package weight0.85 kg
Base uniteach
Package units1
Package contents–
UNSPSC40141739
BrandUNIDRAIN
VendorVITAS GROUP OY
The country of origin stated by the supplierFinland
Documents (13)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)3.978
GWP, uniteach
Source for GWP dataEPD
