OUTLET UNIT UNIDRAIN 1411 50mm HORIZONT. WITH TRAP

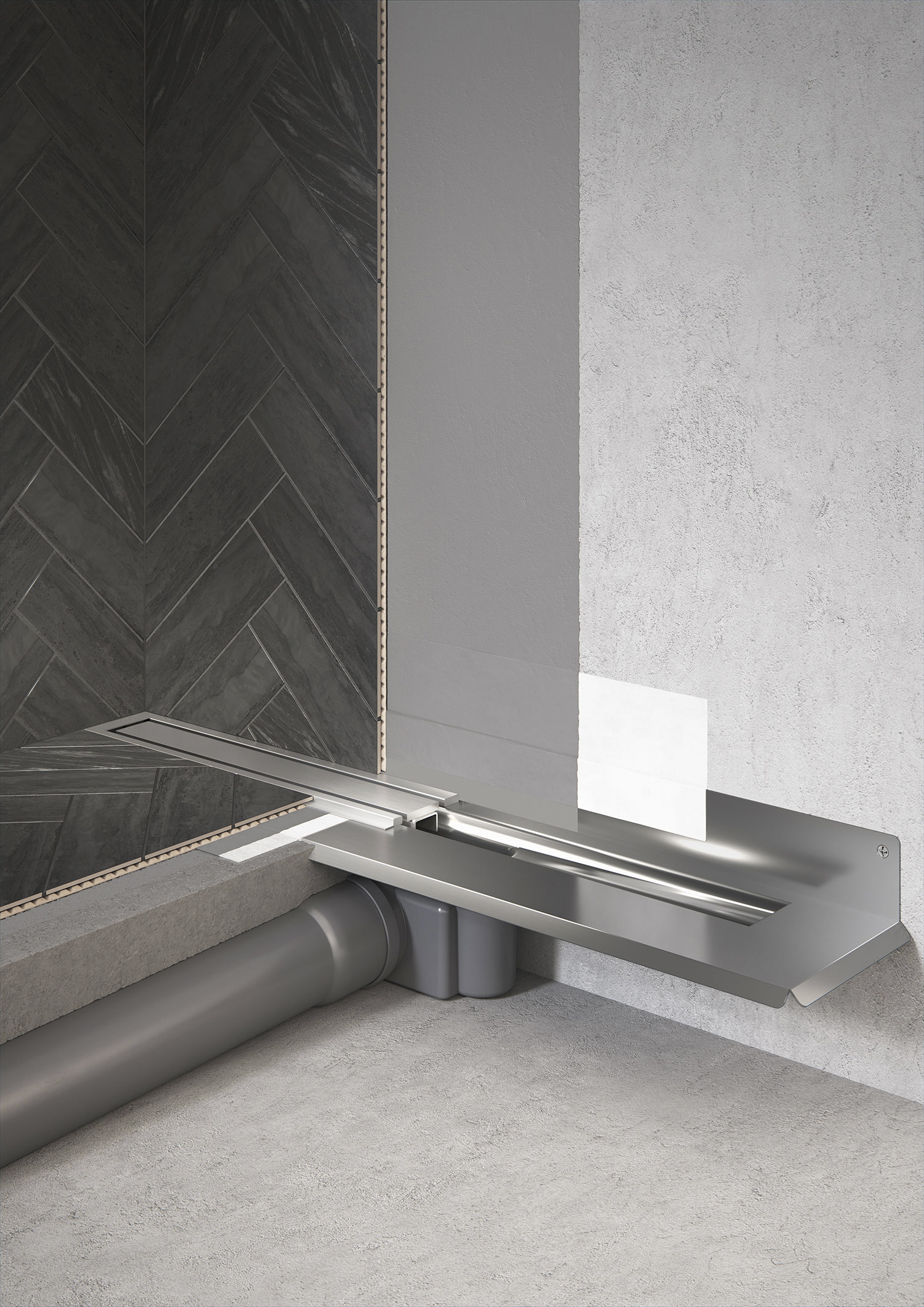

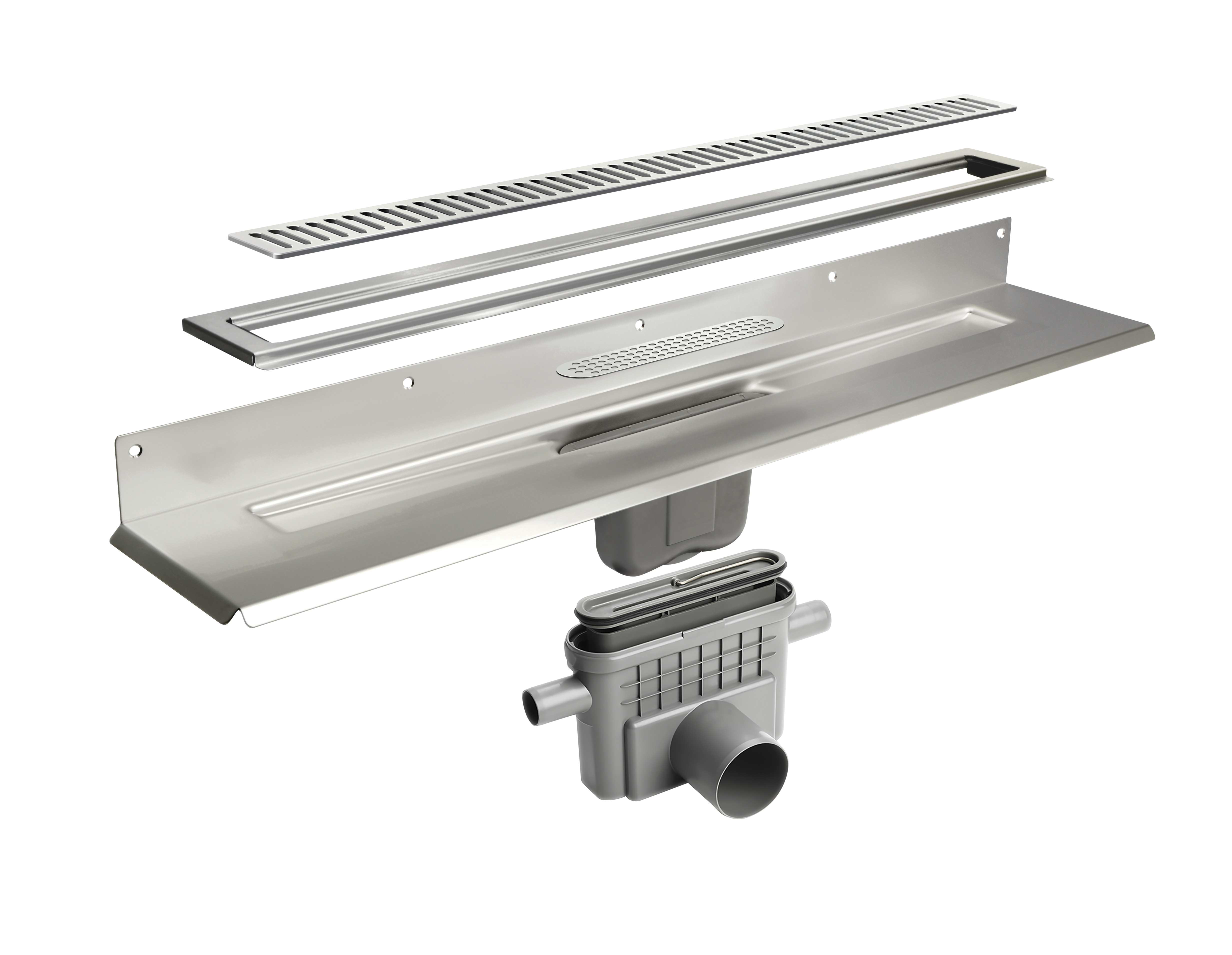

Unidrain is a narrow and stylish linear floor drain that, thanks to its patented steel frame structure, can be securely and moisture-proof mounted to the wall. The floor slope can be directed in one direction and used with any size of floor tiles. The strong steel protects the junction between the floor and the wall from leaks. Waterproofing is achieved using a flexible waterproofing membrane at the connection between the steel frames and the wall/floor surface. The drain assembly consists of four parts: the floor drain unit, the wastewater trap, the frame, and the grating/panel. The first two parts are required before pouring the floor, and the last two after waterproofing. The drain is extremely easy to clean thanks to its handle and removable water trap. The horizontal drain 1411 is manufactured from polypropylene. The outlet pipe diameter is 50 mm. The drain can be rotated 180° if the outlet pipe needs to be directed backward. The horizontal drain is compatible with fixtures 1001-02-03-04, 1100, 3002, 3004, and 5002-03. Features

• Ř 50 mm horizontal drain
• includes a water trap that can be disassembled and cleaned
• can be rotated 180° if the wastewater needs to be directed backward
• capacity: 0.91 l/s
• outlet pipe diameter: 50 mm
• grate material: plastic
• model/type: rectangular
• length: 218 mm
• color: gray
