OUTLET UNIT UNIDRAIN 1411 75mm HORIZONT. WITH TRAP

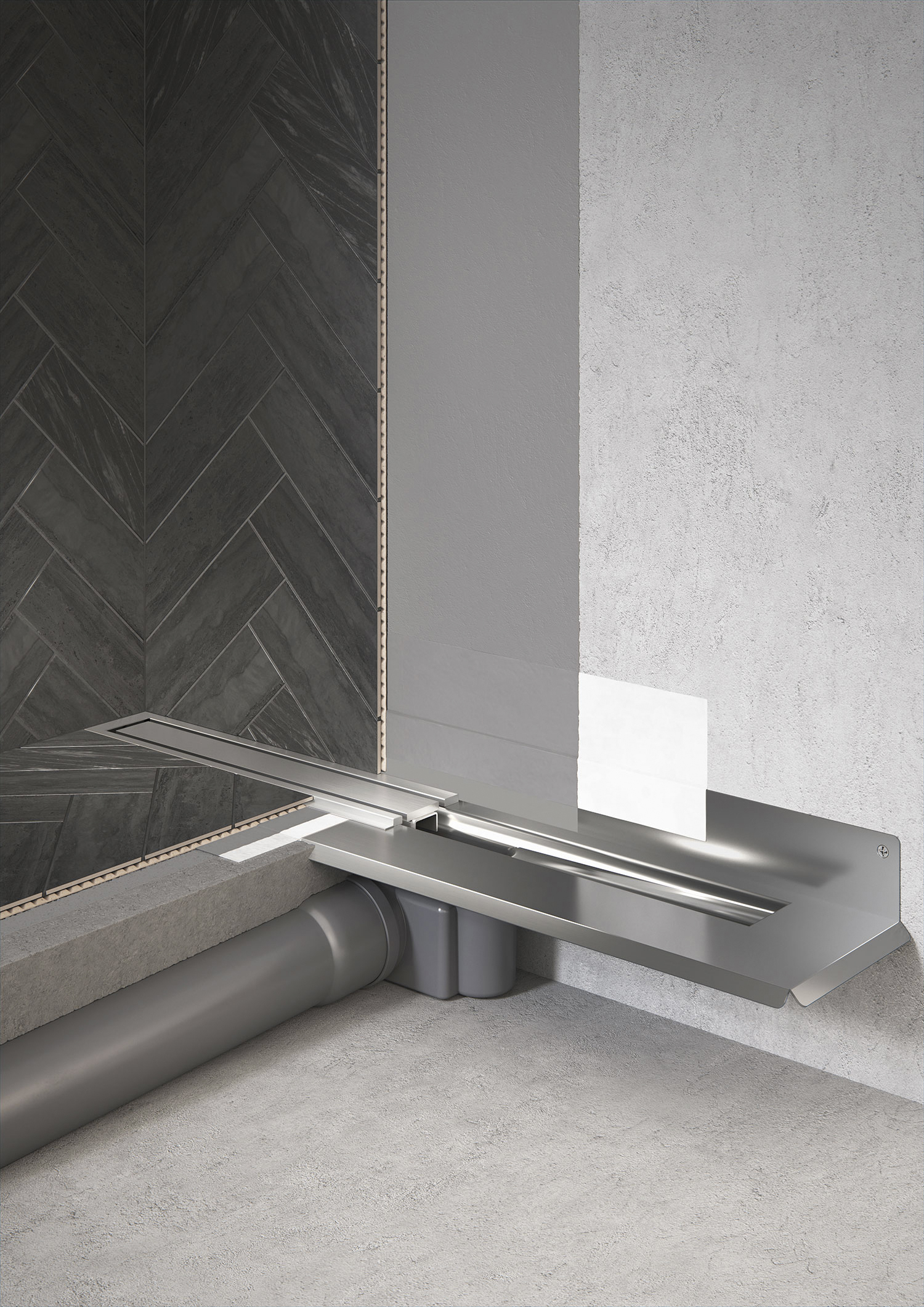

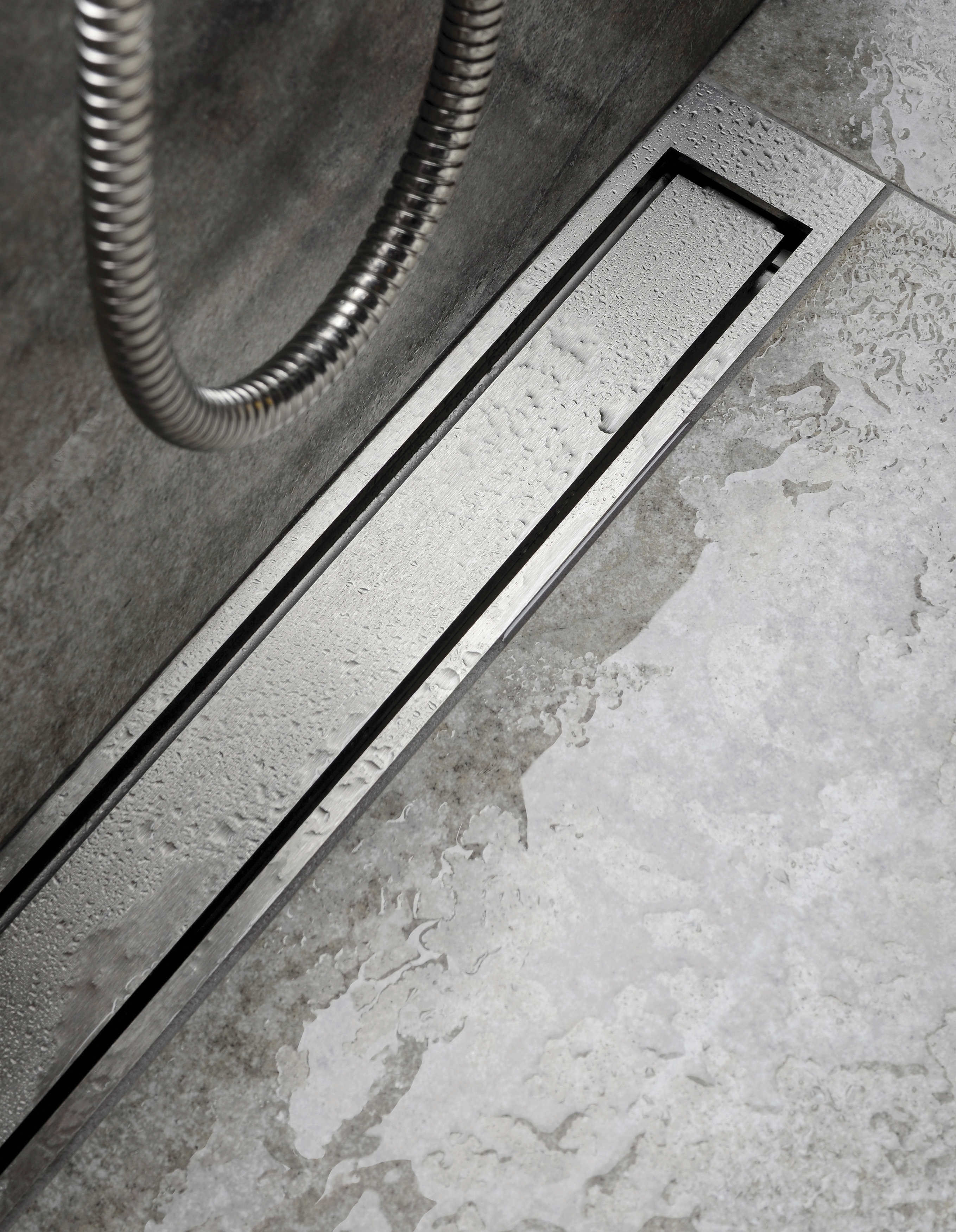

Unidrain is a narrow and stylish linear floor drain that, thanks to its patented steel frame structure, can be securely mounted against the wall in a moisture-safe manner. The floor slope can be directed in one direction and used with floor tiles of any size. The strong steel protects the junction between the floor and the wall from leaks. Waterproofing is achieved using a flexible waterproofing membrane at the junction between the steel frames and the wall/floor surface.

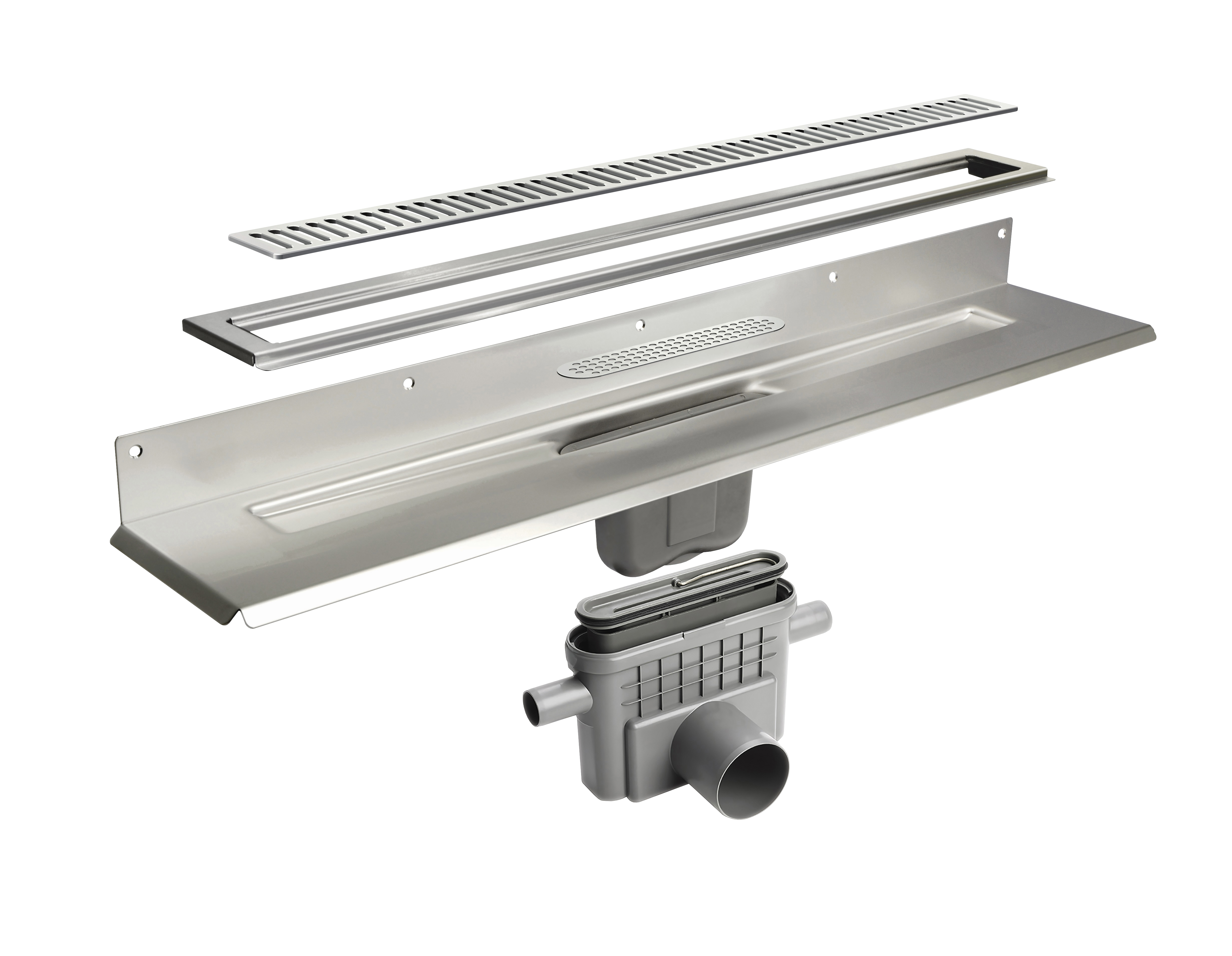

The drain assembly consists of four components: the floor drain unit, the waste trap, the frame, and the grating/panel. The first two components are installed before pouring the floor, and the last two after waterproofing. The drain is extremely easy to clean thanks to its handle and removable water trap.

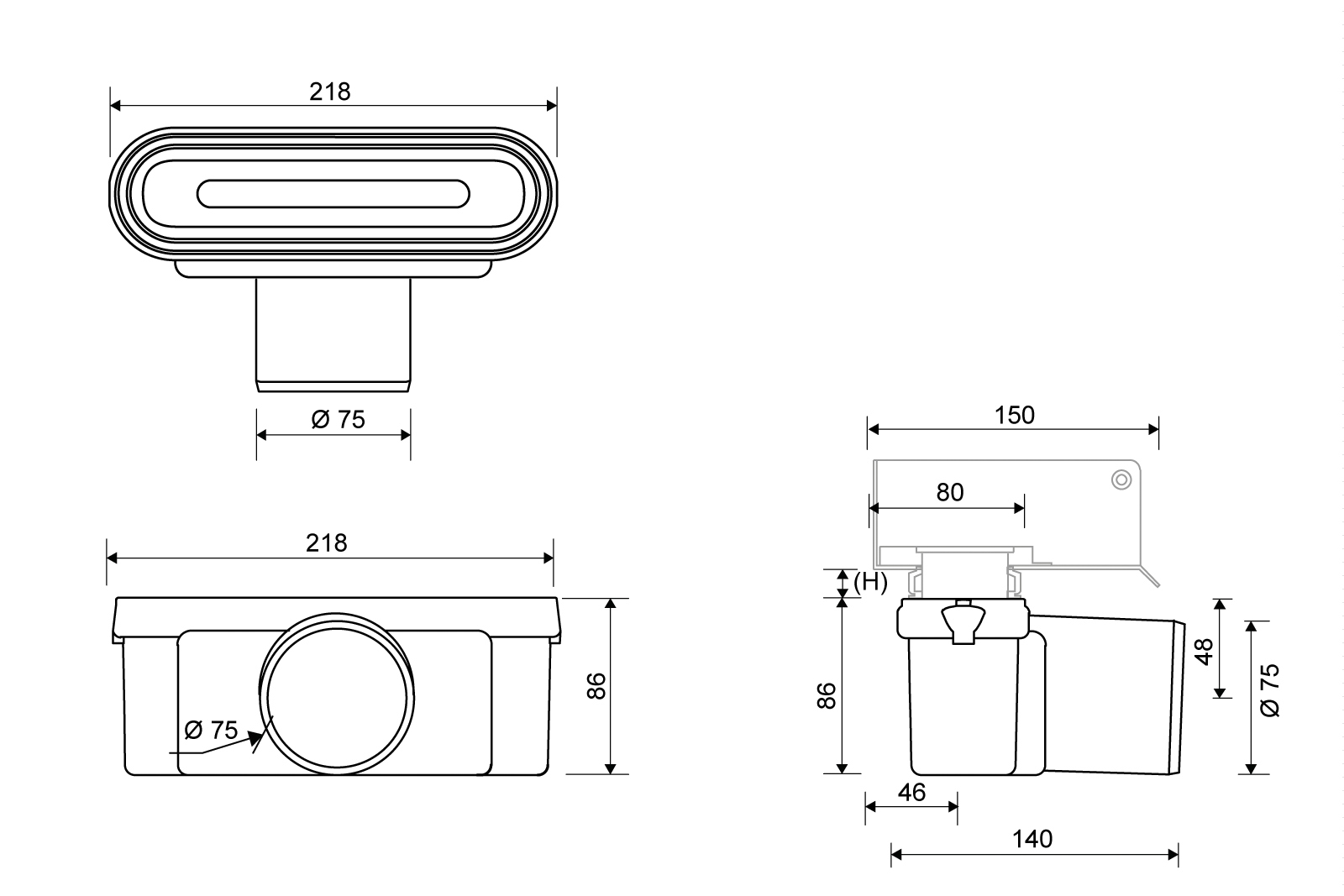

The horizontal drain 1411 is manufactured from polypropylene. The outlet pipe diameter is 75 mm. The drain can be rotated 180° if the outlet pipe needs to be directed backward.

The horizontal drain is compatible with fittings 1001-02-03-04, 1100, 3002, 3004, and 5002-03.

Features

• Ø 50 mm horizontal drain (end)
• includes a water trap that can be disassembled and cleaned
• can be rotated 180° to direct wastewater either to the right or left
• capacity: 1.0 l/s
• outlet pipe diameter: 75 mm
• grate material: plastic
• model/type: rectangular
• length: 218 mm
• color: gray

This product description is an automated translation of the original Finnish description.
