OUTLET UNIT UNIDRAIN 1433 75mm HORIZONT. WITH TRAP

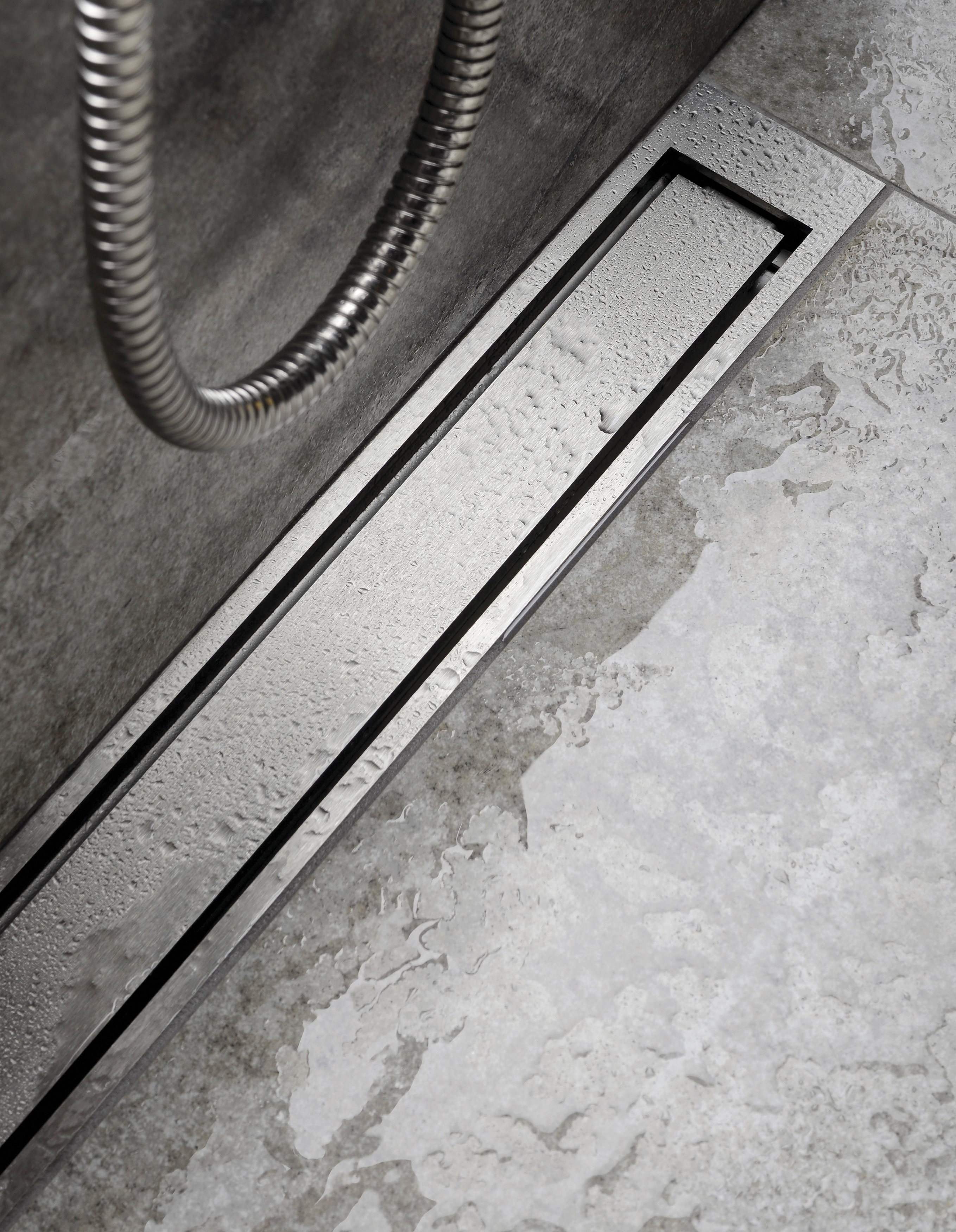

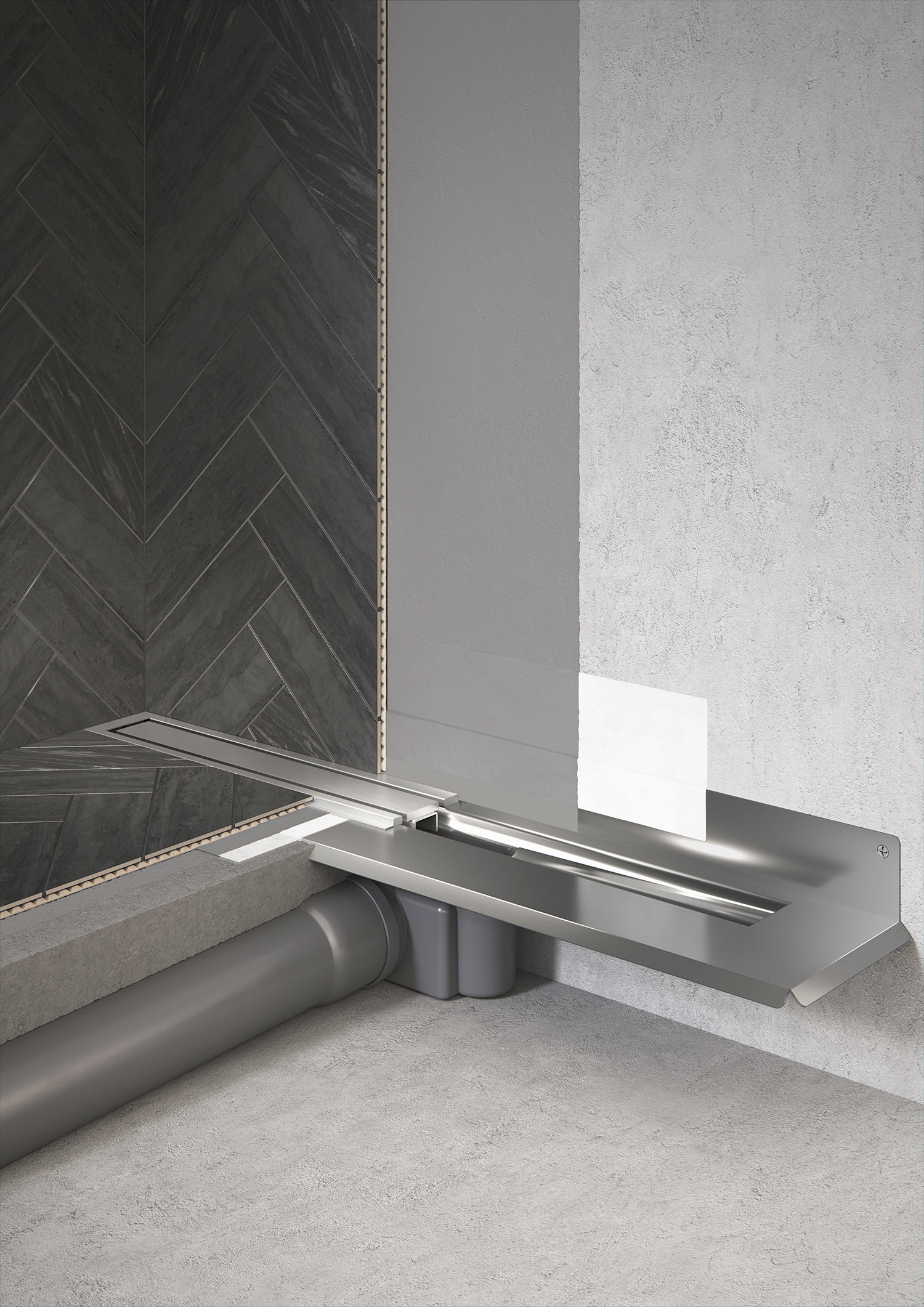

Unidrain is a narrow and stylish linear floor drain that, thanks to its patented steel frame structure, can be securely mounted to the wall in a moisture-safe manner. The floor slope can be directed in one direction and used with floor tiles of any size. The strong steel protects the junction between the floor and the wall from leaks. Waterproofing is achieved using a flexible waterproofing membrane at the junction between the steel frame and the wall/floor surface.

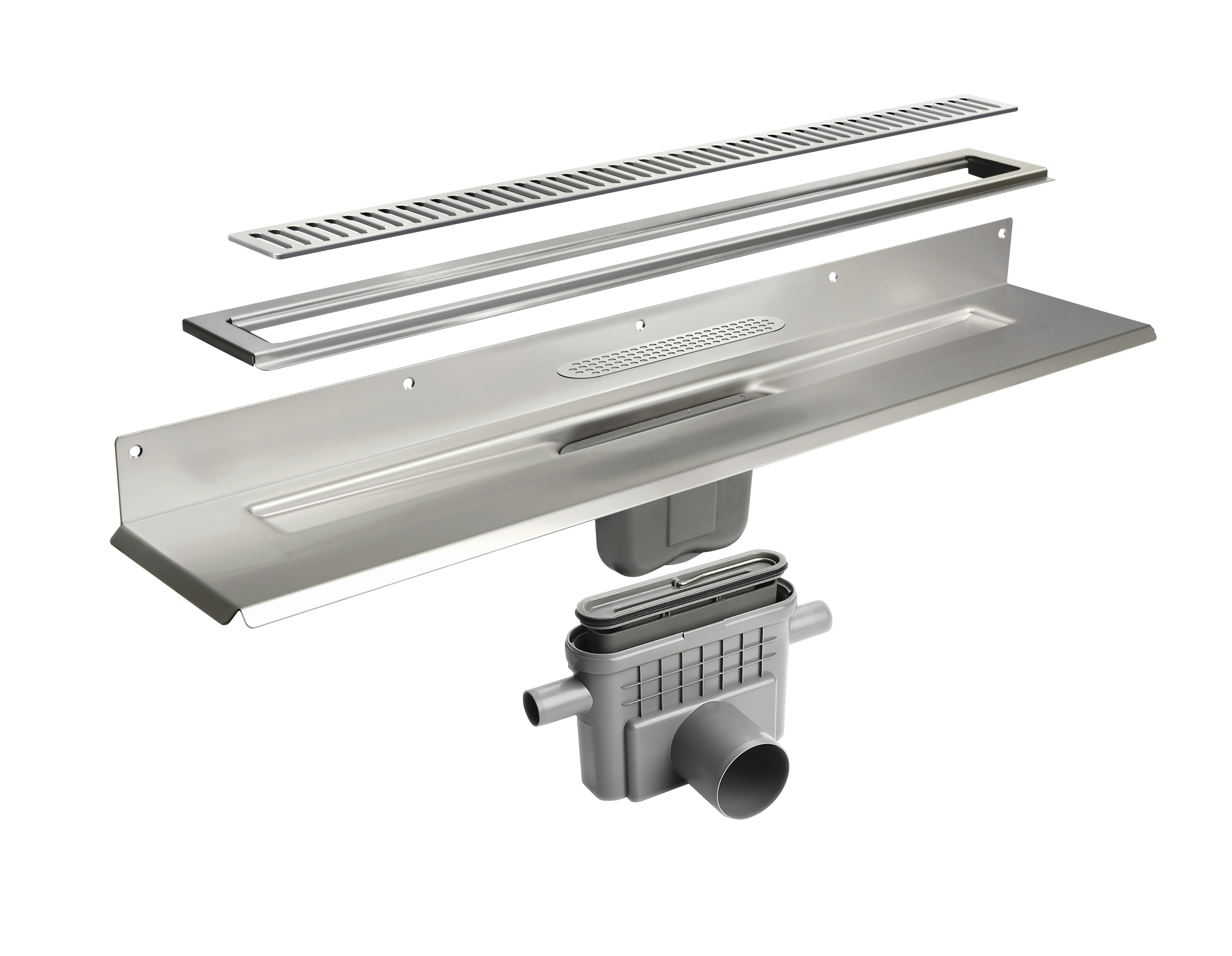

The drain assembly consists of four parts: the floor drain body, the waste trap, the frame, and the grating/panel. The first two parts are installed before pouring the floor, and the last two after waterproofing. The drain is extremely easy to clean thanks to its handle and removable water trap.
The horizontal drain 1433 is manufactured from polypropylene. The outlet pipe diameter is 75 mm. The water trap is pushed down inside the drain until the side connection openings are visible. The drain can be rotated 180 degrees if the outlet pipe needs to be directed backward. The side connection diameter is 32 mm.
The horizontal drain is compatible with fixtures 1001-02-03-04, 1100, 3002, 3004, 5002-03, and 4004.
Features- Ř 75 vertical drain with side connections
- includes a water trap that can be disassembled and cleaned
- capacity: 1.4 l/s
- outlet pipe diameter: 75 mm
- width: 80 mm
- length: 218 mm
- side connection: 2 x 32 mm
- grate material: plastic
- model/type: rectangular
- color: gray
- removable water trap
- The water trap must be pushed down inside the drain below the side connection openings.
- The side connection size is Ř 32 mm, and a Ř 32 mm reducer is included with the drain.
- The drain can be rotated 180° if the waste pipe needs to be directed backward.
