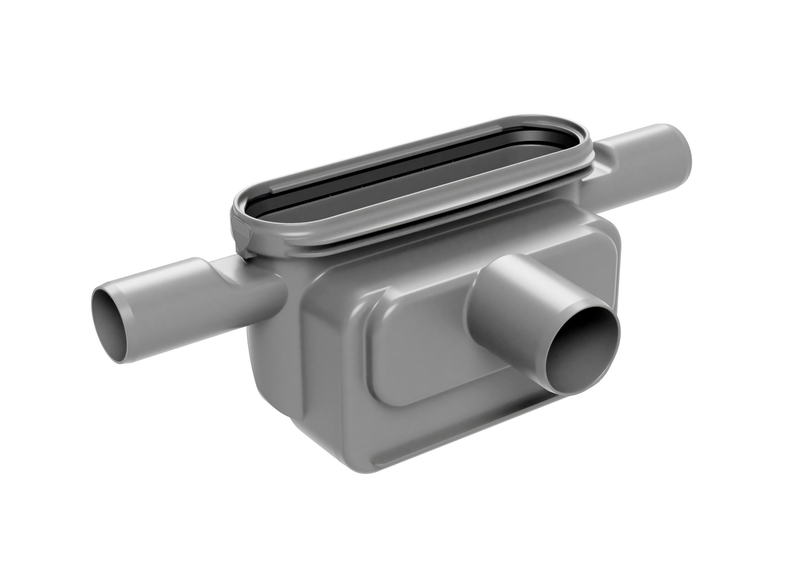

OUTLET UNIT UNIDRAIN 1443 50mm HORIZONTAL
Product code
3308879
The low-profile drain channel has been specifically developed for apartment and prefabricated construction. The new drain channel is lower and features two side connections, enabling the use of all Unidrain’s moisture-safe and user-friendly line drain solutions at any construction site.
The two side connections allow for two simultaneous connections, such as for a sauna dry well, washing machine, or ventilation drainage, while maintaining an extremely low installation height and the required slope in drainage systems.
The product features an ingenious water seal that fits into a compact space while still meeting the required flow capacity and ensuring easy cleaning. The product complies with the EN1253 standard and is STF type-approved. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Floor drain with several connections (EC010568)
Number of extra inlets2
Outer pipe diameter outlet50 mm
Direction of outletHorizontal
Outer pipe diameter inlet40 mm
Drainage capacity1.4 l/s
Width grid40 mm
Length grid218 mm
Product codes
SAPCQX222
HPAC3308879
PLC3308879
GTIN/EAN5707692013152
Manufacturer part number1443.0050
Vendor material number3308879
Basic information
Package measurements (L x W x H)400 x 148 x 195 mm
Package volume11.544 l
Package weight0.8 kg
Base uniteach
Package units1
Package contents–
UNSPSC30181605
BrandUNIDRAIN
VendorVITAS GROUP OY
Documents (8)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)3.744
GWP, uniteach
Source for GWP dataEPD
