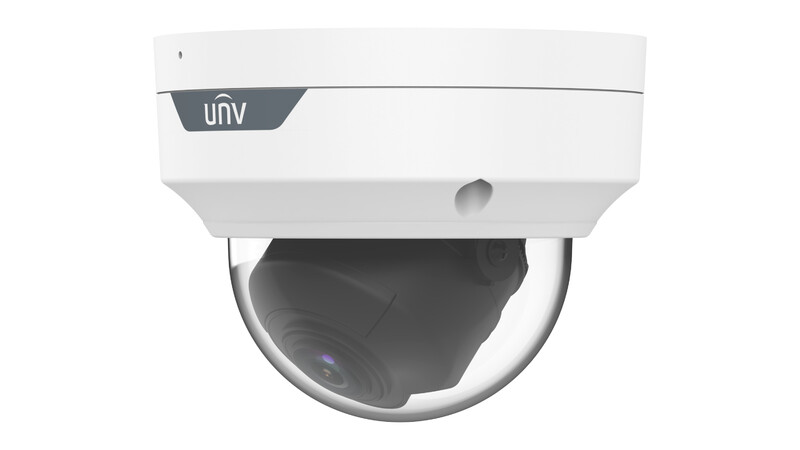

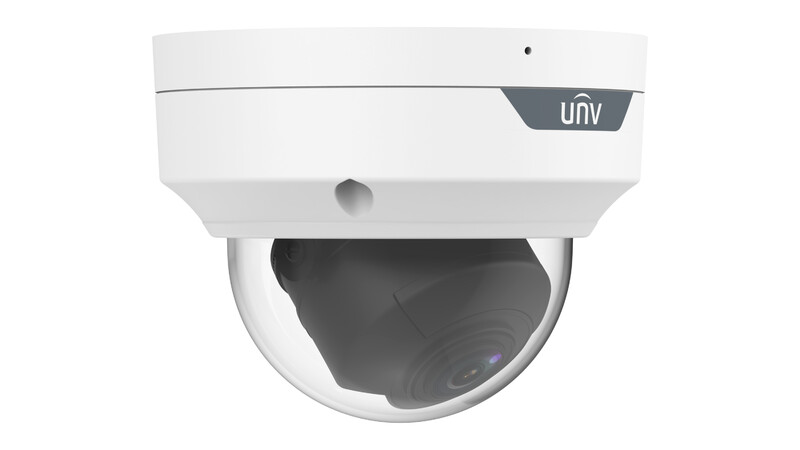

CAMERA-IP PRIME-II DOME 5MP AI 2.8MM HDMI POE
Product code
7133183
Features
- High-quality image with 5MP, 1/2.7" CMOS sensor
- 5MP (2880*1620)@ 30/25(default)fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
- HDMI: 50Hz: 25fps(1080P); 60Hz: 30fps(1080P)
- Video compression standards: Ultra 265, H.265, H.264, MJPEG
- Smart region protection detecting line crossing, intrusion, entry into, and exit from a defined area
- Target classification significantly reduces false alarms caused by leaves, birds, and lights, focusing precisely on humans, motor vehicles, and other vehicles.
- Smart people counting and crowd density monitoring
- Smart intrusion prevention with color search function
- ASM (Auto Scene Match) automatically adjusts camera settings to ensure optimal image quality under various lighting conditions.
- LightHunter technology ensures extremely high image quality in low-light conditions
- 130dB WDR technology enables clear images even in strong light
- Supports vertical imaging with a 9:16 aspect ratio
- Alarm: 1 in/1 out, Audio: 1 in/1 out, HDMI output
- Utilizes Smart IR technology up to 40m range
- 512GB MicroSD card slot
- IK10 vandal-resistant
- Power over Ethernet (PoE)
- NDAA compliant
Product details
Technical specifications
Product class (ETIM)Camera for surveillance system (EC001511)
ModelStandard (Fixed)
Construction typeDome shape
Thermal camerano
Number of pixels (Megapixel)5
Modular (lens and camera separated)no
FocusFixed
Focal size2.8 - 2.8 mm
Motor zoomno
Suitable for wall mountingyes
Suitable for ceiling mountingyes
Suitable for surface mountingyes
Suitable for outdoor useyes
ProtocolTCP/IP
Power over Ethernet (PoE)802.3 af (PoE)
Picture systemPAL
Product codes
SAPDOM159
STK7133183
PLC7133183
GTIN/EAN6937096343053
Manufacturer part numberIPC3515SS-ADF28K-I1-HI
Vendor material numberIPC3515SS-ADF28K-I1-HI
Basic information
Package measurements (L x W x H)137 x 137 x 148 mm
Package volume2.778 l
Package weight0.81 kg
Base uniteach
Package units1
Package contents–
UNSPSC46171610
BrandUNV
VendorFINNSAT OY
