DOORBELL VIDEO DOORBELL 3MP+2MP WIFI6

Product code
7133403

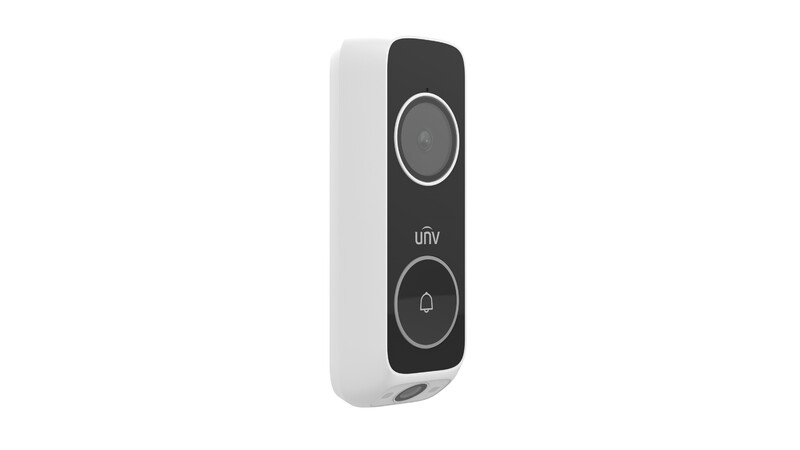

The ED-525B-WB is a dual-lens video doorbell manufactured by Uniview, offering advanced features for home security and visitor management.

Features:
  • Compatible with both mechanical and wireless Sub-1GHz doorbells
  • Compatible with Uniview NVR systems (live view, recordings, alarms)
  • Motion detection, human detection, and package detection, with alerts sent to the UNV-Link app and NVR recorder.
  • Main camera: 3MP, aimed straight ahead for visitor identification. Field of view: 116° horizontal and 82.5° vertical.
  • Lower camera: 2MP, aimed downward for monitoring packages and the area in front of the door. Field of view: 96.8° horizontal and 52.6° vertical.
  • Built-in microphone and speaker
  • Noise cancellation
  • Enhanced visibility in backlight thanks to HDR and WDR technology
  • Visitors can call the UNV-Link mobile app (iOS and Android)
  • Dual-band support (2.4 GHz and 5 GHz) and Bluetooth pairing enable effortless and quick setup. WiFi 6 ensures reliable connectivity and lag-free streaming.
  • Built-in 8 GB eMMC storage - no need for a separate memory card.
  • IP65 weatherproof
  • Operating temperature: -30 °C to +60 °C
  • Power supply: 12–24VAC, 0.8–1.6A
This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Bell push button (EC000132)
ShapeRectangular
With name plateno
With lightingyes
MaterialPlastic
Mounting methodSurface mounted
ColourWhite
Accent colourBlack
Wirelessyes
Built-in depth0 mm
Length27.9 mm
Width55.8 mm
Height156.5 mm
Diameter166.5 mm
Degree of protection (IP)Other

Product codes

SAPDOM137
STK7133403
PLC7133403
GTIN/EAN6937096354653
Manufacturer part numberED-525B-WB
Vendor material number7133403

Basic information

Package measurements (L x W x H)92 x 215 x 67 mm
Package volume1.325 l
Package weight0.299 kg
Base uniteach
Package units1
Package contents
UNSPSC46171618
BrandUNV
VendorFINNSAT OY
