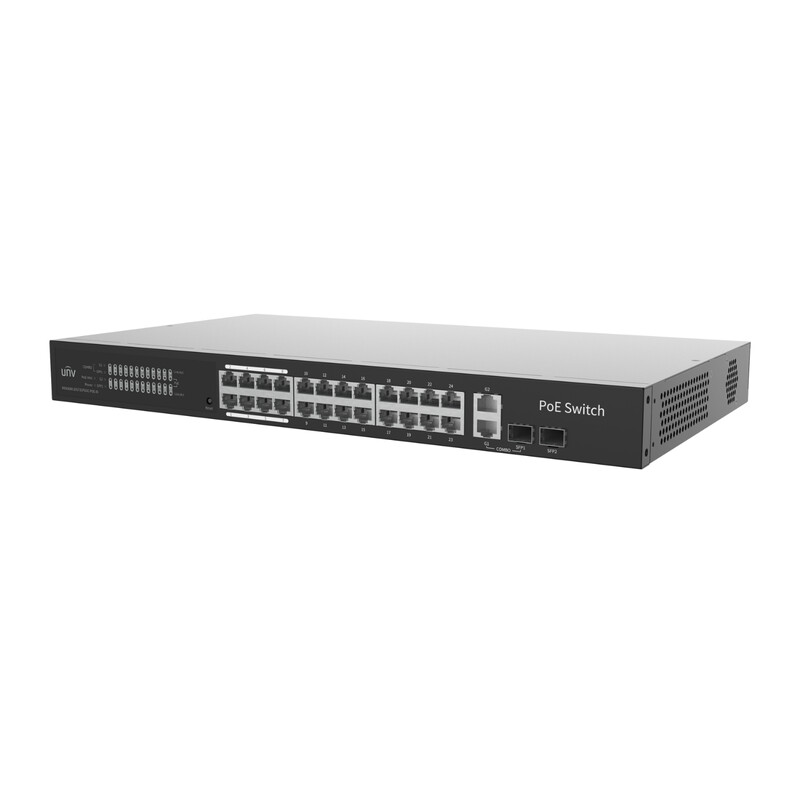

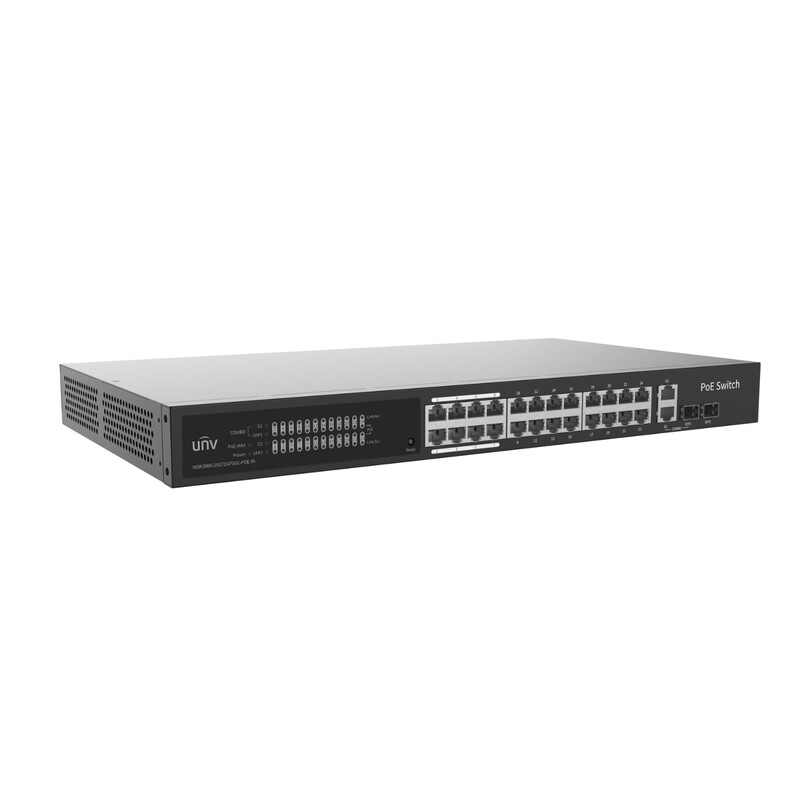

ETHERNET SWITCH 24XPOE+1GE+1SFP+1COMBO
Product code
7419056
The UNV NSW3000 series switches are specifically designed for surveillance applications and demanding network environments. These cloud-managed switches are suitable for enterprises, educational institutions, and office environments.
Features:
Forget manual device addition – simply scan the QR code and add all devices connected to the VLAN network at once using the UNV Link Pro app.
Features:
- 25 ports: 24 PoE ports + 1 RJ45 uplink + 1 SFP + 1 COMBO uplink
- Cloud management: Remote management via app or web interface
- PoE support: Max. 370 W, individual port up to 30 W
- Extended range: Up to 250 meters in extended mode
- Automatic topology creation: Detects video devices and generates a network map
- Port prioritization and power management: Priority for critical devices during congestion
- Durable metal housing and quiet fan
- Switching capacity: 54 Gbps
Forget manual device addition – simply scan the QR code and add all devices connected to the VLAN network at once using the UNV Link Pro app.
- See all devices at a glance in the map view
- Devices are automatically recognized
- Restart IP cameras remotely with a single tap
Product details
Technical specifications
Product class (ETIM)Network switch (EC000734)
Ethernetyes
Number of ports 10/100 Mbps RJ450
Number of ports 10/100/1000 Mbps RJ4525
Number of ports 1000 Mbps RJ450
Number of ports 10 Gbps RJ450
Number of ports 10 Gbps Mini GBIC0
Number of ports 100/1000 Mbps Mini GBIC1
Number of ports 1000 Mbps Mini GBIC0
Number of ports 40 Gbps Mini GBIC0
Number of ports 100 Gbps Mini GBIC0
Number of combination-ports RJ45/Mini GBIC1
Number of ports 1000 Mbps GBIC0
Number of ports 10/100 Mbps M120
Number of ports 100 Mbps SC0
Number of ports 1000 Mbps SC (SX)0
Product codes
SAPDLW830
STK7419056
PLC7419056
GTIN/EAN6937096341141
Manufacturer part numberNSW3000-25GT1GP1GC-POE-IN
Vendor material numberNSW3000-25GT1GP1GC-POE
Basic information
Package measurements (L x W x H)582 x 261 x 97 mm
Package volume14.734 l
Package weight3.56 kg
Base uniteach
Package units1 / 8
Package contents–
UNSPSC43201814
BrandUNV
VendorFINNSAT OY
