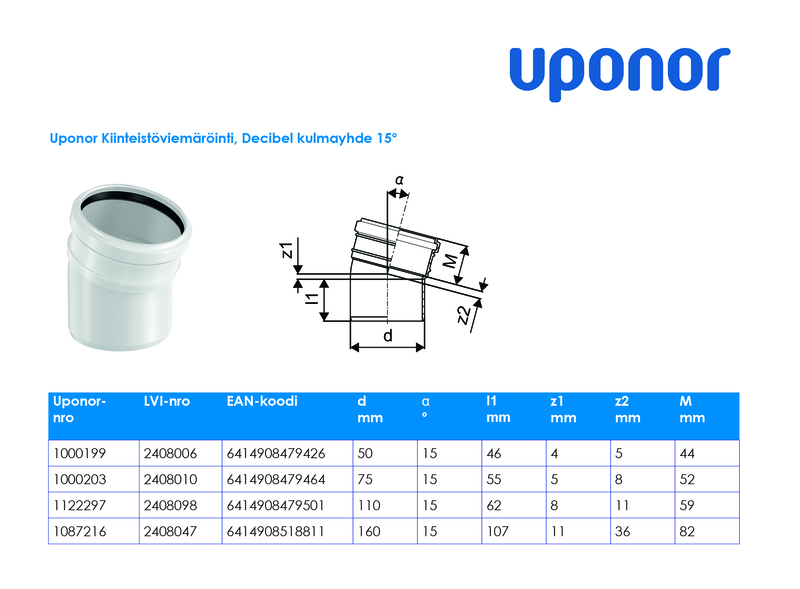

DB BEND DECIBEL 160x15 PP
Product code
2408047
Uponor Decibel is a sound-dampening, pressure-free building drainage system for internal drainage in new construction and renovation projects. The system is quick to install and easy to work with.
Mineral-reinforced polypropylene, multi-layer construction, and high specific gravity make the Decibel system quiet. Decibel is particularly suitable for acoustically demanding applications.
The white-colored system covers the most common pipe sizes of 50, 75, 110, and 160 mm. The wide range is complemented by the pre-cast and ready-to-install Decibel base angle. Decibel is directly compatible with the Uponor HTP system. Uponor has prepared a handbook containing acoustic and fire safety design guidelines for the Decibel drainage system. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Polypropylene (PP)
Material connection 2Polypropylene (PP)
ShapeBend
Model1-part
Bend angle15 °
Reducingno
Eccentricno
Outer pipe diameter connection 1160 mm
Connection 1Slide sleeve
Outer pipe diameter connection 2160 mm
Connection 2Slide end
Ring stiffness classSN4
Product codes
SAPCCS847
HPAC2408047
PLC2408047
GTIN/EAN6414908518811
Manufacturer part number1087216
Vendor material number2408047
Basic information
Package measurements (L x W x H)260 x 180 x 180 mm
Package volume8.424 l
Package weight1.12 kg
Base uniteach
Package units1 / 10 / 80
Package contents–
UNSPSC40141720
BrandUPONOR
VendorUPONOR INFRA OY
The country of origin stated by the supplierFinland
Documents (9)
Certificates
Images
Brochures & documents
Links
Environment and safety
Features
Made from PVCNo
Warranty (years)2
RecyclableYes
