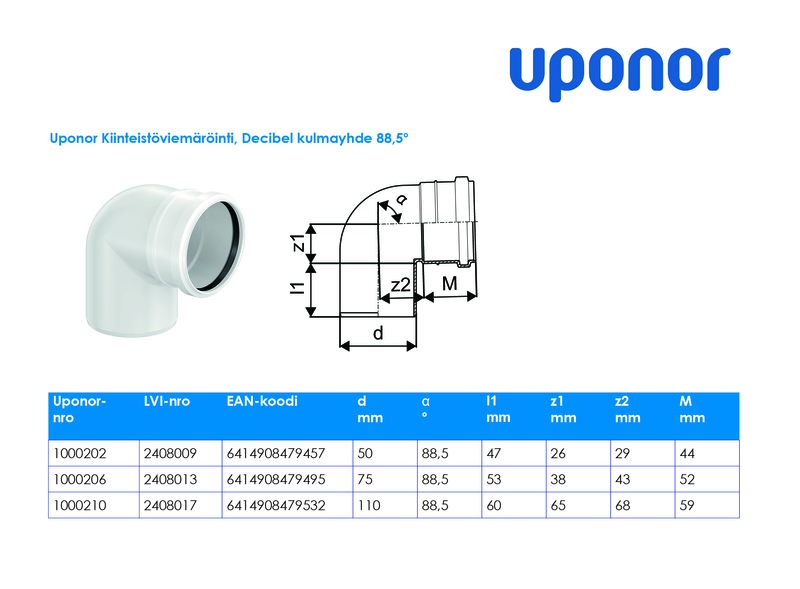

DB BEND DECIBEL 50x88,5 PP
Product code
2408009
Uponor Decibel is a noise-reducing, pressure-free building drainage system for internal drainage in new construction and renovation projects. The system is quick to install and easy to work with.
Mineral-reinforced polypropylene, multi-layer structure, and high specific weight make the Decibel system quiet. Decibel is particularly suitable for acoustically demanding applications.
The white-colored system covers the most common pipe sizes of 50, 75, 110, and 160 mm. The wide range is complemented by a pre-cast and ready-to-install Decibel base elbow. Decibel is directly compatible with the Uponor HTP system. Uponor has prepared a handbook containing acoustic and fire safety design guidelines for the Decibel drainage system.
Features
- outer pipe diameter 50mm
- bend angle 88.5°
- color white
- material PP plastic
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Polypropylene (PP)
Material connection 2Polypropylene (PP)
ShapeBend
Model1-part
Bend angle85.5 °
Reducingno
Eccentricno
Outer pipe diameter connection 150 mm
Connection 1Slide sleeve
Outer pipe diameter connection 250 mm
Connection 2Slide end
Ring stiffness classSN4
Product codes
SAPCCB128
HPAC2408009
PLC2408009
GTIN/EAN6414908479457
Manufacturer part number1000202
Vendor material number2408009
Basic information
Package measurements (L x W x H)100 x 100 x 65 mm
Package volume0.65 l
Package weight0.08 kg
Base uniteach
Package units1 / 20 / 960
Package contents–
UNSPSC40141720
BrandUPONOR
VendorUPONOR INFRA OY
The country of origin stated by the supplierFinland
Documents (7)
Certificates
Images
Brochures & documents
Links
Environment and safety
Features
Made from PVCNo
Warranty (years)2
RecyclableYes
