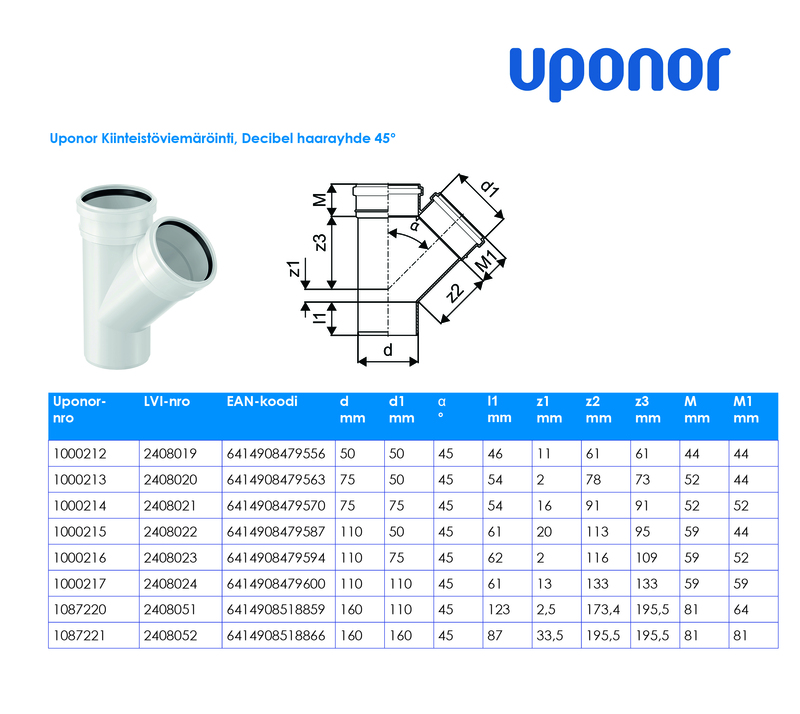

DB BRANCH DECIBEL 160x110x45 PP
Product code
2408051
Uponor Decibel is a sound-dampening, pressure-free building drainage system for internal drainage in new construction and renovation projects. The system is quick to install and easy to work with.
Mineral-reinforced polypropylene, multi-layer construction, and high specific gravity make the Decibel system quiet. Decibel is particularly suitable for acoustically demanding applications.
The white-colored system covers the most common pipe sizes of 50, 75, 110, and 160 mm. The wide range is complemented by the pre-cast and ready-to-install Decibel base angle. Decibel is directly compatible with the Uponor HTP system. Uponor has prepared a handbook containing acoustic and fire safety design guidelines for the Decibel drainage system. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 3 connections (EC003025)
Material connection 1Polypropylene (PP)
Material quality connection 1Other
Surface protection connection 1Untreated
Material connection 2Polypropylene (PP)
Material quality connection 2Other
Surface protection connection 2Untreated
Material connection 3Polypropylene (PP)
Material quality connection 3Other
Surface protection connection 3Untreated
ModelT-piece
Angle45 °
Reducingyes
Outer pipe diameter connection 1160 mm
Connection 1Slide sleeve
Outer pipe diameter connection 2110 mm
Product codes
SAPCCS841
HPAC2408051
PLC2408051
GTIN/EAN6414908518859
Manufacturer part number1087220
Vendor material number2408051
Basic information
Package measurements (L x W x H)430 x 300 x 185 mm
Package volume23.865 l
Package weight2.15 kg
Base uniteach
Package units1 / 4 / 32
Package contents–
UNSPSC40141914
BrandUPONOR
VendorUPONOR INFRA OY
The country of origin stated by the supplierFinland
Documents (9)
Certificates
Images
Brochures & documents
Links
Environment and safety
Features
Made from PVCNo
Warranty (years)2
RecyclableYes
