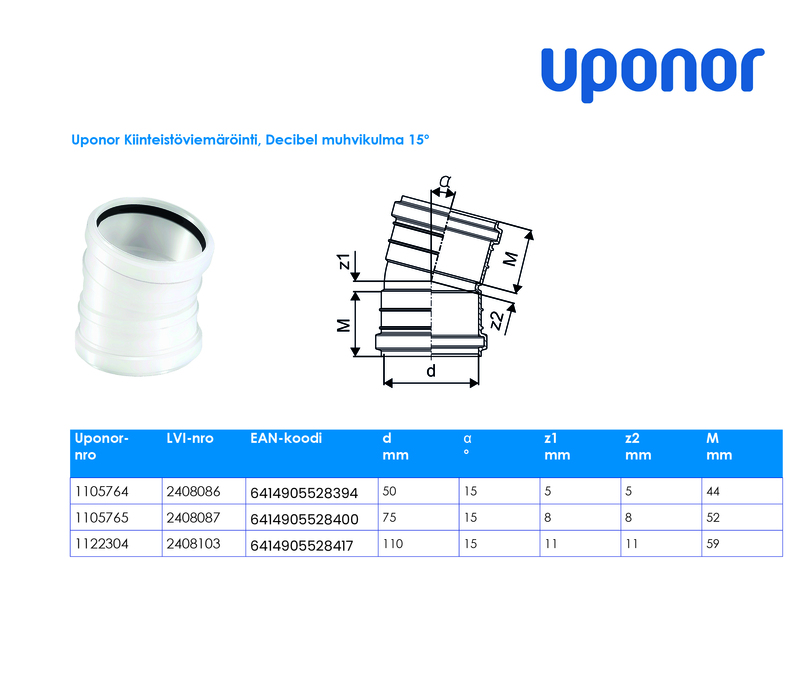

DB SOCKET BEND DECIBEL 110x15 PP
Product code
2408103
Uponor Decibel 110 mm diameter elbow with 15 degree bend. Material: mineral-filled polypropylene. Uponor Decibel is a noise-reducing gravity building drainage system used for internal building drainage in both new construction and renovation projects. The Decibel system is compatible with the traditional Uponor HTP building drainage system. The Decibel system is particularly used in acoustically demanding applications. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Polypropylene (PP)
Material connection 2Polypropylene (PP)
ShapeBend
Bend angle15 °
Reducingno
Eccentricno
Nominal diameter connection 1DN 110
Outer pipe diameter connection 1110 mm
Connection 1Slide sleeve
Nominal diameter connection 2DN 110
Outer pipe diameter connection 2110 mm
Connection 2Slide sleeve
Ring stiffness classSN4
Product codes
SAPCPE130
HPAC2408103
PLC2408103
GTIN/EAN6414905665440
Manufacturer part number1122304
Vendor material number1122304
Basic information
Package measurements (L x W x H)130 x 130 x 155 mm
Package volume2.62 l
Package weight0.38 kg
Base uniteach
Package units1 / 20 / 240
Package contents–
UNSPSC40141720
BrandUPONOR
VendorUPONOR INFRA OY
The country of origin stated by the supplierFinland
Documents (5)
Certificates
Images
Brochures & documents
Links
Environment and safety
Features
Made from PVCNo
Warranty (years)2
RecyclableYes
