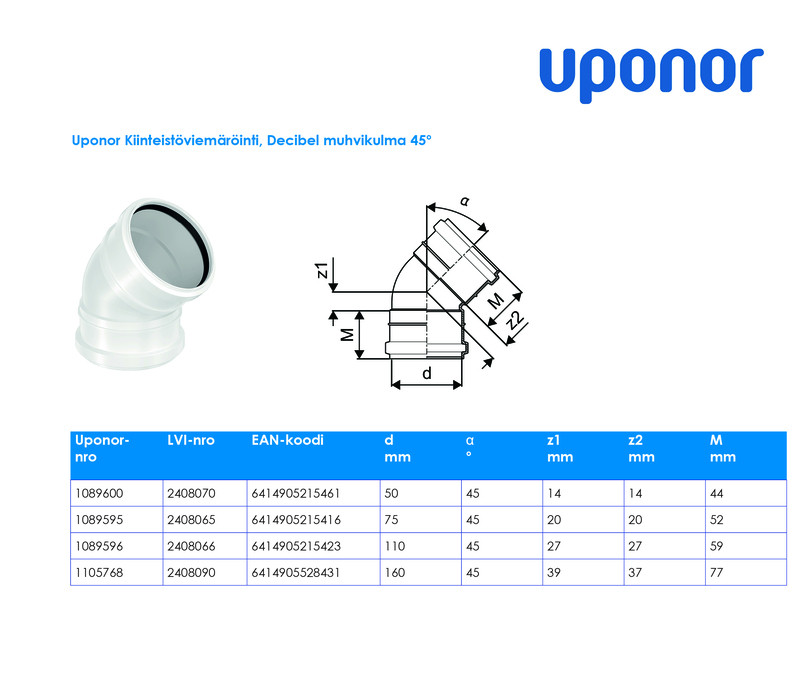

DB SOCKET BEND DECIBEL 50x45 PP
Product code
2408070
Uponor Decibel is a sound-dampening, pressure-free building drainage system for internal drainage in new construction and renovation projects. The system is quick to install and easy to work with.
Mineral-reinforced polypropylene, multi-layer construction, and high specific gravity make the Decibel system quiet. Decibel is particularly suitable for acoustically demanding applications.
The white-colored system covers the most common pipe sizes of 50, 75, 110, and 160 mm. The wide range is complemented by the pre-cast and ready-to-install Decibel base angle. Decibel is directly compatible with the Uponor HTP system. Uponor has prepared a handbook containing acoustic and fire safety design guidelines for the Decibel drainage system. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Polypropylene (PP)
Material connection 2Polypropylene (PP)
ShapeBend
Bend angle45 °
Reducingno
Eccentricno
Outer pipe diameter connection 150 mm
Connection 1Slide sleeve
Outer pipe diameter connection 250 mm
Connection 2Slide sleeve
Ring stiffness classSN4
Product codes
SAPCDW656
HPAC2408070
PLC2408070
GTIN/EAN6414905215461
Manufacturer part number1089600
Vendor material number2408070
Basic information
Package measurements (L x W x H)130 x 70 x 65 mm
Package volume0.592 l
Package weight0.09 kg
Base uniteach
Package units1 / 20 / 960
Package contents–
UNSPSC40141720
BrandUPONOR
VendorUPONOR INFRA OY
The country of origin stated by the supplierFinland
Documents (9)
Certificates
Images
Brochures & documents
Links
Environment and safety
Features
Made from PVCNo
Warranty (years)2
RecyclableYes
