DECIBEL SOCKET BRANCH 160/160X45

Product code
2408093

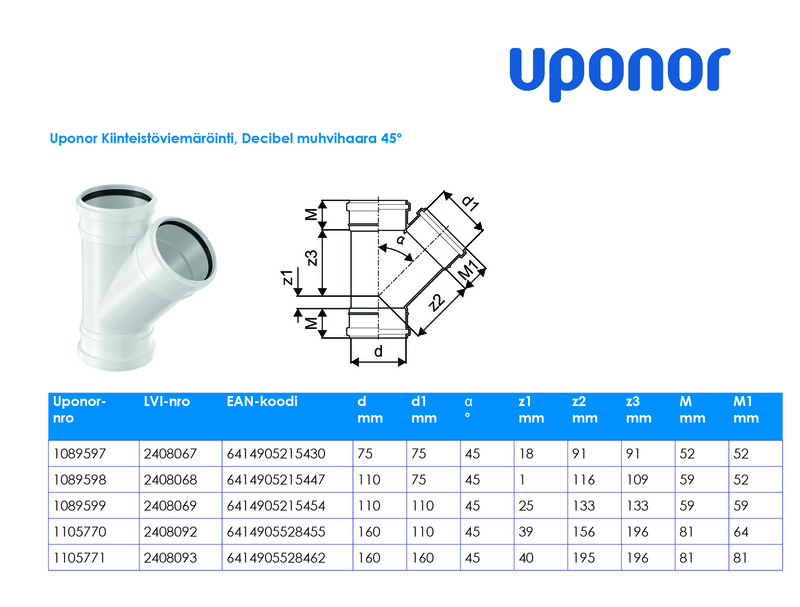

Uponor Decibel wye branch with 160/160 mm diameters and 45-degree bend angle. Material: mineral-filled polypropylene. Uponor Decibel is a noise-reducing, non-pressurized building drainage system used for internal building drainage in both new construction and renovation projects. The Decibel system is compatible with the traditional Uponor HTP building drainage system. The Decibel system is particularly used in acoustically demanding applications. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Fitting with 3 connections (EC003025)
Material connection 1Polypropylene (PP)
Material connection 2Polypropylene (PP)
Material connection 3Polypropylene (PP)
ModelY-piece
Angle45 °
Nominal diameter connection 1DN 160
Outer pipe diameter connection 1160 mm
Connection 1Slide sleeve
Nominal diameter connection 2DN 160
Outer pipe diameter connection 2160 mm
Connection 2Slide sleeve
Nominal diameter connection 3DN 160
Outer pipe diameter connection 3160 mm
Connection 3Slide sleeve

Product codes

SAPCKR937
HPAC2408093
PLC2408093
GTIN/EAN6414905528462
Manufacturer part number1105771
Vendor material number2408093

Basic information

Package measurements (L x W x H)400 x 350 x 190 mm
Package volume26.6 l
Package weight2.58 kg
Base uniteach
Package units1 / 4 / 32
Package contents
UNSPSC40141720
BrandUPONOR
VendorUPONOR INFRA OY
The country of origin stated by the supplierFinland

Environment and safety

Features

Made from PVCNo
Warranty (years)2
RecyclableYes

Manufacturer

NameUponor Infra Oy
Postal addressKouvolantie 365, 15561 Nastola
