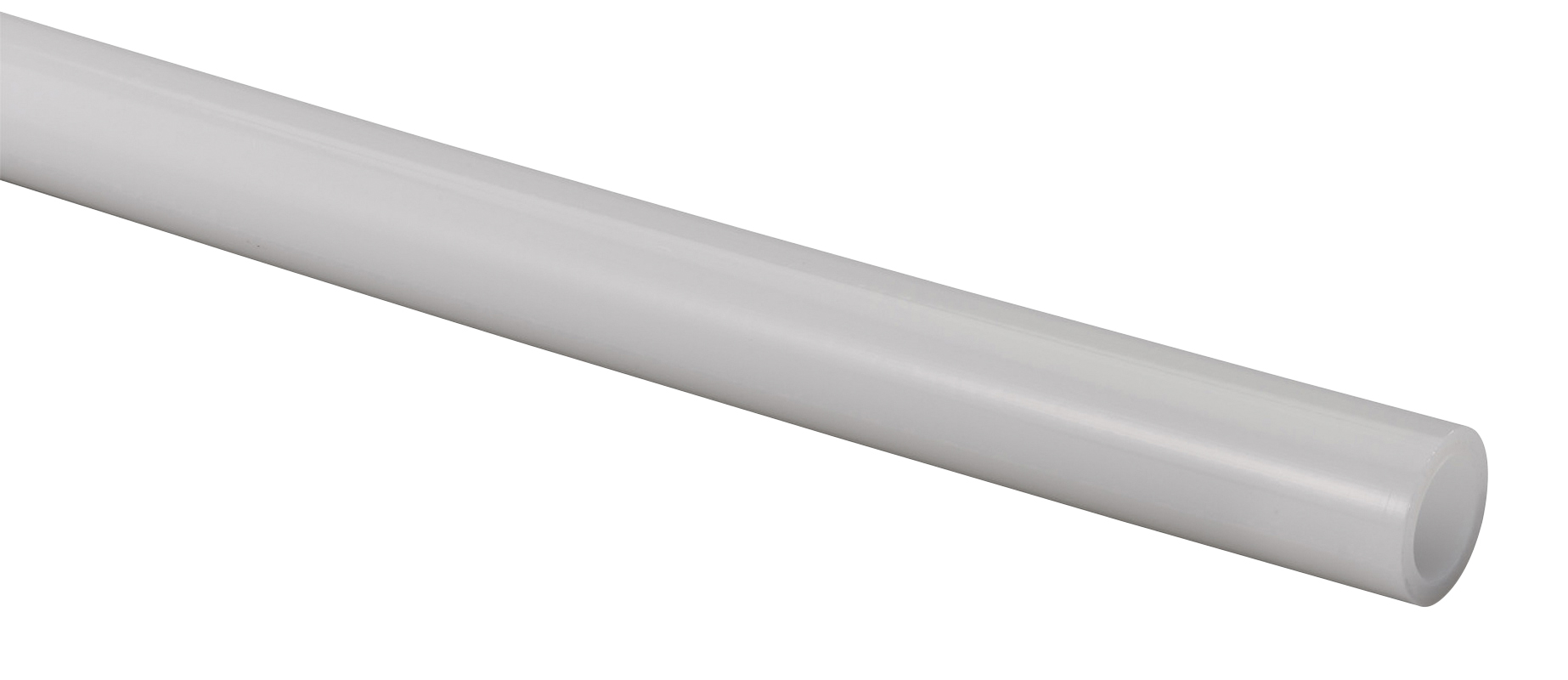

FLOOR HEATING PIPE COMFORT+ 20x2,0 60m
Product code
2018156
The pipes are oxygen diffusion protected. Material PEX-a. Used as flow pipe for underfloor heating. Material requirement approx. 4 m/m² (spacings 300 mm) 0.6 MPa/70/95°C. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Plastic pipe smooth (EC010882)
MaterialPolyethylene (PE)
Material qualityPE-Xa
Diffusion-proofyes
Nominal diameterDN 20
Outer pipe diameter20 mm
Wall thickness2 mm
Connection 1Tube end
Connection 2Tube end
Article compression classPN 6
Max. medium temperature (momentarily)100 °C
Max. operating pressure at 20 °C6 bar
With mantle pipeno
Pipe colourWhite
Wall roughness0 mm
Expansion coefficient0.14 mm/(m.K)
Product codes
SAPAAN929
HPAC2018156
PLC2018156
GTIN/EAN7321500044329
Manufacturer part number1009229
Vendor material number2018156
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume1.13 l
Package weight0.128 kg
Base unitMeter
Package units60
Package contents–
UNSPSC40141914
BrandUPONOR
VendorUPONOR SUOMI OY
The country of origin stated by the supplierFinland
Documents (7)
Environment and safety
Features
Made from PVCNo
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.448
GWP, unitMeter
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000468
