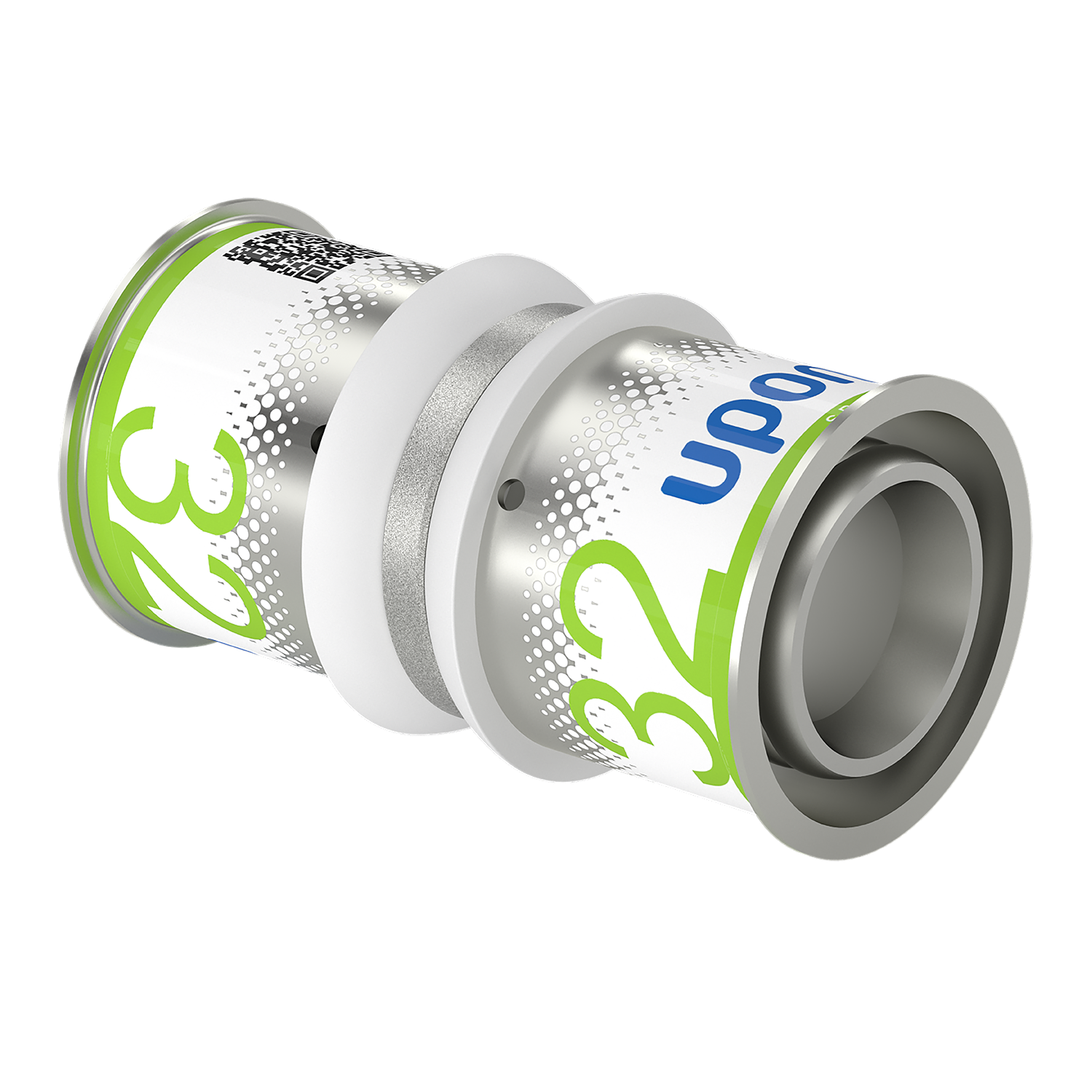

STRAIGHT COUPLING UPONOR 32x32 S-PRESS PLUS DR
Product code
1720738
S-Press PLUS is Uponor's fitting system for composite pipes. The fittings feature a stainless steel compression sleeve with an inspection window, and the compression jaw positioning is easy. An uncompressed fitting leaks during pressure testing. The fitting size is clearly marked with a number and color code that detaches during compression. The material of the metal fittings is DR brass. Ensure the compression jaw is suitable for installation by confirming with the jaw manufacturer if you are unsure about jaw compatibility or are not using an Uponor-approved compression jaw. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Brass
Material quality connection 1Dezincification resistant brass (DZR)
Surface protection connection 1Tinned
Material connection 2Brass
Material quality connection 2Dezincification resistant brass (DZR)
Surface protection connection 2Tinned
ShapeStraight
Reducingno
Eccentricno
Nominal diameter connection 1DN 32
Outer pipe diameter connection 132 mm
Connection 1Press sleeve
Nominal diameter connection 2DN 32
Outer pipe diameter connection 232 mm
Connection 2Press sleeve
Product codes
SAPCGT954
HPAC1720738
PLC1720738
GTIN/EAN6414905468522
Manufacturer part number1070550
Vendor material number1720738
Basic information
Package measurements (L x W x H)38 x 38 x 69 mm
Package volume0.1 l
Package weight0.16 kg
Base uniteach
Package units1 / 5 / 40 / 1920
Package contents–
UNSPSC40141720
BrandUPONOR
VendorUPONOR SUOMI OY
Documents (7)
Certificates
Brochures & documents
Links
Environment and safety
Features
Type ApprovalYes
Warranty (years)2
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.712
GWP, uniteach
Source for GWP dataEPD
