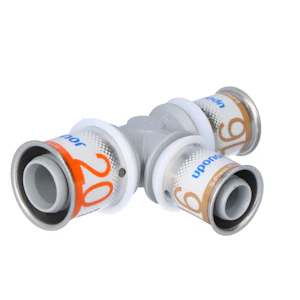

REDUCER TEE PPSU S-PRESS PLUS 20-16-16
Product code
1720706
S-Press PLUS is Uponor's composite pipe fitting system. The fittings feature a stainless steel compression sleeve with an inspection window, and the compression jaw positioning is easy. An uncompressed fitting leaks during pressure testing. The fitting size is clearly marked with a number and color code that detaches during compression. The body material is PPSU plastic. Ensure you use a compatible compression jaw from the jaw manufacturer if you are unsure about jaw compatibility or are not using an Uponor-approved compression jaw. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 3 connections (EC003025)
Material connection 1Other
Material connection 2Other
Material connection 3Other
ModelT-piece
Angle90 °
Reducingyes
Outer pipe diameter connection 120 mm
Connection 1Press sleeve
Outer pipe diameter connection 216 mm
Connection 2Press sleeve
Outer pipe diameter connection 316 mm
Connection 3Press sleeve
Length of connection 137 mm
Working length connection 116 mm
Length of connection 236 mm
Product codes
SAPCHN656
HPAC1720706
PLC1720706
GTIN/EAN6414905635368
Manufacturer part number1039949
Vendor material number1720706
Basic information
Package measurements (L x W x H)71 x 46 x 27 mm
Package volume0.088 l
Package weight0.032 kg
Base uniteach
Package units1 / 10 / 40 / 3840
Package contents–
UNSPSC40141720
BrandUPONOR
VendorUPONOR SUOMI OY
Documents (13)
Environment and safety
Features
Type ApprovalYes
Warranty (years)2
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.2608
GWP, uniteach
Source for GWP dataEPD
