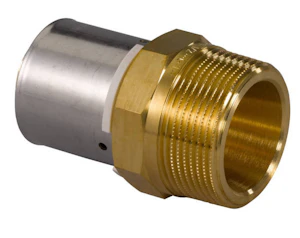

STRAIGHT COUPLING MT UPONOR 40x1 1/4 DR
Product code
1723873
Uponor S-Press compression fittings for Uponor composite pipes. The fitting material is DR brass. The fittings can be used for potable water, heating, and cooling. An uncompressed fitting leaks during pressure testing. An uncompressed fitting can be identified by the three grooves in the compression sleeve (the sleeve of an uncompressed fitting is smooth). Different fitting sizes are indicated by differently colored rings, and the fitting ring cannot be removed. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Brass
Material quality connection 1Dezincification resistant brass (DZR)
Surface protection connection 1Tinned
Material connection 2Brass
Material quality connection 2Dezincification resistant brass (DZR)
Surface protection connection 2Tinned
ShapeStraight
Eccentricno
Outer pipe diameter connection 140 mm
Connection 1Press sleeve
Nominal diameter connection 21 1/4 inch (32)
Connection 2External thread conical BSPT-R (ISO 7-1 / EN 10226-1)
Max. operating pressure at 20 °C10 bar
Product codes
SAPALR584
HPAC1723873
PLC1723873
GTIN/EAN4021598114388
Manufacturer part number1046942
Vendor material number1723873
Basic information
Package measurements (L x W x H)75 x 55 x 42 mm
Package volume0.173 l
Package weight0.4 kg
Base uniteach
Package units1 / 5 / 875
Package contents–
UNSPSC40141720
BrandUPONOR
VendorUPONOR SUOMI OY
Documents (5)
Environment and safety
Features
Type ApprovalYes
Warranty (years)2
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.656
GWP, uniteach
Source for GWP dataEPD
