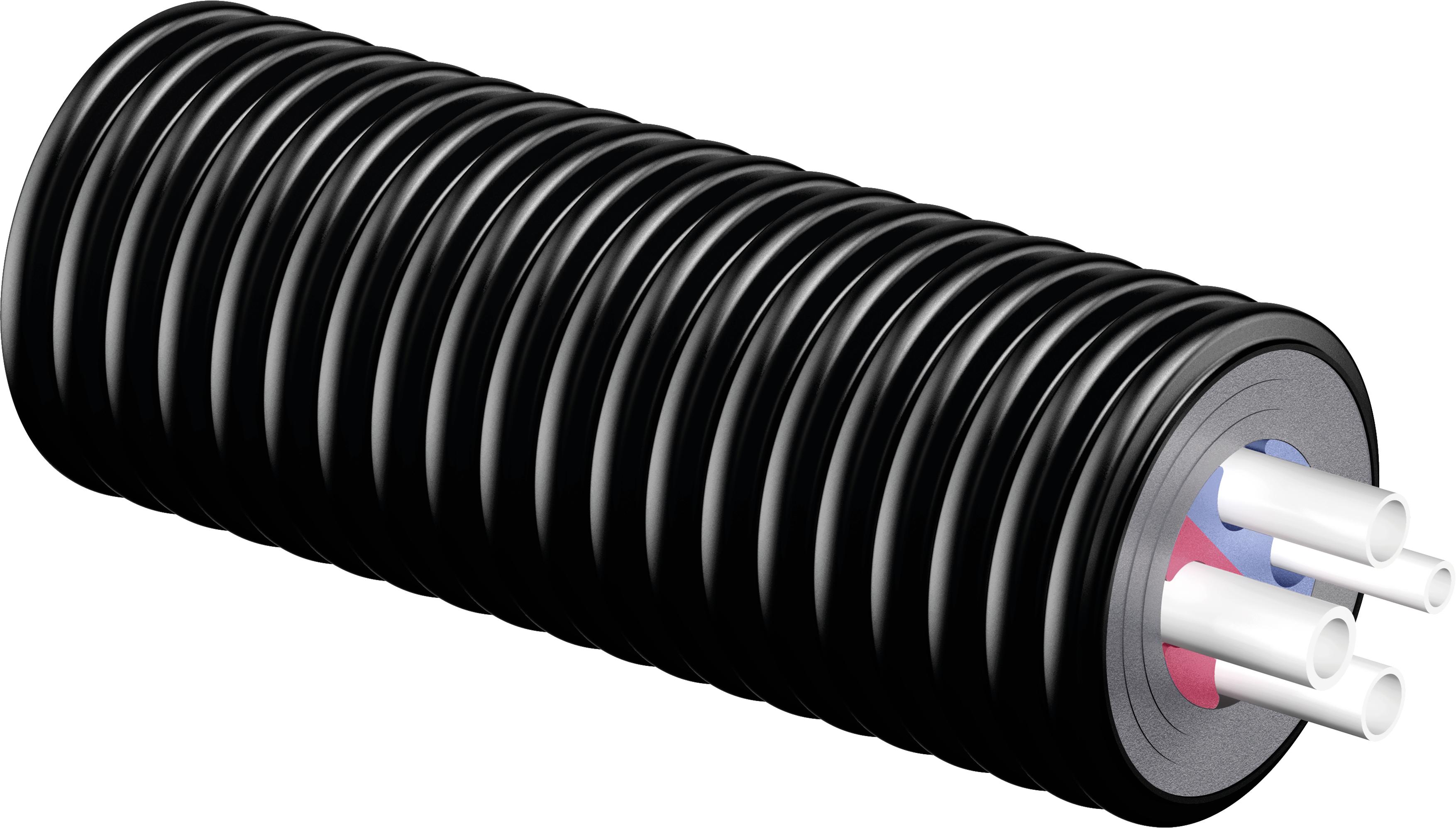

UPONOR ECOFLEX QUATTRO 2x40/32+20/200
Product code
3010150
Uponor Ecoflex Quattro is a four-pipe element that allows both the heating network and the domestic hot water network to be managed with a single element. Two of the flow pipes are intended for heating water and two for domestic hot water. The flow pipes of the heat pipes have oxygen diffusion barrier to prevent oxygen from entering the circulating water. Pressure class: heating PN6 and domestic water PN10. Maximum continuous operating temperature 70°C EN15875 (heating 80°C EN 15632), temporarily 95°C. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Pre-insulated plastic pipe (EC011704)
Number of inner pipes4
Material inner pipePE-Xa
Diameter inner pipe40 mm
Wall thickness inner pipe3.7 mm
Diameter inner pipe 240 mm
Wall thickness inner pipe 23.7 mm
Diameter inner pipe 332 mm
Wall thickness inner pipe 34.4 mm
Diameter inner pipe 420 mm
Wall thickness inner pipe 42.8 mm
Colour inner pipeWhite
With mantle pipeyes
Outer diameter mantle pipe200 mm
Material mantle pipeHigh-density polyethylene (HDPE)
Colour mantle pipeBlack
Product codes
SAPCFL537
HPAC3010150
PLC3010150
GTIN/EAN4021598133204
Manufacturer part number1084891
Vendor material number3010150
Basic information
Package measurements (L x W x H)1000 x 175 x 175 mm
Package volume30.625 l
Package weight3.5 kg
Base unitMeter
Package units1 / 100
Package contents–
UNSPSC40141914
BrandUPONOR
VendorUPONOR SUOMI OY
The country of origin stated by the supplierFinland
Documents (2)
Brochures & documents
Links
Environment and safety
Features
Made from PVCNo
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)10.92
GWP, unitMeter
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
