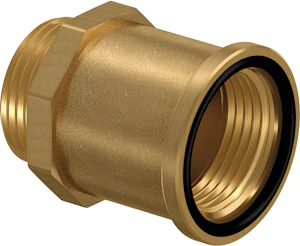

WALL ANCHOR WIPEX 1 MALE/FEMALE 1018302
Product code
1938025
Uponor Wipex anchor fitting uk/sk contains 1 piece of silicone rubber O-rings. Material: DR brass. Pressure resistance: 6 bar/SDR11 or 10 bar/SDR7.4. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Brass
Material quality connection 1Dezincification resistant brass (DZR)
Material connection 2Brass
Material quality connection 2Dezincification resistant brass (DZR)
ShapeStraight
Reducingno
Eccentricno
Nominal diameter connection 11 inch (25)
Connection 1External thread cylindrical BSPP-G (ISO 228-1)
Nominal diameter connection 21 inch (25)
Connection 2Internal thread cylindrical BSPP-G (ISO 228-1)
Max. operating pressure at 20 °C10 bar
Product codes
SAPAMB607
HPAC1938025
PLC1938025
GTIN/EAN7331541099721
Manufacturer part number1018302
Vendor material number1938025
Basic information
Package measurements (L x W x H)54 x 42.5 x 42.5 mm
Package volume0.098 l
Package weight0.218 kg
Base uniteach
Package units1 / 30
Package contents–
UNSPSC40141720
BrandUPONOR
VendorUPONOR SUOMI OY
