WORK PLACE CENTRE PINSERI PINSERI 125.0313 125A IP44 FE
Product code
3436836

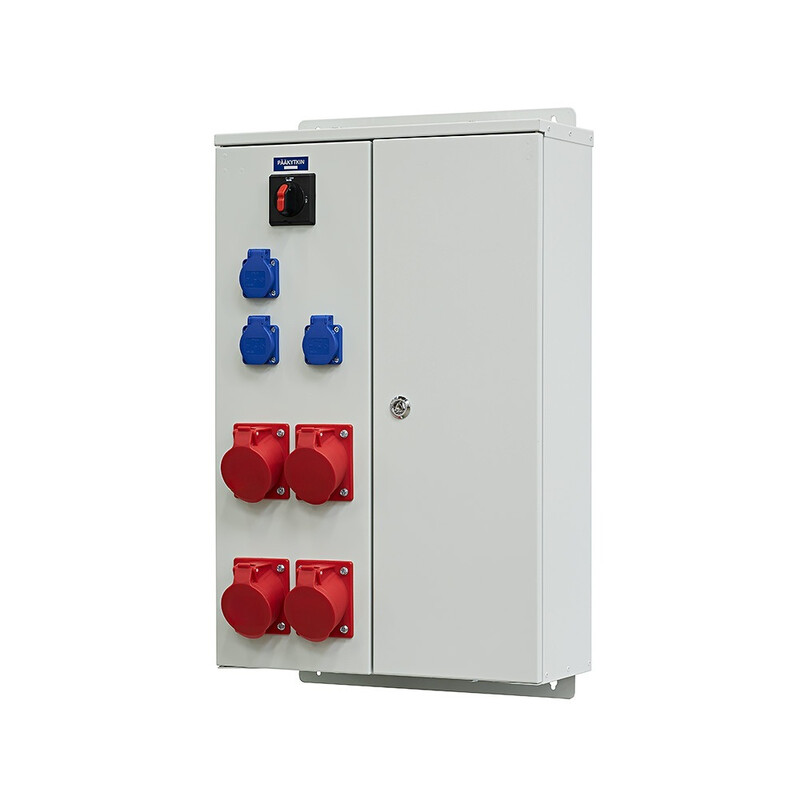

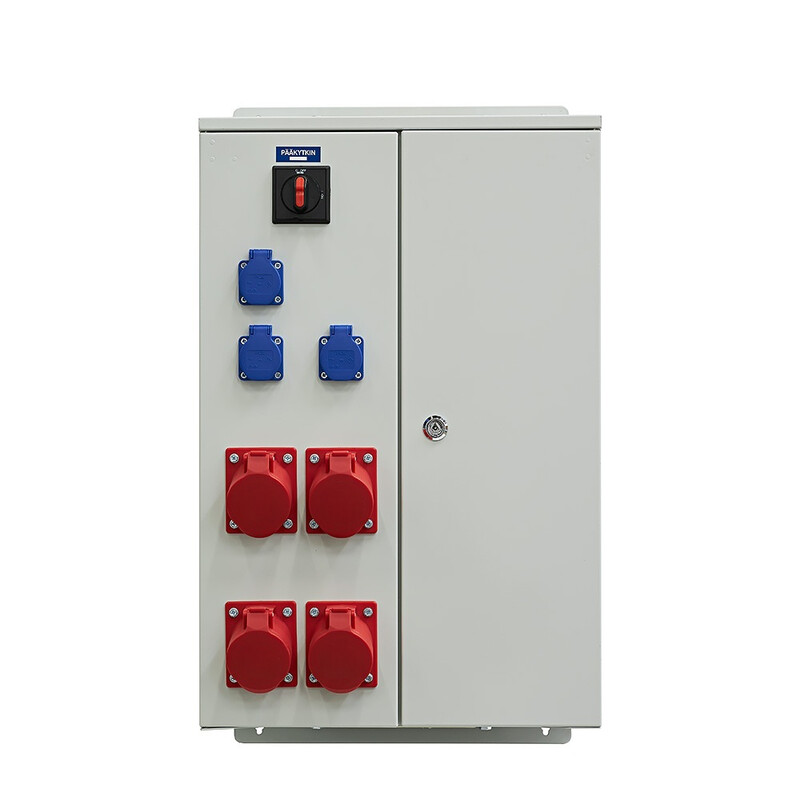

IP44 socket center. Enclosure made of galvanized steel. Exterior color RAL 7035. Sockets protected by 30mA residual current device. Sockets: 3 pieces (5x32A), 1 piece (5x16A), and 3 pieces (Suko). Optional accessory: saddle flap (3436820). This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)CEE socket outlet combination (IEC 60309) (EC000379)
CEE socket outlet 16 A1x16A5p400V
CEE socket outlet 32 A3x32A5p400V
CEE socket outlet 63 ANone
CEE socket outlet 125 ANone
Number of socket outlets with protective contact CEE 7/3 (type F)3
Number of socket outlets with protective contact CEE 7/5 (type E)0
Number of socket outlets Danish standard (earthing pin, type K)0
Number of socket outlets Swiss standard type 130
Number of socket outlets Swiss standard type 150
Number of socket outlets Swiss standard type 230
Number of socket outlets Swiss standard type 250
Other fixtures and/or empty locations0
Power loss0 W
ProtectionOvercurrent switch
Leakage current typeA
Product codes
SAPDKY063
STK3436836
PLC3436836
GTIN/EAN6438526003696
Manufacturer part numberPINSERI125.0313
Vendor material number3436836
Basic information
Package measurements (L x W x H)270 x 460 x 775 mm
Package volume96.255 l
Package weight17.2 kg
Base uniteach
Package units1 / 8
Package contents–
UNSPSC39121105
BrandUTU
VendorUTU OY
The country of origin stated by the supplierFinland
