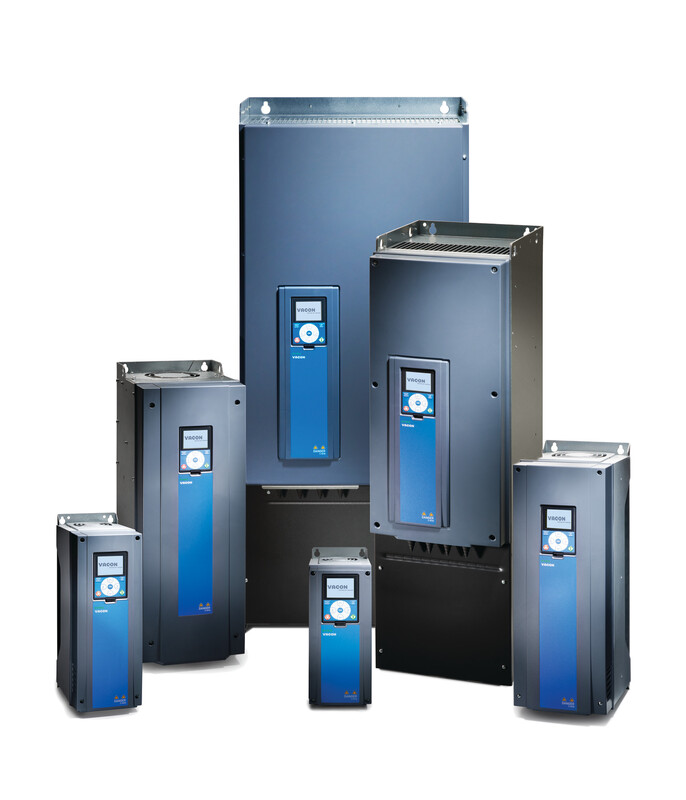

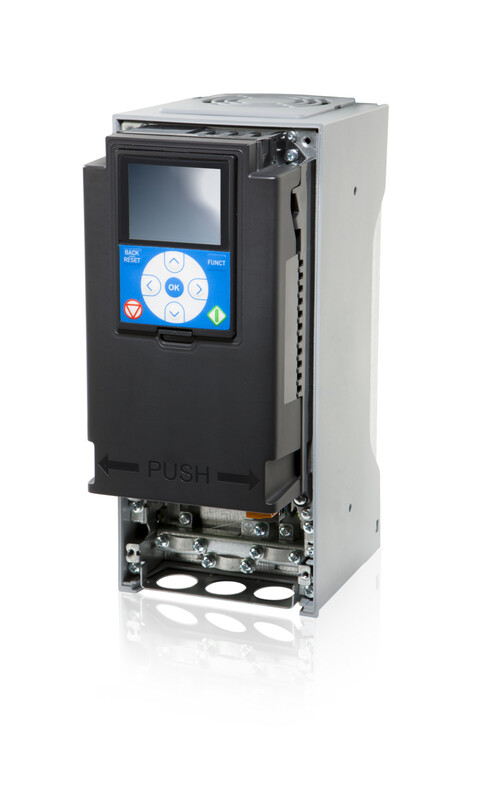

FREQUENCY CONVERTER 0100-3L-0004-5-FLOW, 1,5kW
Product code
3888639
No product description available.
Product details
Technical specifications
Mains voltage380 ... 500 V
Mains frequency50/60 Hz
Number of phases input3
Number of phases output3
Max. output frequency320 Hz
Max. output voltage500 V
Nominal output current I2N4.3 A
Max. output at quadratic load at rated output voltage1.5 kW
Number of analogue outputs1
Number of analogue inputs2
Number of digital outputs1
Number of digital inputs6
With control elementtrue
Application in industrial area permittedtrue
Application in domestic- and commercial area permittedtrue
Product codes
SAPCER768
PLC3888639
STK3888639
GTIN/EAN5710108206826
Manufacturer part number136N2940
Vendor material number136N2940
Basic information
Package measurements (L x W x H)380 x 185 x 250 mm
Package volume17.575 l
Package weight6.8 kg
Base uniteach
Package units1 / 12
Package contents–
UNSPSC39121007
BrandVACON
VendorDANFOSS OY AB
The country of origin stated by the supplierFinland
