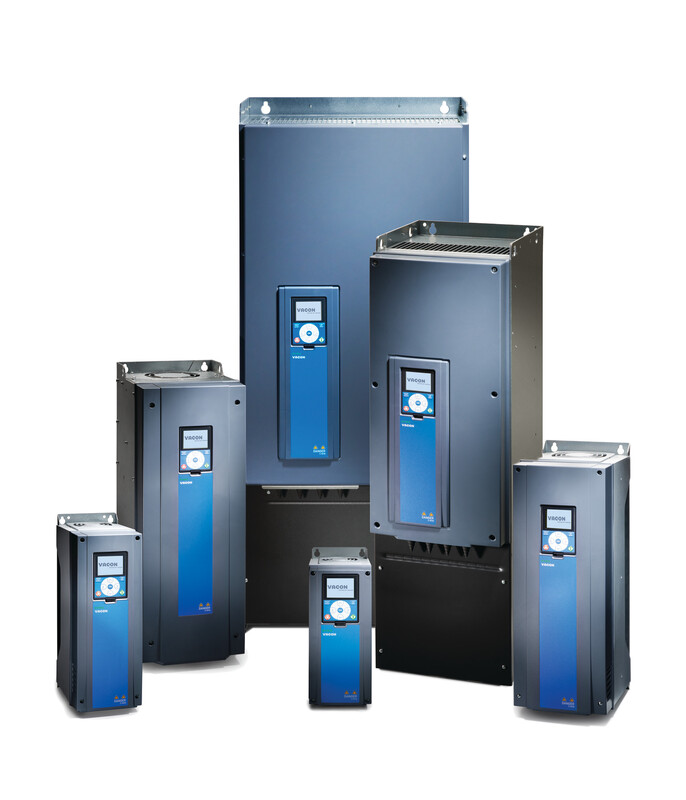

FREQUENCY CONVERTER 0100-3L-0005-5, 2,2kW
Product code
3888282
Frame MR4
Brake chopper standard on frame MR4-MR6, available as factory option for larger frames.
Options include:
OPT-BJ-V, STO/ATEX card, 3887408
OPT-EA-V, Ethernet IP, 3887409
OPT-E3-V, Profibus, screw terminal, 3888239
OPT-E5-V, Profibus, D9 connector, 3888238 This product description is an automated translation of the original Finnish description.
Brake chopper standard on frame MR4-MR6, available as factory option for larger frames.
Options include:
OPT-BJ-V, STO/ATEX card, 3887408
OPT-EA-V, Ethernet IP, 3887409
OPT-E3-V, Profibus, screw terminal, 3888239
OPT-E5-V, Profibus, D9 connector, 3888238 This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Frequency converter =< 1 kV (EC001857)
Mains voltage380-500 V
Mains frequency50/60 Hz
Number of phases input3
Number of phases output3
Max. output frequency320 Hz
Max. output voltage500 V
Nominal output current I2N5.6 A
Max. output at quadratic load at rated output voltage2.2 kW
Max. output at linear load at rated output voltage1.5 kW
Number of analogue outputs1
Number of analogue inputs2
Number of digital outputs1
Number of digital inputs6
With control elementyes
Application in industrial area permittedyes
Product codes
SAPCER740
STK3888282
PLC3888282
GTIN/EAN6410038882822
Manufacturer part number136N5354
Vendor material number136N5354
Basic information
Package measurements (L x W x H)380 x 240 x 180 mm
Package volume16.416 l
Package weight7 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121007
BrandVACON
VendorDANFOSS OY AB
The country of origin stated by the supplierFinland
