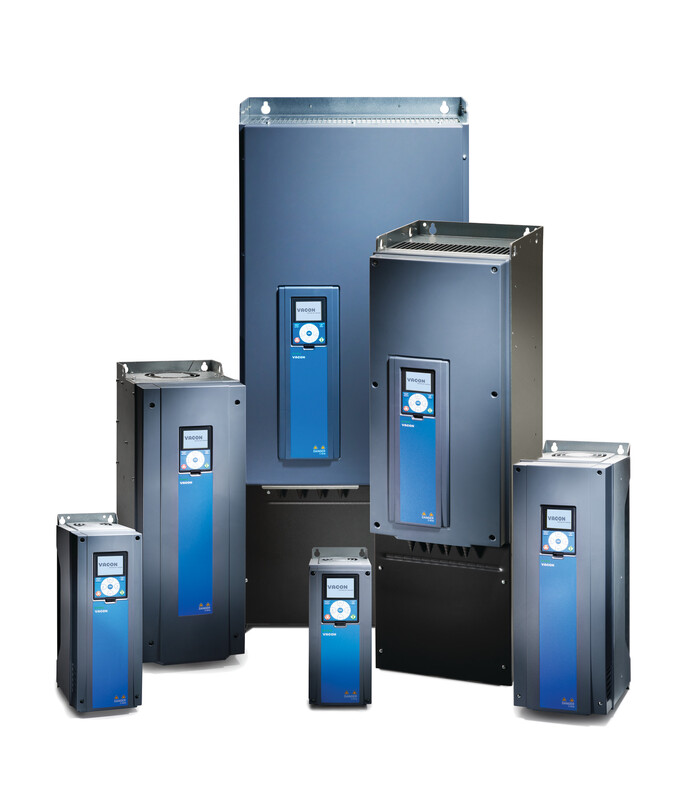

FREQUENCY CONVERTER 0100-3L-0012-5, 5,5kW
Product code
3888263
IP21 frequency converter for industrial heavy-duty constant torque applications This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Frequency converter =< 1 kV (EC001857)
Mains voltage380-500 V
Mains frequency50/60 Hz
Number of phases input3
Number of phases output3
Max. output frequency320 Hz
Max. output voltage500 V
Nominal output current I2N12 A
Max. output at quadratic load at rated output voltage5.5 kW
Max. output at linear load at rated output voltage4 kW
Number of analogue outputs1
Number of analogue inputs2
Number of digital outputs1
Number of digital inputs6
With control elementyes
Application in industrial area permittedyes
Product codes
SAPCER710
STK3888263
PLC3888263
GTIN/EAN6410038882631
Manufacturer part number136N5075
Vendor material number136N5075
Basic information
Package measurements (L x W x H)385 x 185 x 250 mm
Package volume17.806 l
Package weight7.4 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121007
BrandVACON
VendorDANFOSS OY AB
The country of origin stated by the supplierFinland
