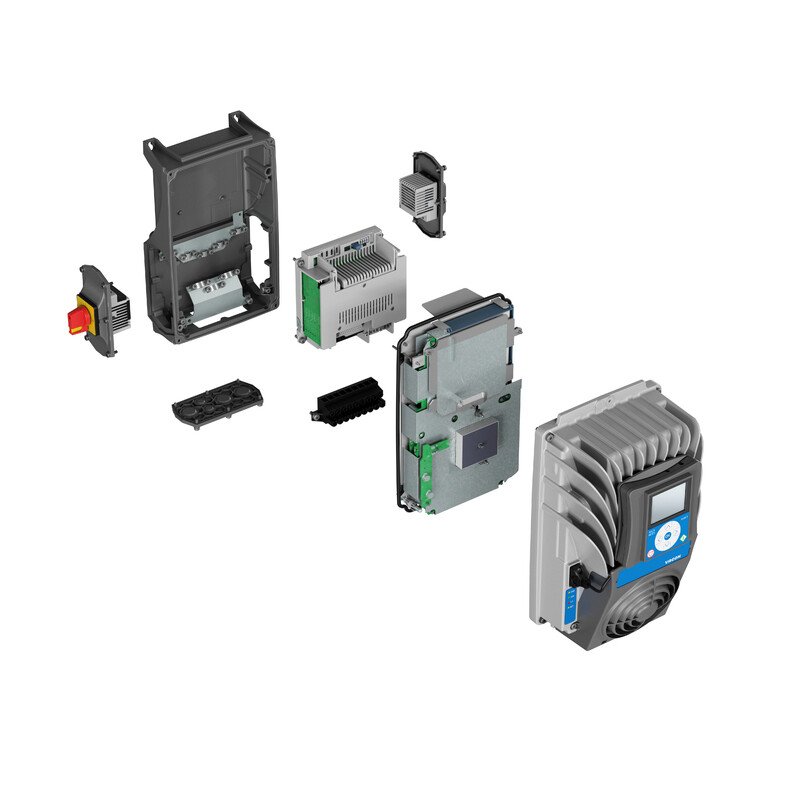

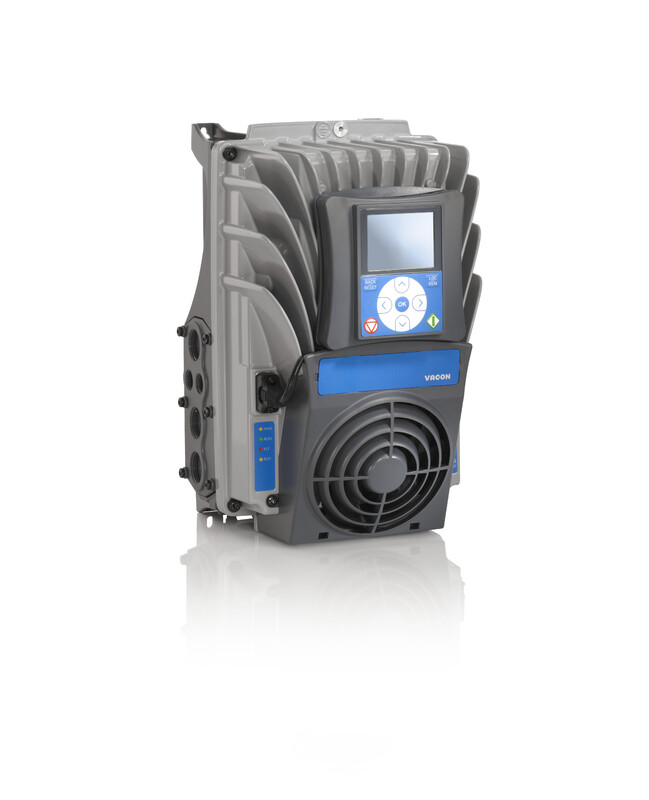

FREQUENCY CONVERTER VACON 100X 4kW/9,6A, IP66, HMGR
Product code
3888662
Frame MM4
Includes control panel
Standard: brake chopper and STO
Optional:
Heater
Main switch

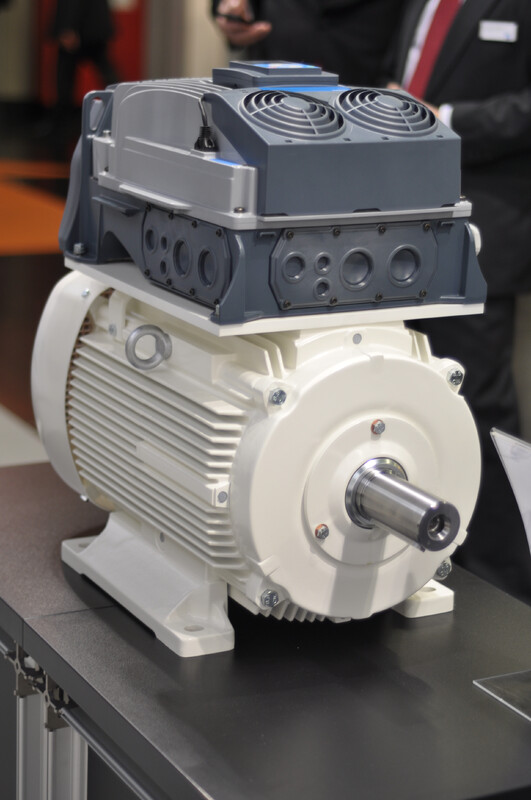

Adapter plate for direct mounting of frequency converter to motor
OPT-EA-V, Ethernet IP, 3887409
OPT-E3-V, Profibus, screw connector 3888239
OPT-E5-V, Profibus, D9 connector 3888238
This product description is an automated translation of the original Finnish description.
Includes control panel
Standard: brake chopper and STO
Optional:
Heater
Main switch
Adapter plate for direct mounting of frequency converter to motor
OPT-EA-V, Ethernet IP, 3887409
OPT-E3-V, Profibus, screw connector 3888239
OPT-E5-V, Profibus, D9 connector 3888238
This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Frequency converter =< 1 kV (EC001857)
Mains voltage380-500 V
Mains frequency50/60 Hz
Number of phases input3
Number of phases output3
Max. output frequency320 Hz
Max. output voltage500 V
Nominal output current I2N9.6 A
Max. output at linear load at rated output voltage4 kW
Number of analogue outputs1
Number of analogue inputs2
Number of digital outputs1
Number of digital inputs6
With control elementyes
Application in industrial area permittedyes
Application in domestic- and commercial area permittedyes
Product codes
SAPDAZ721
STK3888662
PLC3888662
GTIN/EAN5710108867126
Manufacturer part number136G3128
Vendor material number136G3128
Basic information
Package measurements (L x W x H)410 x 290 x 290 mm
Package volume34.481 l
Package weight9.6 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121007
BrandVACON
VendorDANFOSS OY AB
