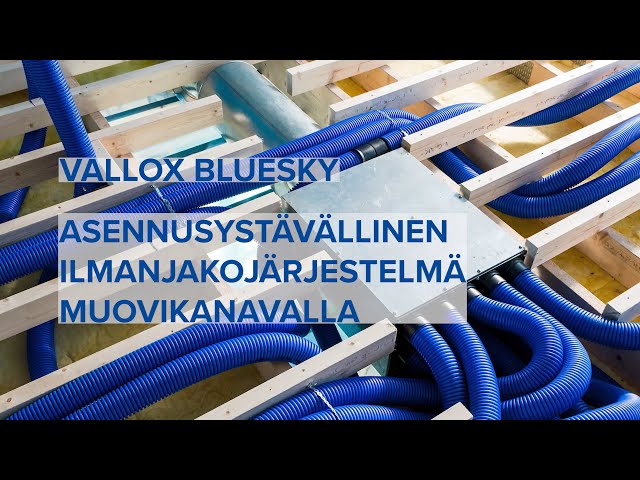

Video

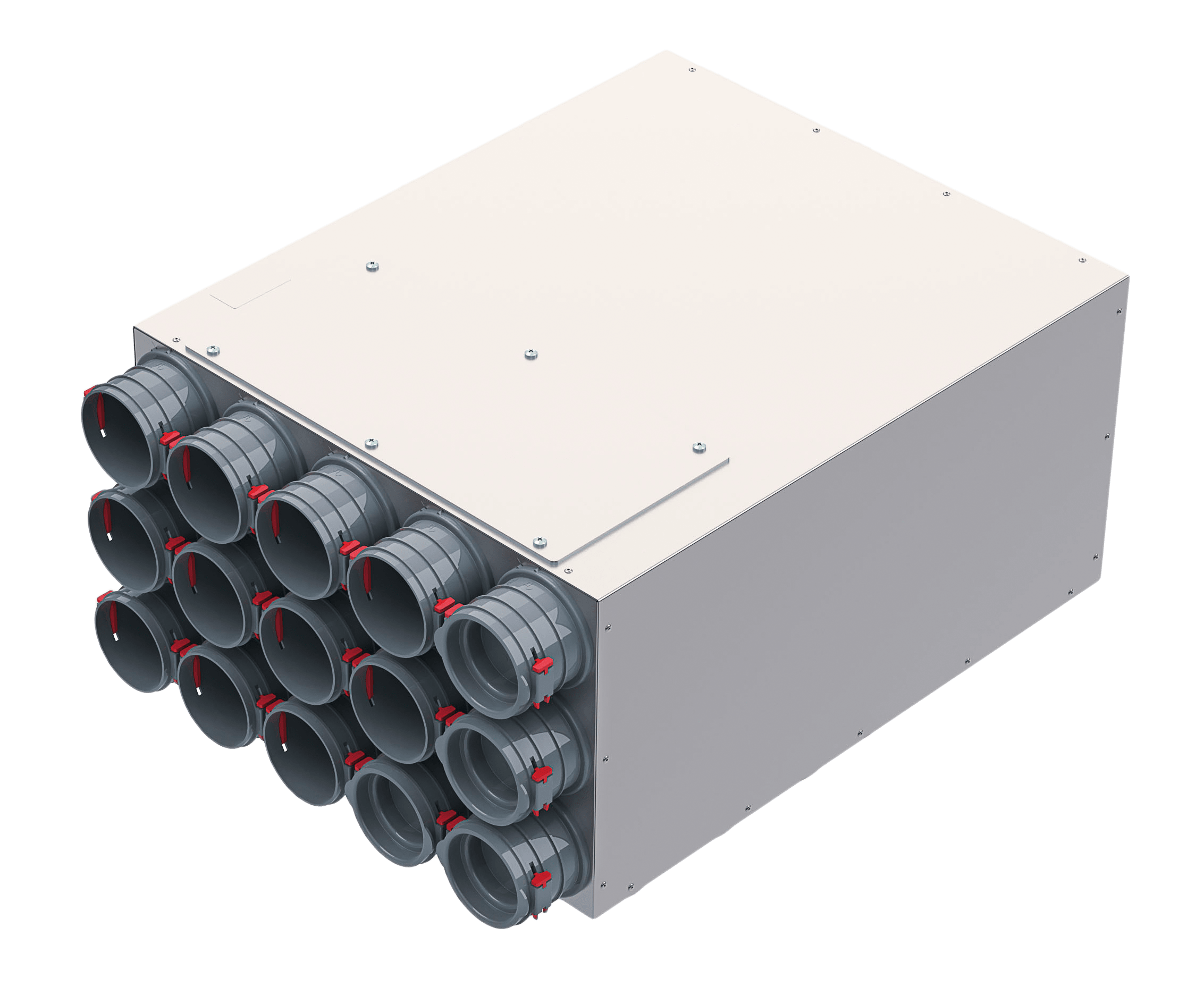

BRANCHING BOX BLUESKY 200MM / 15 OUTPUT
Product code
8275021
Vallox BlueSky air distribution boxes are manufactured from galvanized steel sheet. They feature an inspection hatch and have a sound-dampening structure. Some of the duct connections can exit from the end of the box, others from the top. The duct is attached to the outlet collar with two clamps.
Packaging includes 15 outlet collars with clamps, 15 caps, and 3 plugs with fittings.
Features
- outlets 15 x 78 mm
- duct connection 200 mm
- dimensions (L x W x H) 500 x 300 x 600 mm
Product details
Technical specifications
Product class (ETIM)Plenum for air conditioner (EC011777)
ModelStraight
Number of connections15
Diameter, connections200 mm
Duct height75 mm
Duct width75 mm
Insulatedno
Product codes
SAPANZ275
HPAC8275021
PLC8275021
GTIN/EAN6415882750211
Manufacturer part number383876
Vendor material number8275021
Basic information
Package measurements (L x W x H)650 x 500 x 320 mm
Package volume104 l
Package weight12 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC40101506
BrandVALLOX
VendorVALLOX OY
The country of origin stated by the supplierFinland
Documents (6)
Images
Brochures & documents
Links
Environment and safety
Features
Made of 100% recyclable materialsYes
Made from PVCNo
