CONTROL BOX EVO-IP HDMI OVER IP

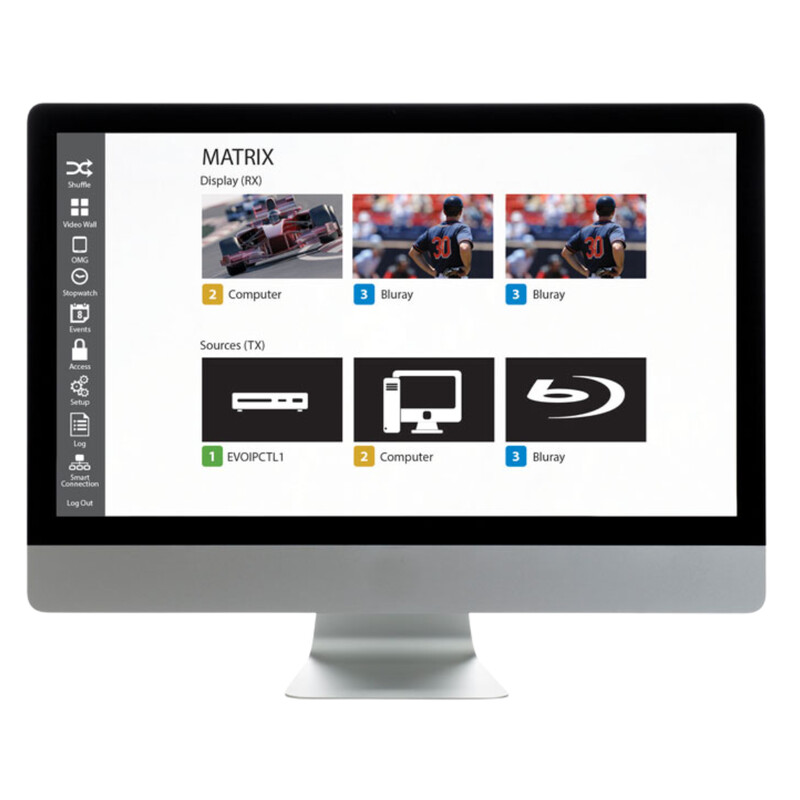

EVO-IP series devices transmit 4K video over a local network (via CAT cabling) from as many sources to as many displays as needed. What distinguishes this system from similar AV-over-IP solutions is that both receivers and transmitters can draw their required power through the switch’s PoE power supply. Additionally, the devices’ control capabilities eliminate the need for a separate video matrix, as you can route the image from any transmitter to any receiver via the Web-GUI, or even schedule it. The EVO-IP series can also create a video wall display of up to 25 screens, so even if a video wall display is part of the system, no separate processor is needed to form the video wall image. The system consists of three components: a controller (EVOIPCTL1), a transmitter (EVOIPTX1), and a receiver (EVOIPRX1). Transmitters and receivers can be added as needed. One controller can manage all transmitters and receivers in the system.

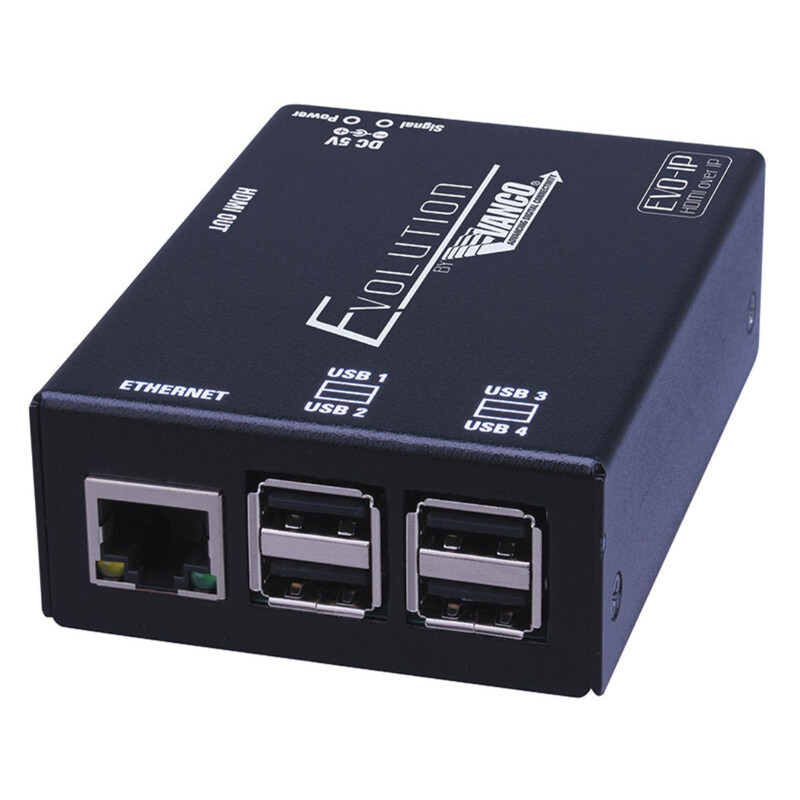

The EVOIPCTL1 is the system controller unit with the following features:

• Easy GUI automatically detects new devices in the system
• Enables naming of displays and sources
• HDMI output displays network information on screen, simplifying network connections

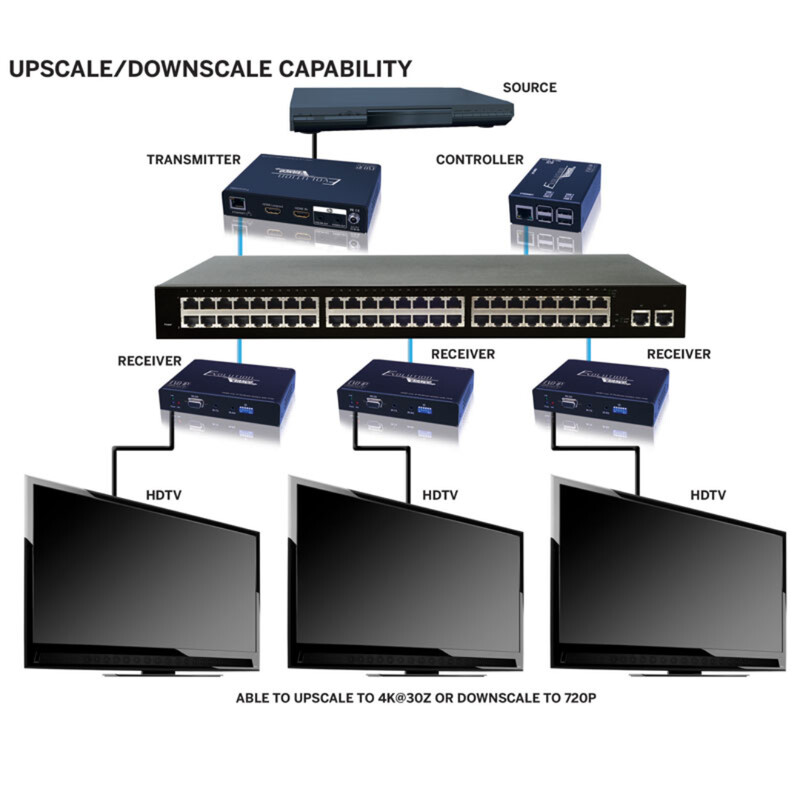

• Scales 4K@30Hz down to 720p
• EDID preset/learning

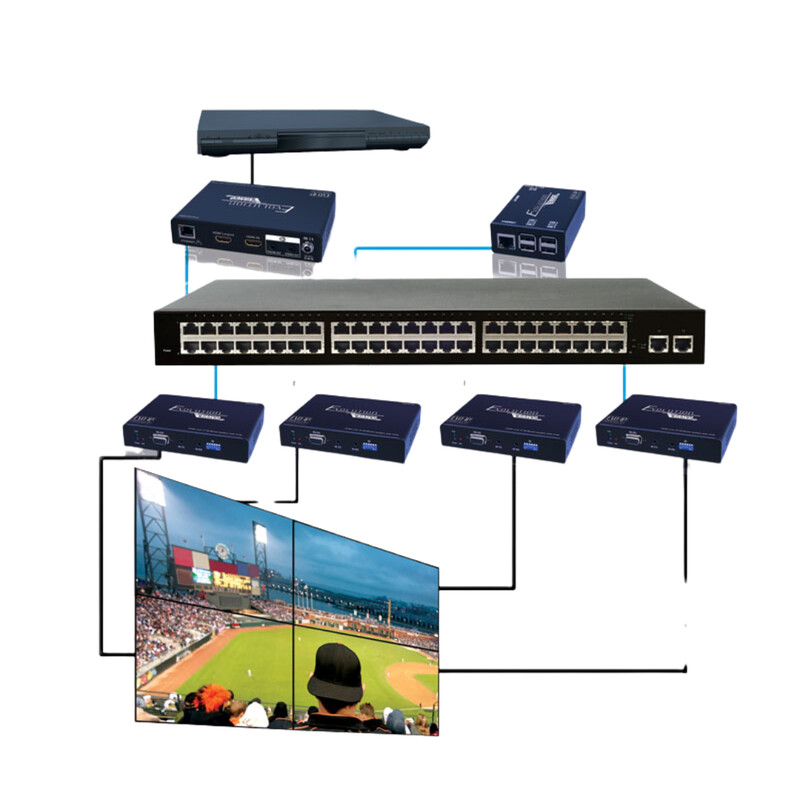

• Video Wall mode supports configurations of up to 25 displays

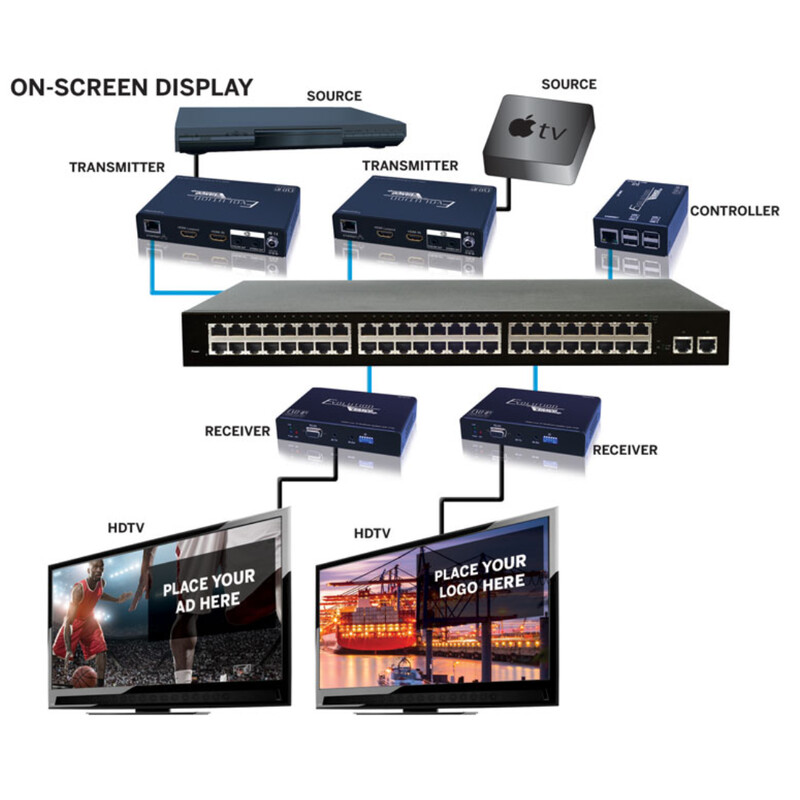

• OSD mode for displaying text, images, or logos on screen
• USB ports reserved for future use
• Connects to the cloud for scheduling events or remote troubleshooting

This product description is an automated translation of the original Finnish description.
