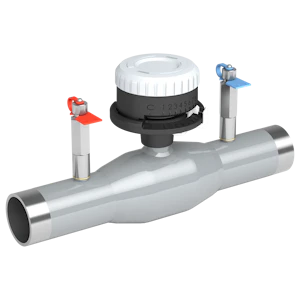

BALANCE VALVE S.STEEL W.ENDS DN50 PN16 240050X
Product code
4011647
Control and shut-off applications in heating and cooling systems. Fully welded construction, lightweight, easy to insulate, and fully sealed in both flow directions. Material certification EN10204/3.1 available upon request or with factory delivery. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Regulating valve (EC011463)
Housing materialStainless steel
Material qualityStainless steel 316 L (1.4404)
Surface protectionPrimer
Nominal diameterDN 50
Outer pipe diameter60.3 mm
Connection 1Welding connection
Connection 2Welding connection
Article compression classPN 25
Suitable for tap wateryes
Suitable for hot tap wateryes
Suitable for central heating wateryes
Preset sealable/lockableyes
Suitable for manual operationyes
Hydraulic balance controlStatic
With drain valveno
Product codes
SAPCMX608
HPAC4011647
PLC4011647
GTIN/EAN6415840116479
Manufacturer part number240050X
Vendor material number240050X
Basic information
Package measurements (L x W x H)330 x 185 x 85 mm
Package volume5.189 l
Package weight2.46 kg
Base uniteach
Package units1
Package contents–
UNSPSC40141609
BrandVEXVE
VendorVEXVE OY
The country of origin stated by the supplierFinland
