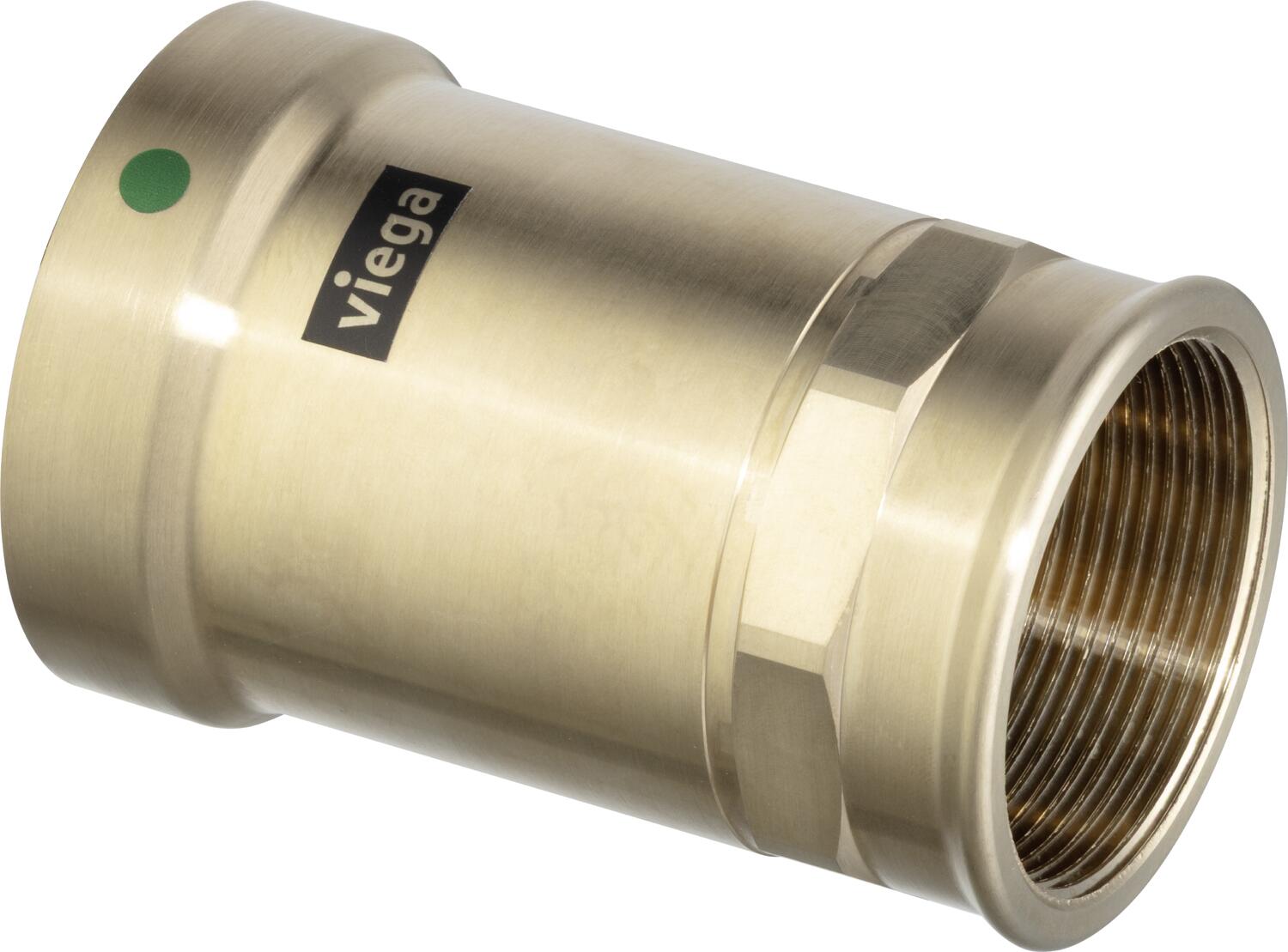

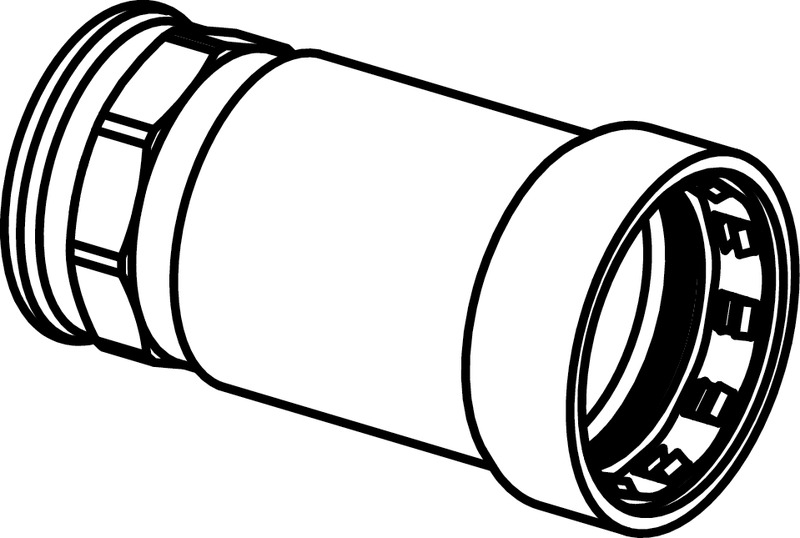

ADAPTER PIECE FEMALE BRONZE 4212.4 DN20x3/4 MEGAPRESS
Product code
0760290
Manufactured from high-quality brass pipe, ensuring safe use. Also suitable for thick-walled stainless and acid-resistant steel pipes, making it an ideal solution for industrial applications. Compatible with steel pipes according to standard EN 10220/10255, galvanized according to standard EN 10240, and thick-walled pipes made from stainless and acid-resistant steel (1.4301/1.4306/1.4307/1.4401/1.4404/1.4541/1.4550/1.4571) according to standards DIN EN 10216?5 and DIN EN 10217?7. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Brass
Material connection 2Brass
ShapeStraight
System specificyes
Nominal diameter connection 13/4 inch (20)
Connection 1Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)
Nominal diameter connection 2DN 20
Connection 2Press sleeve
Ring stiffness classOther
Product codes
SAPDMU254
HPAC0760290
PLC0760290
GTIN/EAN4015211837495
Manufacturer part number837495
Vendor material number837495
Basic information
Package measurements (L x W x H)38 x 38 x 70 mm
Package volume0.101 l
Package weight0.14 kg
Base uniteach
Package units1 / 5
Package contents–
UNSPSC40172601
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
