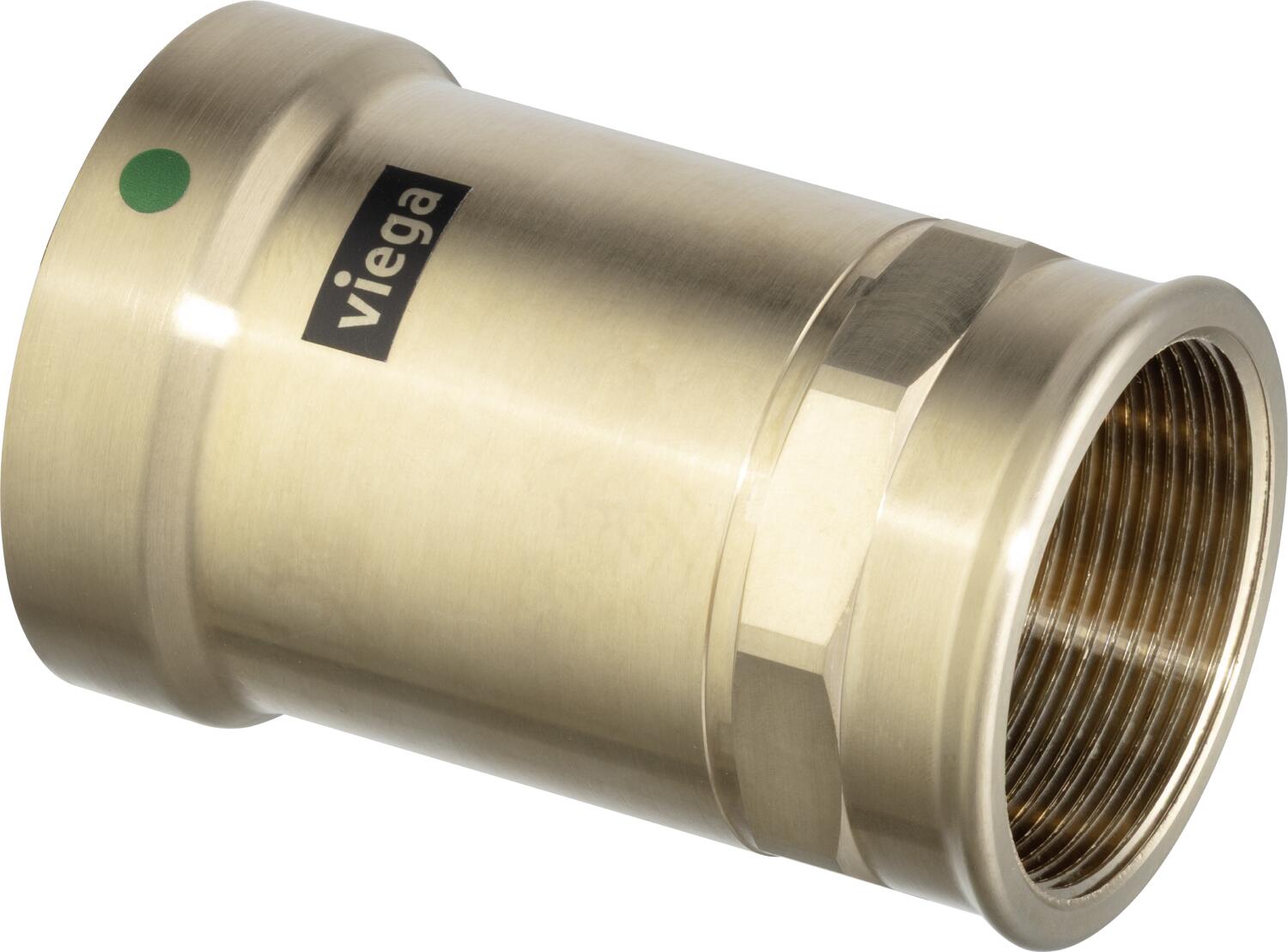

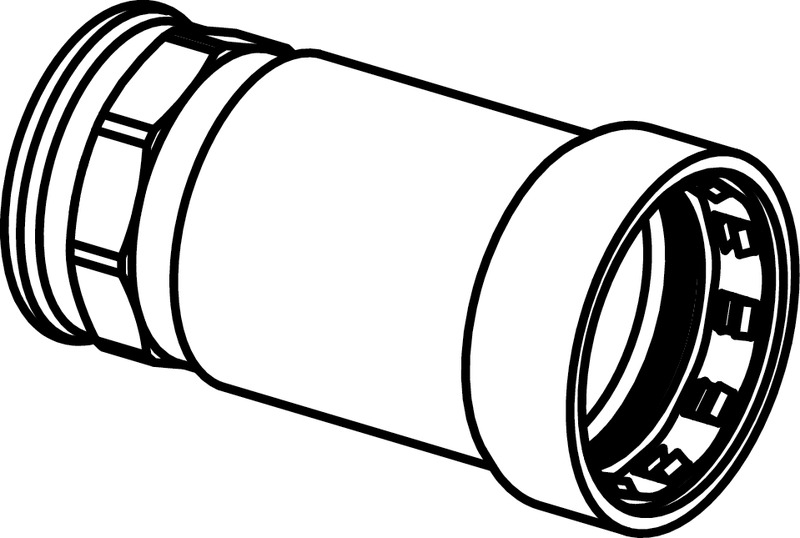

ADAPTER PIECE FEMALE BRONZE 4212.4 DN50x2 MEGAPRESS

Product code
0760298
Manufactured from high-quality brass pipe, ensuring safe use. Also suitable for thick-walled stainless and acid-resistant steel pipes, making it an ideal solution for industrial applications. Compatible with steel pipes according to standard EN 10220/10255, galvanized according to standard EN 10240, and thick-walled pipes made from stainless and acid-resistant steel (1.4301/1.4306/1.4307/1.4401/1.4404/1.4541/1.4550/1.4571) according to standards DIN EN 10216?5 and DIN EN 10217?7. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Brass
Material connection 2Brass
ShapeStraight
System specificyes
Nominal diameter connection 12 inch (50)
Connection 1Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)
Nominal diameter connection 2DN 50
Connection 2Press sleeve
Ring stiffness classOther

Product codes

SAPDMU246
HPAC0760298
PLC0760298
GTIN/EAN4015211837570
Manufacturer part number837570
Vendor material number837570

Basic information

Package measurements (L x W x H)75 x 110 x 75 mm
Package volume0.619 l
Package weight0.64 kg
Base uniteach
Package units1
Package contents
UNSPSC40172601
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG

Documents (2)

Environment and safety

Manufacturer

NameViega GmbH & Co. KG
Postal addressViega Platz 1, 57439 Attendorn Germany
