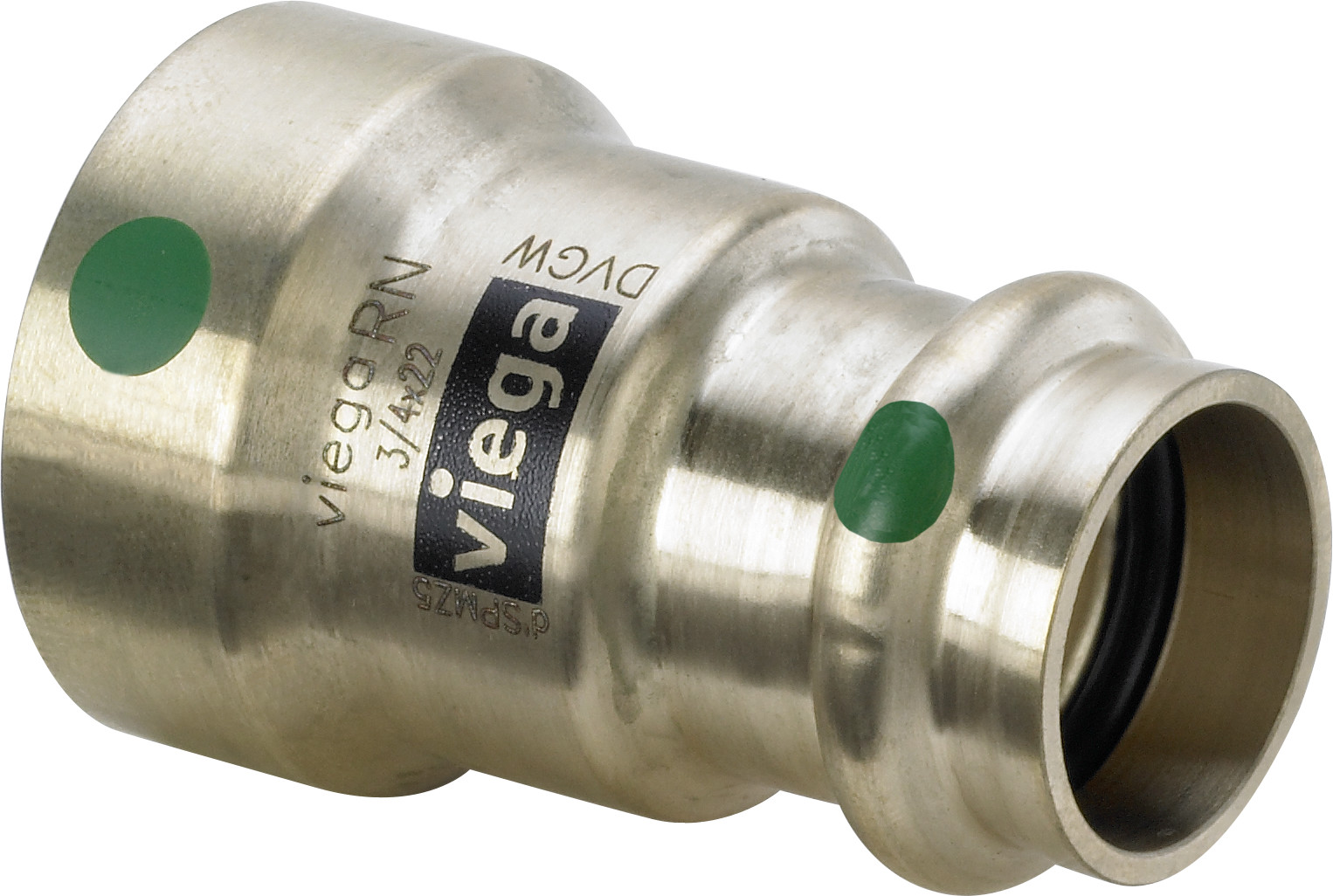

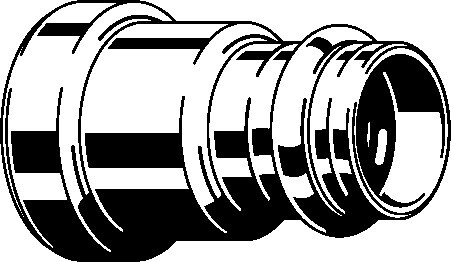

PRESS ADAPTER PIECE BRONZE 4213.2 DN15x18 MEGAPRESS/Cu
Product code
0483901
The Megapress system is suitable for installation in heating, cooling, and industrial systems together with steel pipes in accordance with DIN EN 10225 and DIN EN 10220.
Features- Made of brass.
- Also suitable for old domestic water systems that have used galvanized pipe.
- Not suitable for combustible gases according to DVGW G260.
- Megapress fittings may only be used together with components belonging to the system.
- Compression fittings have a leak indicator, causing clearly visible leaks in uncrimped connections.
- Maximum operating temperature and pressure class in water circuits is 110 °C at 16 bar.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Steel
Material quality connection 1Silicon bronze
Surface protection connection 1Untreated
Surface treatment connection 1Other
Material connection 2Bronze
Material quality connection 2Silicon bronze
Surface protection connection 2Untreated
Surface treatment connection 2Other
ShapeStraight
Model1-part
Eccentricno
System specificyes
Nominal diameter connection 11/2 inch (15)
Outer pipe diameter connection 121.3 mm
Connection 1Press sleeve
Product codes
SAPCDU536
HPAC0483901
PLC0483901
GTIN/EAN4015211754679
Manufacturer part number754679
Vendor material number754679
Basic information
Package measurements (L x W x H)73 x 45 x 45 mm
Package volume0.148 l
Package weight0.685 kg
Base uniteach
Package units1 / 5
Package contents–
UNSPSC40172602
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (9)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)6.6308
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
