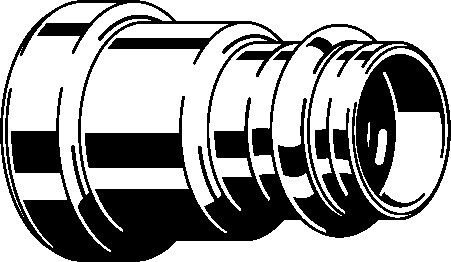

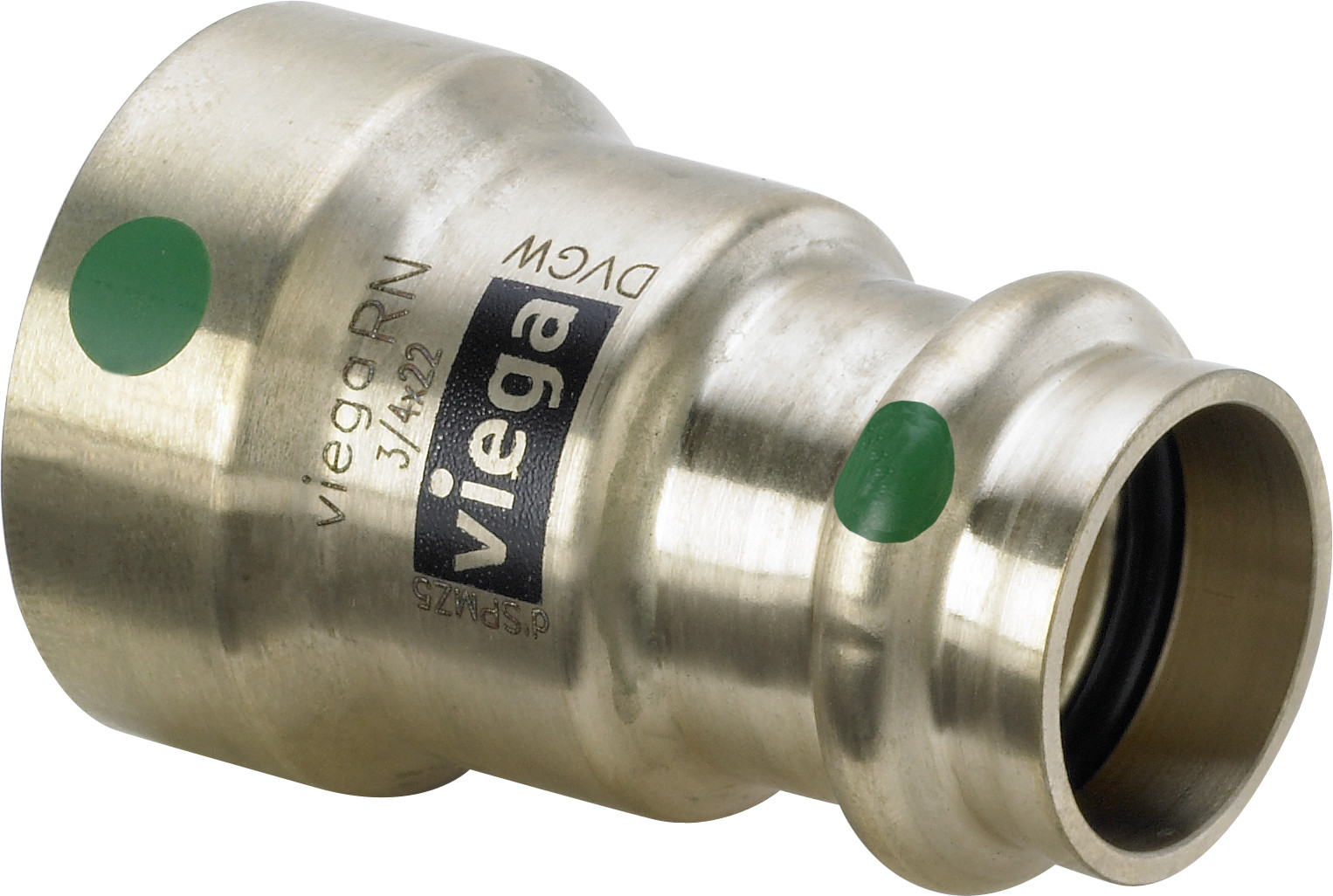

PRESS ADAPTER PIECE BRONZE 4213.2 DN40x42 MEGAPRESS/Cu
Product code
0483905
The Megapress system is suitable for installation in heating, cooling, and industrial systems together with steel pipes in accordance with DIN EN 10225 and DIN EN 10220.
Features- Made of brass.
- Also suitable for old domestic water systems that have used galvanized pipe.
- Not suitable for combustible gases according to DVGW G260.
- Megapress fittings may only be used together with components belonging to the system.
- Compression fittings have a leak indicator, causing clearly visible leaks in uncrimped connections.
- Maximum operating temperature and pressure class in water circuits is 110 °C at 16 bar.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Steel
Material quality connection 1Silicon bronze
Surface protection connection 1Untreated
Surface treatment connection 1Other
Material connection 2Bronze
Material quality connection 2Silicon bronze
Surface protection connection 2Untreated
Surface treatment connection 2Other
ShapeStraight
Model1-part
Eccentricno
System specificyes
Nominal diameter connection 11 1/2 inch (40)
Outer pipe diameter connection 148.3 mm
Connection 1Press sleeve
Product codes
SAPCDU541
HPAC0483905
PLC0483905
GTIN/EAN4015211736316
Manufacturer part number736316
Vendor material number736316
Basic information
Package measurements (L x W x H)102 x 75 x 75 mm
Package volume0.574 l
Package weight0.385 kg
Base uniteach
Package units1
Package contents–
UNSPSC40172602
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (9)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)3.7268
GWP, uniteach
Source for GWP dataEPD
