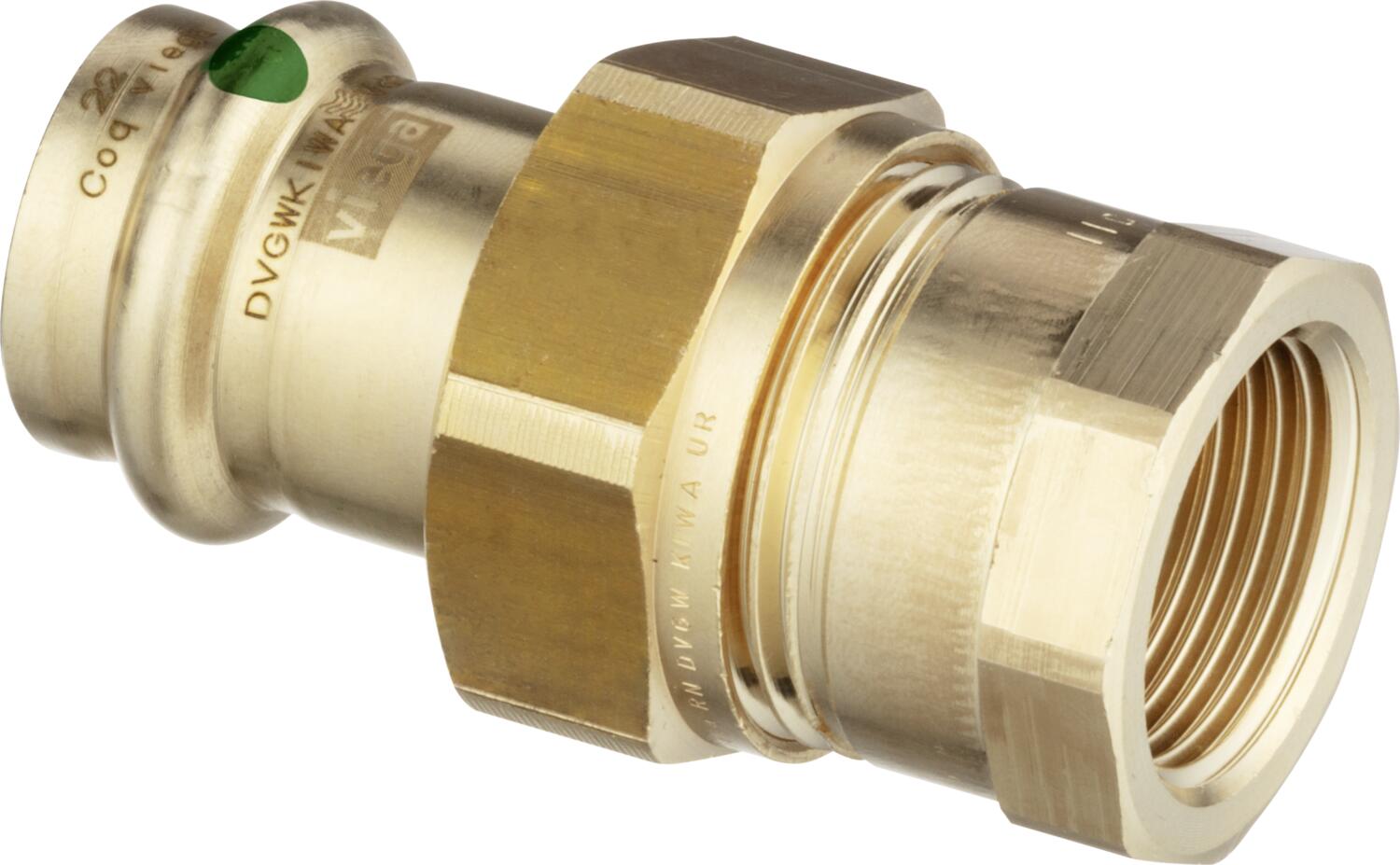

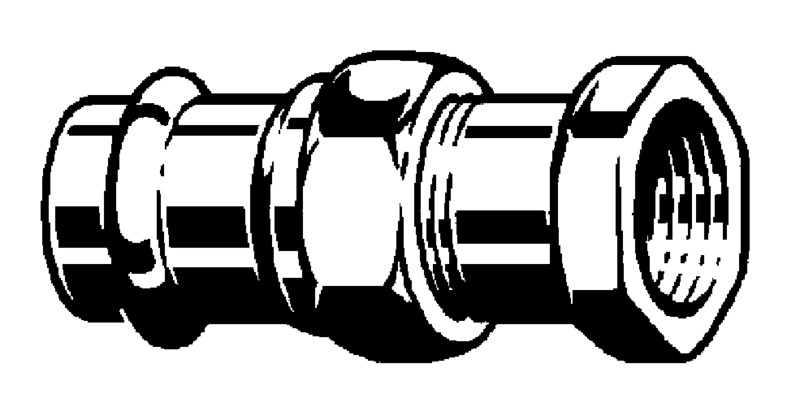

PRESS ADAPTER UNION FT CU 15x3/4 VIEGA
Product code
1547406
V-profile system for domestic water, heating, and cooling systems; compatibility with other systems' O-rings must be verified. Suitable for EN1057 copper pipes.
Fittings feature the SC-Contur property, which enables detection of leaks in non-pressurized connections during pressure testing. O-ring made of EPDM, maximum temperature +110 °C, pressure class PN16.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Other
Material quality connection 1Other
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Bronze
Material quality connection 2Other
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeStraight
Model1-part
Bend angle0 °
Eccentricno
System specificyes
Nominal diameter connection 1Other
Outer pipe diameter connection 115 mm
Product codes
SAPHCF971
HPAC1547406
PLC1547406
GTIN/EAN4015211133160
Manufacturer part number133160
Vendor material number133160
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.001 l
Package weight0.147 kg
Base uniteach
Package units1
Package contents–
UNSPSC40172612
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (6)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.4685
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
