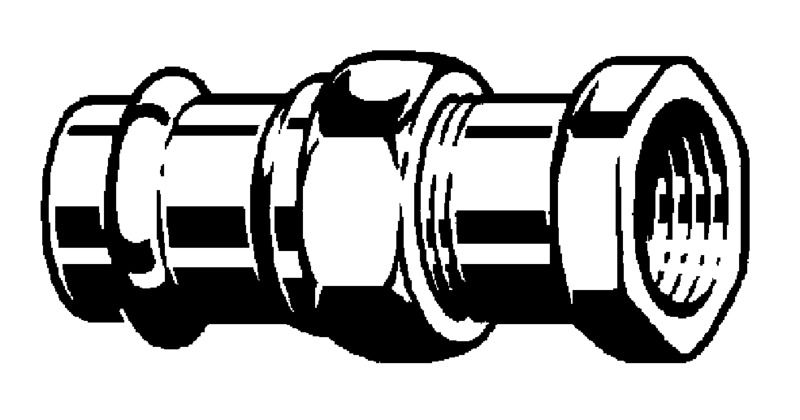

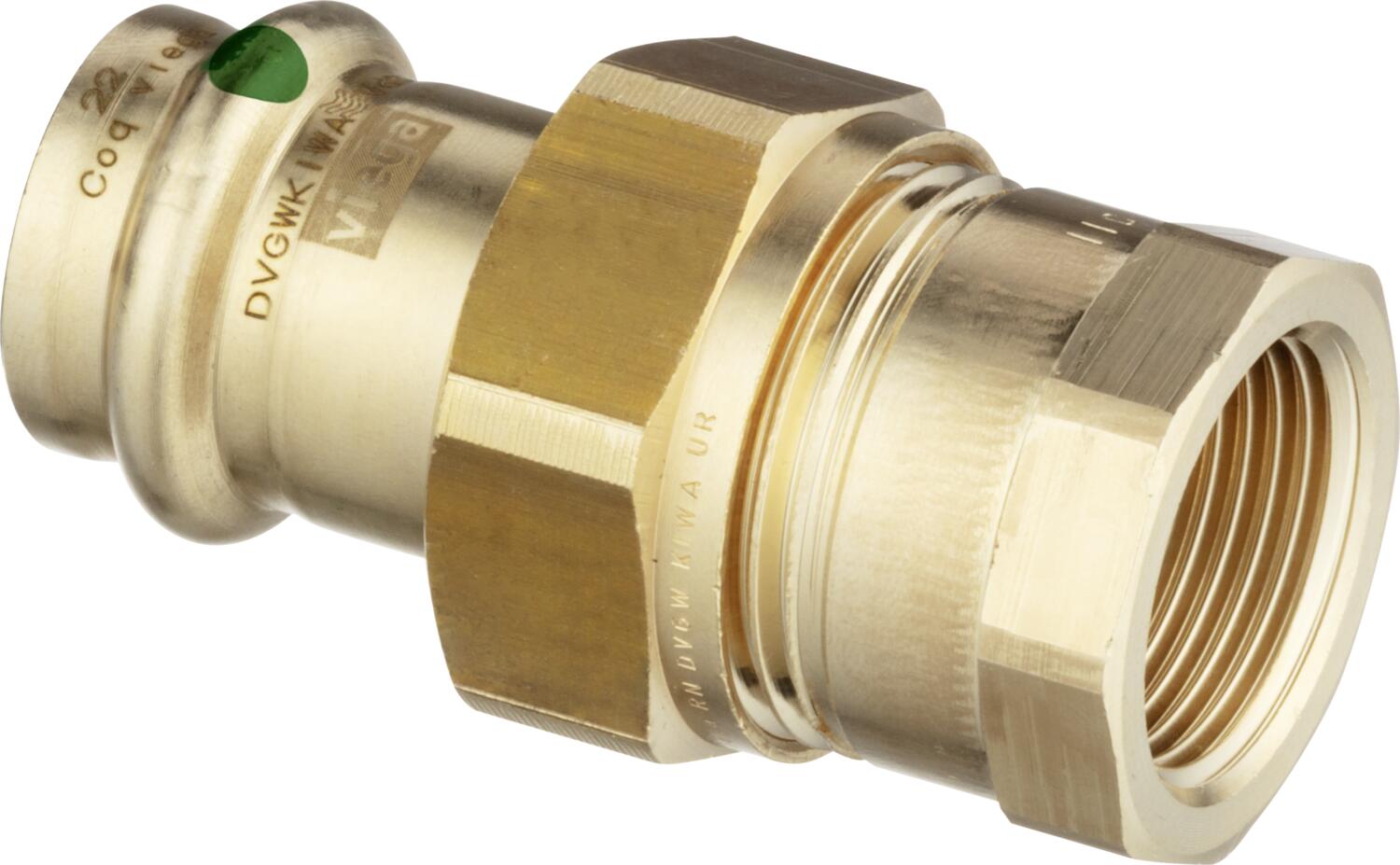

PRESS ADAPTER UNION FT CU 54x2 VIEGA
Product code
1547435
V-profile system for domestic water, heating, and cooling systems; compatibility with other systems' O-rings must be verified. Suitable for EN1057 copper pipes.
Fittings feature the SC-Contur property, which enables detection of leaks in non-pressurized connections during pressure testing. O-ring made of EPDM, maximum temperature +110 °C, pressure class PN16.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Other
Material quality connection 1Other
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Bronze
Material quality connection 2Other
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeStraight
Model1-part
Bend angle0 °
Eccentricno
System specificyes
Nominal diameter connection 1Other
Outer pipe diameter connection 154 mm
Product codes
SAPHCG007
HPAC1547435
PLC1547435
GTIN/EAN4015211222017
Manufacturer part number222017
Vendor material number222017
Basic information
Package measurements (L x W x H)140 x 180 x 80 mm
Package volume2.016 l
Package weight0.78 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC40172612
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (7)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)7.7922
GWP, uniteach
Source for GWP dataEPD
