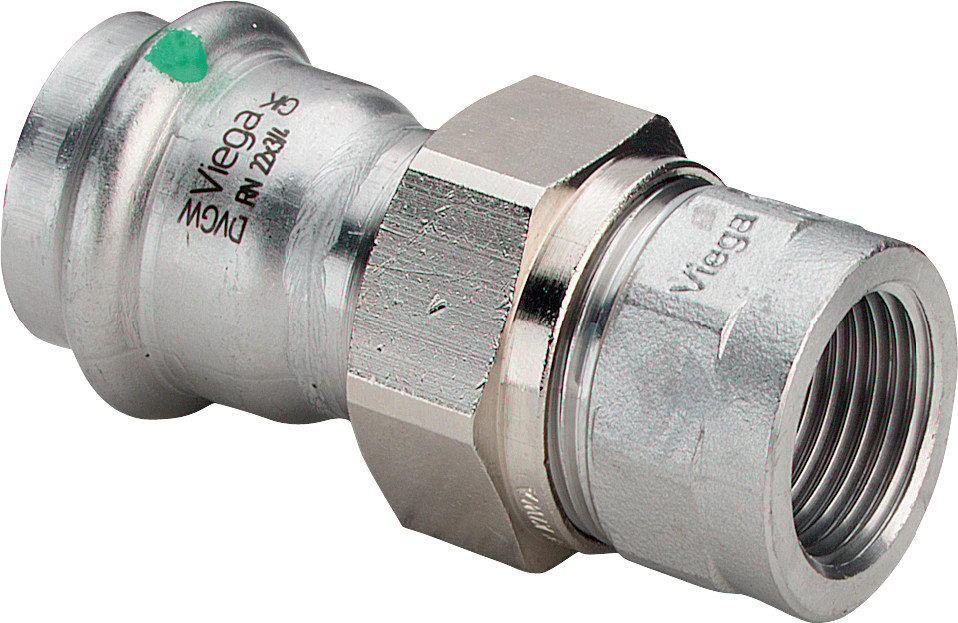

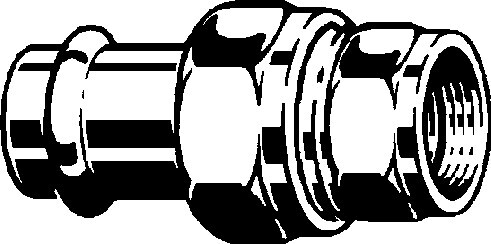

PRESS ADAPTER UNION FT SS 28x3/4 VIEGA
Product code
1282418
V-profile system for domestic and industrial water systems, featuring SC-Contur property that enables detection of leaks in non-pressurized connections during pressure testing. EPDM O-ring, max. +110°C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Stainless steel
Material quality connection 1Stainless steel 316 (1.4401)
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Stainless steel
Material quality connection 2Stainless steel 316 (1.4401)
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeStraight
Model2-part
Eccentricno
System specificyes
Nominal diameter connection 1Other
Outer pipe diameter connection 128 mm
Connection 1Press sleeve
Product codes
SAPCBI365
HPAC1282418
PLC1282418
GTIN/EAN4015211437527
Manufacturer part number437527
Vendor material number437527
Basic information
Package measurements (L x W x H)79 x 43 x 43 mm
Package volume0.146 l
Package weight0.279 kg
Base uniteach
Package units1 / 5 / 50
Package contents–
UNSPSC40172607
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (7)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)4.3245
GWP, uniteach
Source for GWP dataEPD
