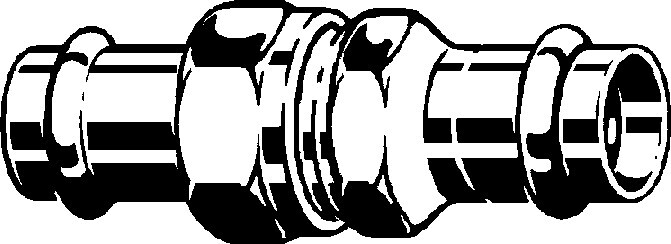

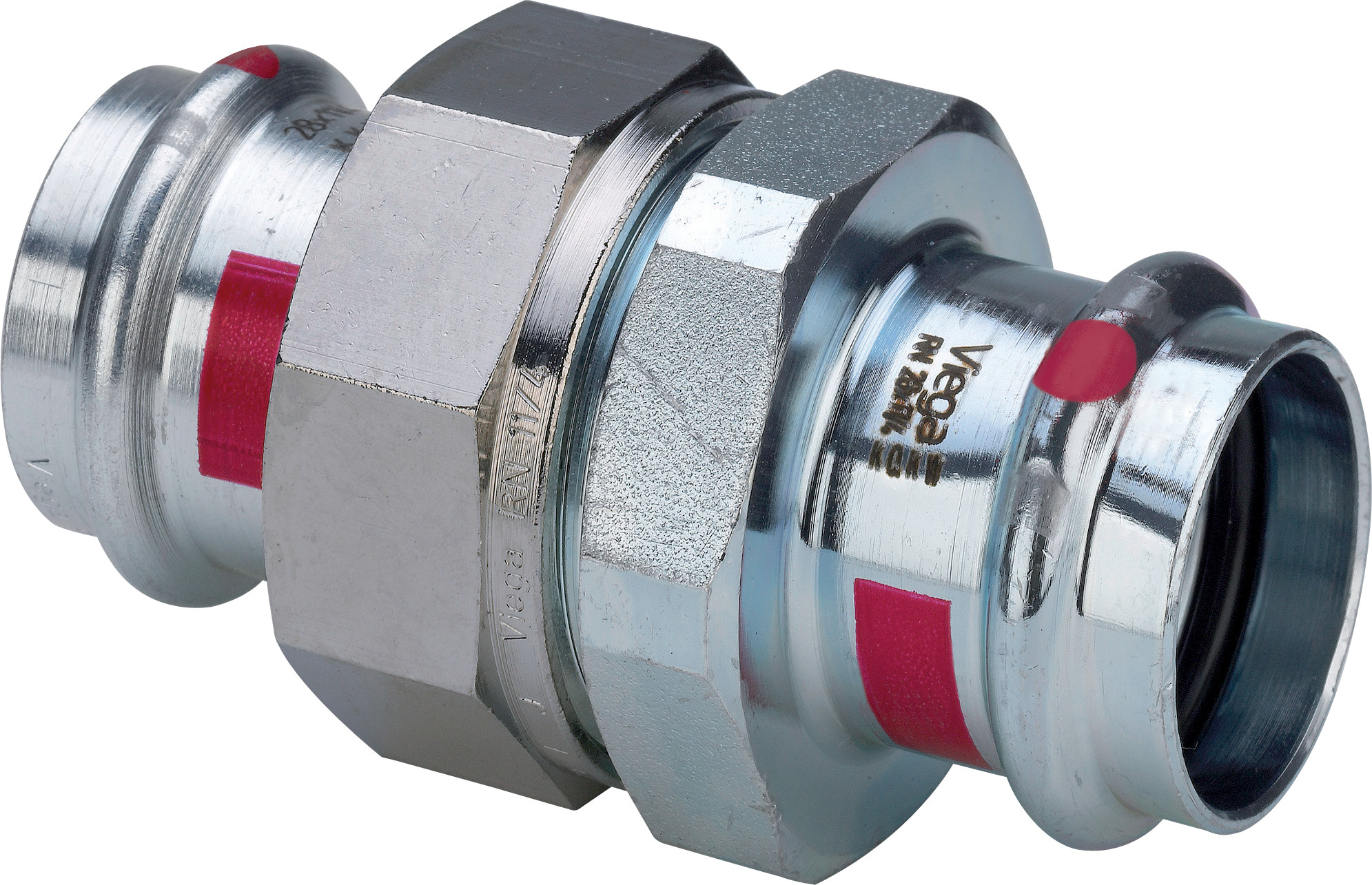

PRESS ADAPTER UNION FT ZN 12 VIEGA
Product code
0483680
V-profile system for industrial and heating equipment use "not suitable for drinking water systems". Fittings feature the SC-Contur property which enables detection of leaks in non-pressurized connections during pressure testing. EPDM O-ring, max. +110°C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Zinc
Material quality connection 1St 34.2 (1.0034)
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Zinc
Material quality connection 2St 34.2 (1.0034)
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeStraight
Model2-part
Eccentricno
System specificyes
Nominal diameter connection 1Other
Outer pipe diameter connection 112 mm
Connection 1Press sleeve
Product codes
SAPANB108
HPAC0483680
PLC0483680
GTIN/EAN4015211642358
Manufacturer part number642358
Vendor material number642358
Basic information
Package measurements (L x W x H)34 x 49 x 50 mm
Package volume0.088 l
Package weight0.088 kg
Base uniteach
Package units5 / 150
Package contents–
UNSPSC40172613
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
