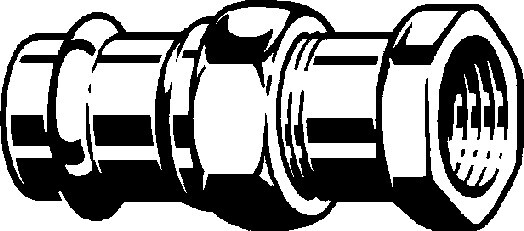

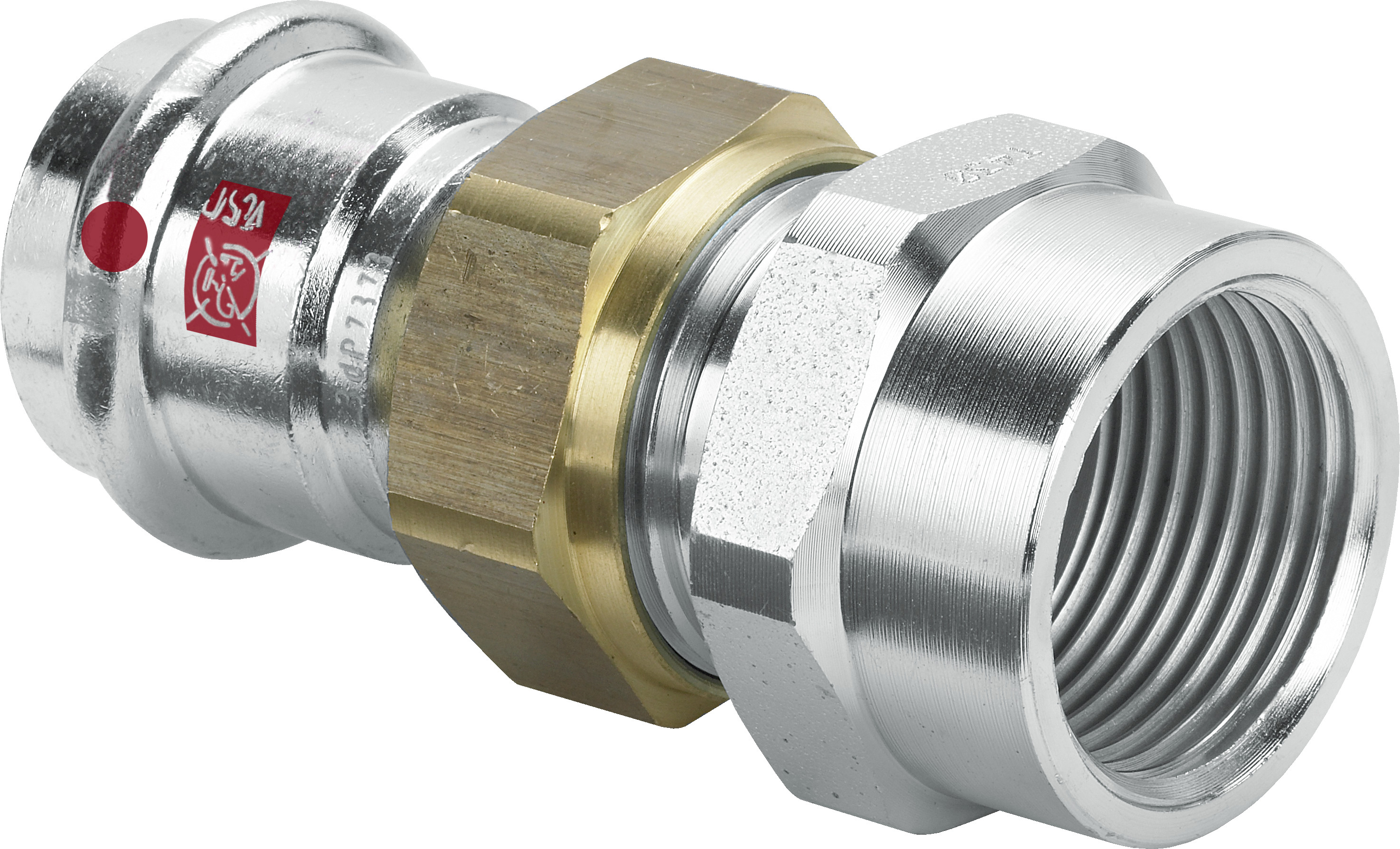

PRESS ADAPTER UNION FT ZN 22x1 VIEGA
Product code
0483254
V-profile system for industrial and heating equipment use "not suitable for drinking water systems". Fittings feature the SC-Contur property which enables detection of leaks in non-pressurized connections during pressure testing. EPDM O-ring, max. +110°C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Zinc
Material quality connection 1St 34.2 (1.0034)
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Zinc
Material quality connection 2St 34.2 (1.0034)
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeStraight
Model2-part
Eccentricno
System specificyes
Nominal diameter connection 1Other
Outer pipe diameter connection 122 mm
Connection 1Press sleeve
Product codes
SAPANB103
HPAC0483254
PLC0483254
GTIN/EAN4015211643478
Manufacturer part number643478
Vendor material number643478
Basic information
Package measurements (L x W x H)85 x 43 x 68 mm
Package volume0.253 l
Package weight0.253 kg
Base uniteach
Package units5 / 50
Package contents–
UNSPSC40172613
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (8)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.6319
GWP, uniteach
Source for GWP dataEPD
