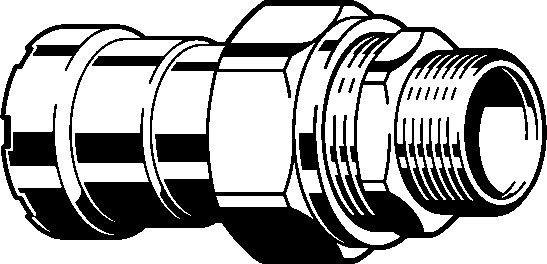

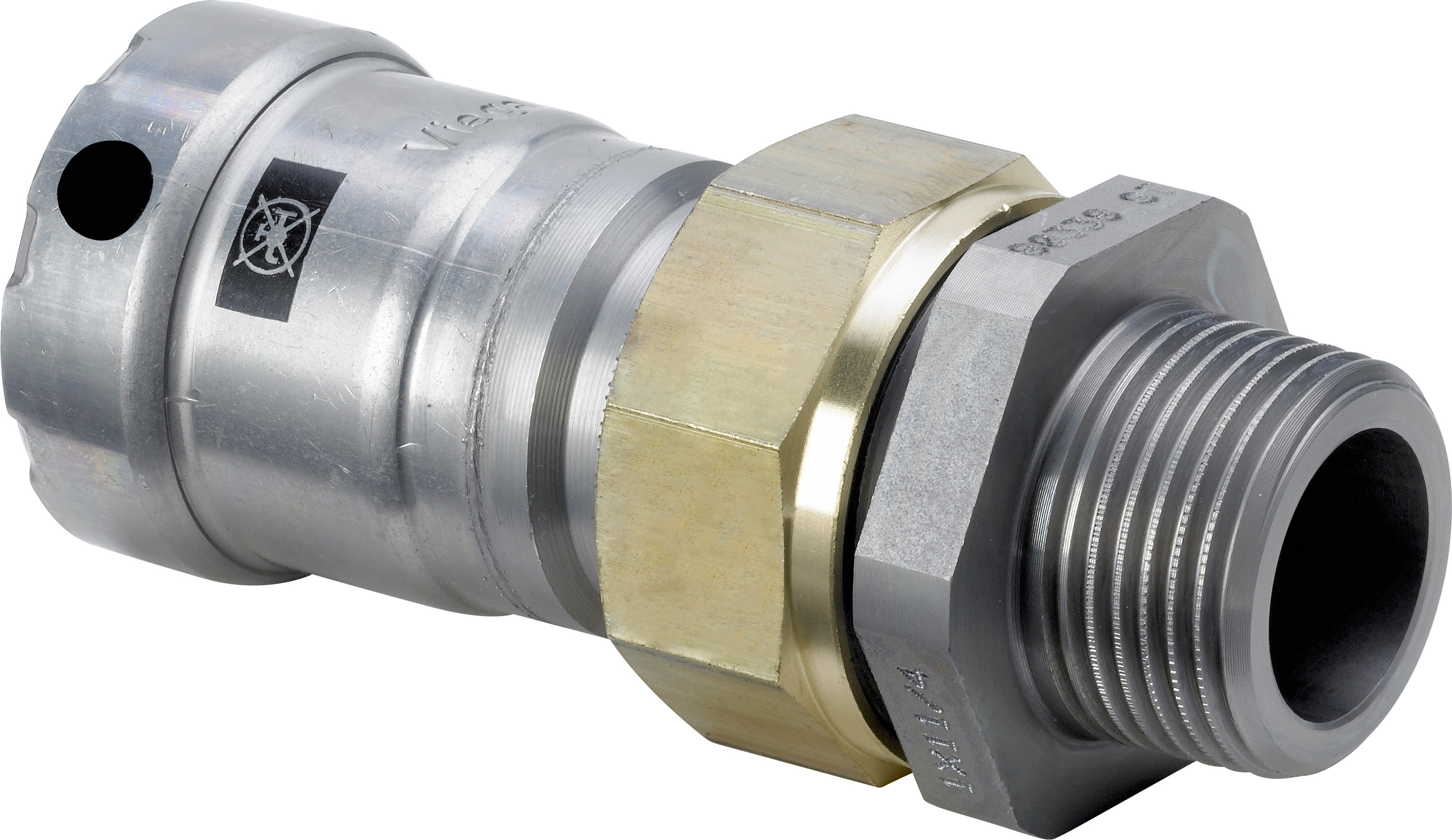

PRESS ADAPTER UNION MT 4265 DN25x1 MEGAPRESS
Product code
0760106
The Megapress system is suitable for installation in heating, cooling, and industrial systems together with steel pipes in accordance with DIN EN 10225 and DIN EN 10220.
Features- Not suitable for use in potable water systems or for flammable gases according to DVGW G260.
- Megapress fittings may only be used together with components belonging to the system.
- Compression fittings have a leak indicator, causing clearly visible leaks if the connection is not compressed.
- Maximum operating temperature and pressure class in water circuits is 110 °C at 16 bar.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Steel
Material quality connection 1St 34.2 (1.0034)
Surface protection connection 1Zinc/nickel
Surface treatment connection 1Other
Material connection 2Steel
Material quality connection 2St 34.2 (1.0034)
Surface protection connection 2Zinc/nickel
Surface treatment connection 2Other
ShapeStraight
Model2-part
Reducingyes
Eccentricno
System specificyes
Nominal diameter connection 11 inch (25)
Outer pipe diameter connection 133.7 mm
Product codes
SAPATD120
HPAC0760106
PLC0760106
GTIN/EAN4015211718893
Manufacturer part number718893
Vendor material number718893
Basic information
Package measurements (L x W x H)111 x 45 x 45 mm
Package volume0.225 l
Package weight0.49 kg
Base uniteach
Package units1 / 5 / 20
Package contents–
UNSPSC40172503
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (10)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)4.7432
GWP, uniteach
Source for GWP dataEPD
