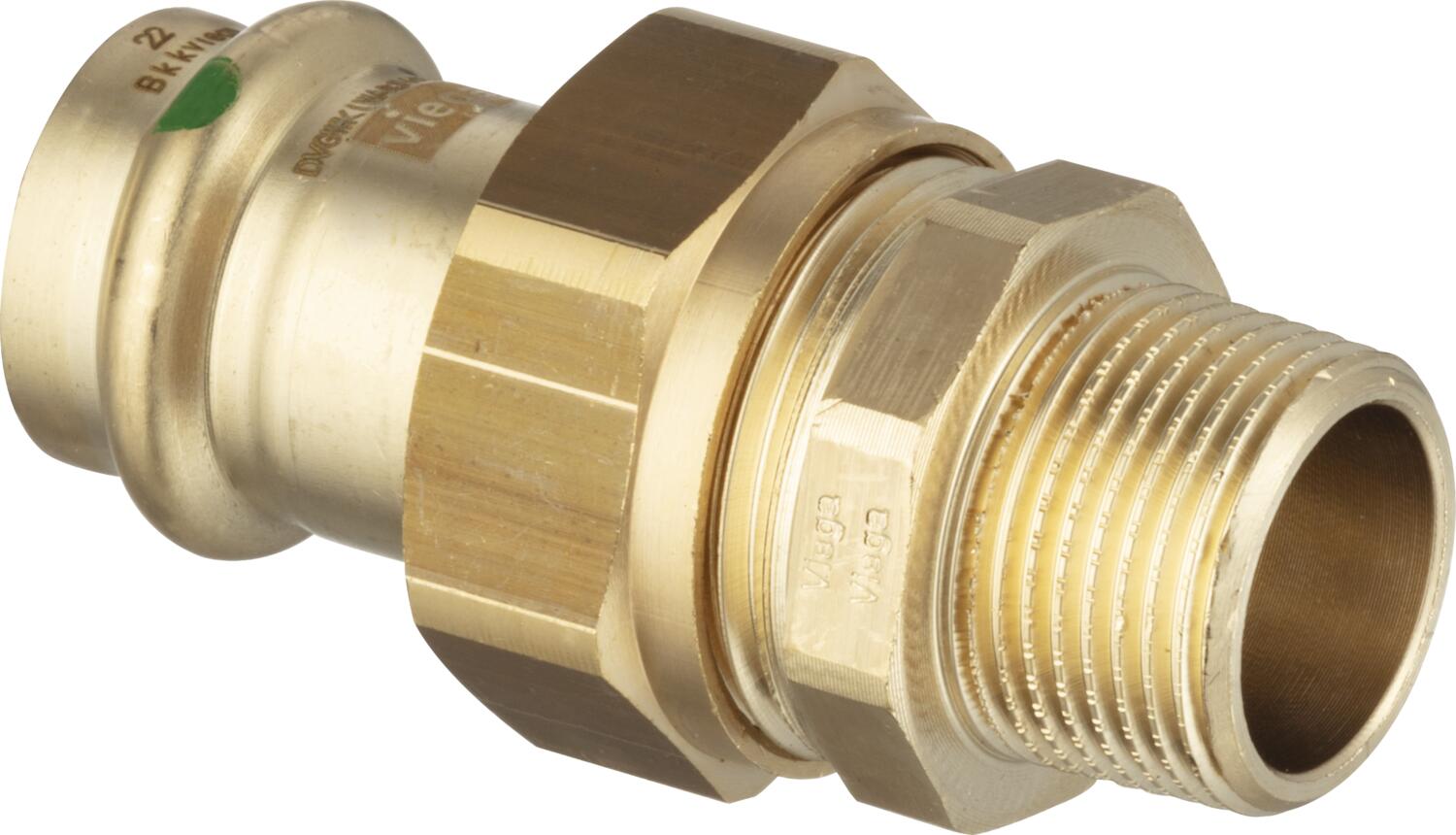

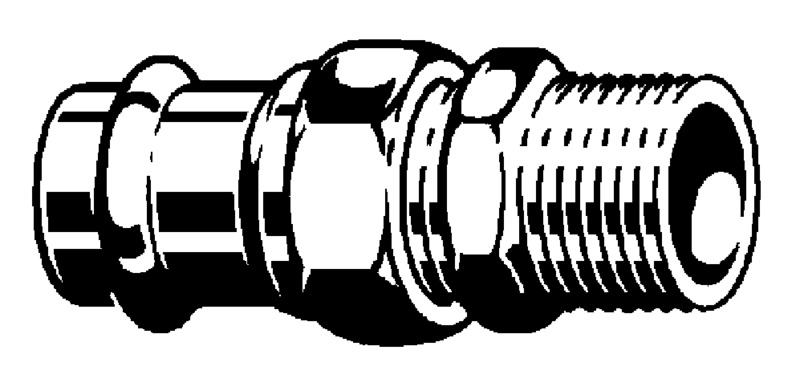

PRESS ADAPTER UNION MT Cu 12x1/2 VIEGA
Product code
1547452
V-profile system for domestic water, heating, and cooling applications; compatibility with other systems' O-rings must be verified. Suitable for EN1057 copper pipes. Fittings feature the SC-Contur property, which enables detection of leaks in non-compressed connections during pressure testing. O-ring made of EPDM, maximum temperature +110°C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Bronze
Material quality connection 1Other
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Bronze
Material quality connection 2Other
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeStraight
Model1-part
Bend angle0 °
Eccentricno
System specificyes
Nominal diameter connection 1Other
Outer pipe diameter connection 112 mm
Product codes
SAPABS178
HPAC1547452
PLC1547452
GTIN/EAN4015211291389
Manufacturer part number291389
Vendor material number291389
Basic information
Package measurements (L x W x H)60 x 30 x 30 mm
Package volume0.054 l
Package weight0.121 kg
Base uniteach
Package units5 / 175
Package contents–
UNSPSC40172612
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (8)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.2088
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
