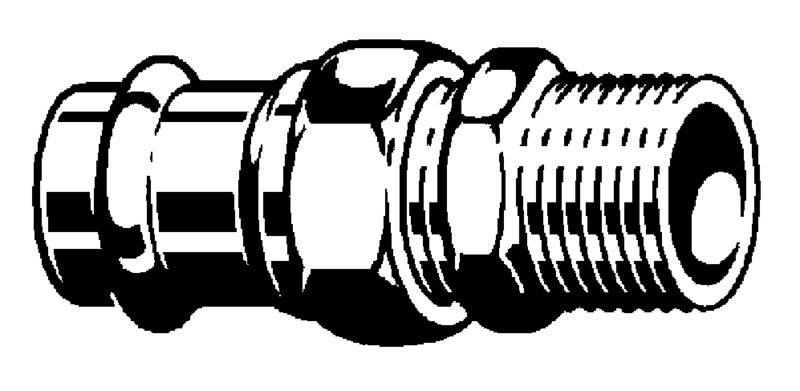

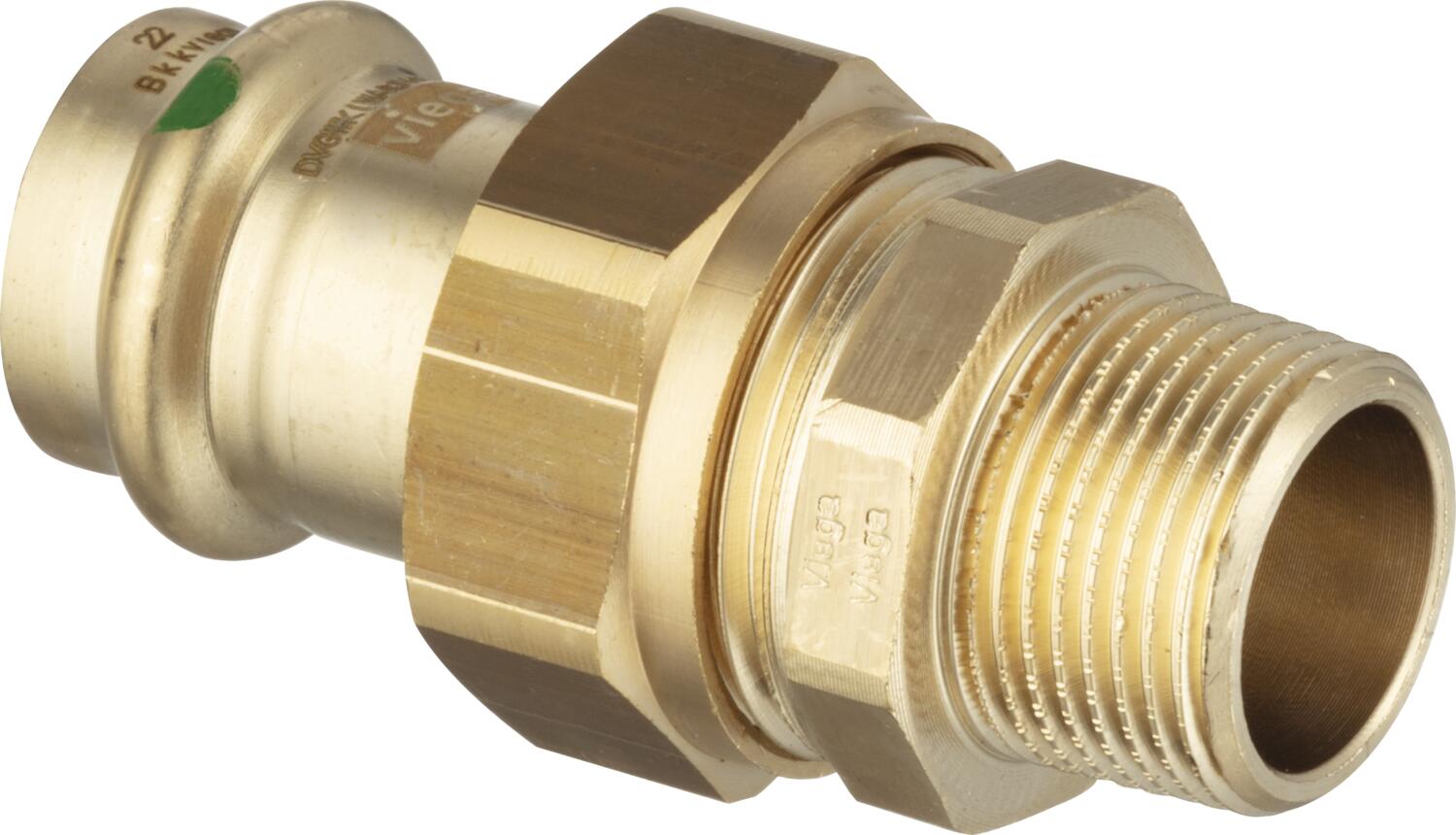

PRESS ADAPTER UNION MT Cu 18x3/4 VIEGA
Product code
1547459
V-profile system for domestic water, heating, and cooling applications; compatibility with other systems' O-rings must be verified. Suitable for EN1057 copper pipes. Fittings feature the SC-Contur property, which enables detection of leaks in non-compressed connections during pressure testing. O-ring made of EPDM, maximum temperature +110°C, pressure class PN16. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Bronze
Material quality connection 1Other
Surface protection connection 1Untreated
Surface treatment connection 1Untreated
Material connection 2Bronze
Material quality connection 2Other
Surface protection connection 2Untreated
Surface treatment connection 2Untreated
ShapeStraight
Model1-part
Eccentricno
System specificyes
Nominal diameter connection 1Other
Outer pipe diameter connection 118 mm
Connection 1Press sleeve
Product codes
SAPABS182
HPAC1547459
PLC1547459
GTIN/EAN4015211283377
Manufacturer part number283377
Vendor material number283377
Basic information
Package measurements (L x W x H)75 x 40 x 30 mm
Package volume0.09 l
Package weight0.072 kg
Base uniteach
Package units1 / 75
Package contents–
UNSPSC40172612
BrandVIEGA
VendorVIEGA CE GMBH & CO. KG
Documents (8)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.7193
GWP, uniteach
Source for GWP dataEPD
